Transformer 模型

在这个笔记本中，我们展示了一个如何将Transformer与darts一起使用的示例。如果你是darts的新手，我们建议你首先跟随 快速开始 笔记本。

# fix python path if working locally
from utils import fix_pythonpath_if_working_locally

fix_pythonpath_if_working_locally()

%load_ext autoreload
%autoreload 2
%matplotlib inline

import torch
import torch.nn as nn
import torch.optim as optim
import numpy as np
import pandas as pd
import shutil
from sklearn.preprocessing import MinMaxScaler
from tqdm import tqdm_notebook as tqdm

from tensorboardX import SummaryWriter
import matplotlib.pyplot as plt

from darts import TimeSeries
from darts.dataprocessing.transformers import Scaler
from darts.models import TransformerModel, ExponentialSmoothing
from darts.metrics import mape
from darts.utils.statistics import check_seasonality, plot_acf
from darts.datasets import AirPassengersDataset, SunspotsDataset

import warnings

warnings.filterwarnings("ignore")
import logging

logging.disable(logging.CRITICAL)

航空乘客示例

首先，我们将在‘航空乘客’数据集上测试transformer架构的性能。

# Read data:
series = AirPassengersDataset().load().astype(np.float32)

# Create training and validation sets:
train, val = series.split_after(pd.Timestamp("19590101"))

# Normalize the time series (note: we avoid fitting the transformer on the validation set)
# Change name
scaler = Scaler()
train_scaled = scaler.fit_transform(train)
val_scaled = scaler.transform(val)
series_scaled = scaler.transform(series)

"the 'air passengers' dataset has {} data points".format(len(series))

"the 'air passengers' dataset has 144 data points"

我们使用默认的超参数训练一个标准的transformer架构，只调整其中两个参数：

• d_model 是 transformer 架构的输入维度（在执行时间序列嵌入之后）。其默认值为 512。我们将值从 512 降低到 64，因为从单变量时间序列中学习如此高维的表示是困难的。

• nhead，即多头注意力机制中的头数。我们将该值从8增加到32。这意味着我们使用32个大小为*d_model*/nhead = 64/32 = 2的头来计算多头注意力。这样，我们获得了低维度的头，这些头有望适合从单变量时间序列中学习。

目标是进行一步预测。

my_model = TransformerModel(
    input_chunk_length=12,
    output_chunk_length=1,
    batch_size=32,
    n_epochs=200,
    model_name="air_transformer",
    nr_epochs_val_period=10,
    d_model=16,
    nhead=8,
    num_encoder_layers=2,
    num_decoder_layers=2,
    dim_feedforward=128,
    dropout=0.1,
    activation="relu",
    random_state=42,
    save_checkpoints=True,
    force_reset=True,
)

my_model.fit(series=train_scaled, val_series=val_scaled, verbose=True)

Training loss: 0.0046, validation loss: 0.0273, best val loss: 0.0126

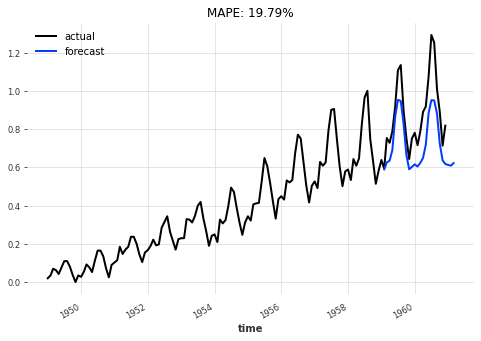

让我们看看验证集上的预测结果。

首先，通过使用“当前”模型——即，训练过程结束时的模型：

# this function evaluates a model on a given validation set for n time-steps
def eval_model(model, n, series, val_series):
    pred_series = model.predict(n=n)
    plt.figure(figsize=(8, 5))
    series.plot(label="actual")
    pred_series.plot(label="forecast")
    plt.title("MAPE: {:.2f}%".format(mape(pred_series, val_series)))
    plt.legend()


eval_model(my_model, 26, series_scaled, val_scaled)

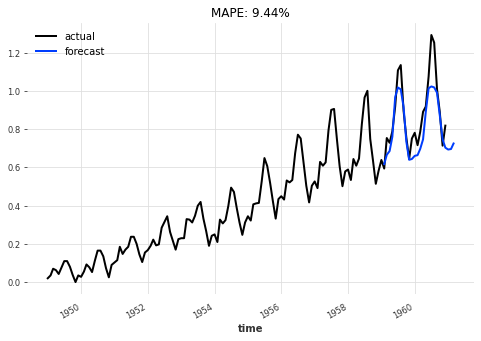

然后，根据验证损失，使用训练中获得的最佳模型：

best_model = TransformerModel.load_from_checkpoint(
    model_name="air_transformer", best=True
)
eval_model(best_model, 26, series_scaled, val_scaled)

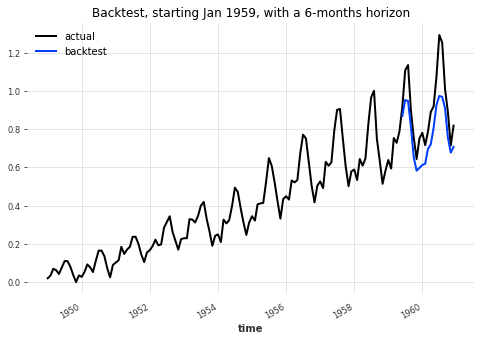

让我们对我们的 Transformer 模型进行回测，以评估其在6个月预测范围内的表现：

backtest_series = my_model.historical_forecasts(
    series=series_scaled,
    start=pd.Timestamp("19590101"),
    forecast_horizon=6,
    retrain=False,
    verbose=True,
)

plt.figure(figsize=(8, 5))
series_scaled.plot(label="actual", lw=2)
backtest_series.plot(label="backtest", lw=2)
plt.legend()
plt.title("Backtest, starting Jan 1959, with a 6-months horizon")
print(
    "MAPE: {:.2f}%".format(
        mape(
            scaler.inverse_transform(series_scaled),
            scaler.inverse_transform(backtest_series),
        )
    )
)

MAPE: 11.13%

月度太阳黑子示例

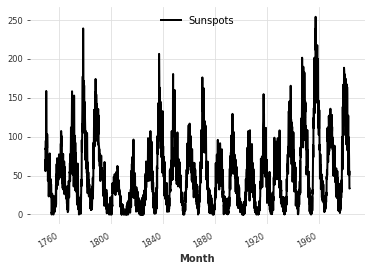

现在，让我们在更复杂的数据集‘月度太阳黑子’上测试transformer架构。

series_sunspot = SunspotsDataset().load().astype(np.float32)

series_sunspot.plot()
check_seasonality(series_sunspot, max_lag=240)

train_sp, val_sp = series_sunspot.split_after(pd.Timestamp("19401001"))

scaler_sunspot = Scaler()
train_sp_scaled = scaler_sunspot.fit_transform(train_sp)
val_sp_scaled = scaler_sunspot.transform(val_sp)
series_sp_scaled = scaler_sunspot.transform(series_sunspot)

"the 'monthly sun spots' dataset has {} data points".format(len(series_sunspot))

"the 'monthly sun spots' dataset has 2820 data points"

首先，让我们进行一步提前预测。

my_model_sp = TransformerModel(
    batch_size=32,
    input_chunk_length=125,
    output_chunk_length=36,
    n_epochs=20,
    model_name="sun_spots_transformer",
    nr_epochs_val_period=5,
    d_model=16,
    nhead=4,
    num_encoder_layers=2,
    num_decoder_layers=2,
    dim_feedforward=128,
    dropout=0.1,
    random_state=42,
    optimizer_kwargs={"lr": 1e-3},
    save_checkpoints=True,
    force_reset=True,
)

my_model_sp.fit(series=train_sp_scaled, val_series=val_sp_scaled, verbose=True)

Training loss: 0.0120, validation loss: 0.0261, best val loss: 0.0261

# this function is used to backtest the model at a forecasting horizon of three years (36 months)
def backtest(testing_model):
    # Compute the backtest predictions with the two models
    pred_series = testing_model.historical_forecasts(
        series=series_sp_scaled,
        start=pd.Timestamp("19401001"),
        forecast_horizon=36,
        stride=10,
        retrain=False,
        verbose=True,
    )

    pred_series_ets = ExponentialSmoothing().historical_forecasts(
        series=series_sp_scaled,
        start=pd.Timestamp("19401001"),
        forecast_horizon=36,
        stride=10,
        retrain=True,
        verbose=True,
    )
    val_sp_scaled.plot(label="actual")
    pred_series.plot(label="our Transformer")
    pred_series_ets.plot(label="ETS")
    plt.legend()
    print("Transformer MAPE:", mape(pred_series, val_sp_scaled))
    print("ETS MAPE:", mape(pred_series_ets, val_sp_scaled))


best_model_sp = TransformerModel.load_from_checkpoint(
    model_name="sun_spots_transformer", best=True
)
backtest(best_model_sp)
