什么是Featuretools？

Featuretools 是一个用于执行自动特征工程的框架。它擅长将时间序列和关系型数据集转换为机器学习的特征矩阵。## 5分钟快速入门以下是使用深度特征合成（DFS）执行自动特征工程的示例。在这个示例中，我们将DFS应用于一个包含时间戳客户交易的多表数据集。

import featuretools as ft

2024-10-11 14:50:13,845 featuretools - WARNING    While loading primitives via "premium_primitives" entry point, ignored primitive "DiversityScore" from "premium_primitives.diversity_score" because a primitive with that name already exists in "nlp_primitives.diversity_score"
2024-10-11 14:50:13,845 featuretools - WARNING    While loading primitives via "premium_primitives" entry point, ignored primitive "LSA" from "premium_primitives.lsa" because a primitive with that name already exists in "nlp_primitives.lsa"
2024-10-11 14:50:13,846 featuretools - WARNING    While loading primitives via "premium_primitives" entry point, ignored primitive "MeanCharactersPerSentence" from "premium_primitives.mean_characters_per_sentence" because a primitive with that name already exists in "nlp_primitives.mean_characters_per_sentence"
2024-10-11 14:50:13,846 featuretools - WARNING    While loading primitives via "premium_primitives" entry point, ignored primitive "NumberOfSentences" from "premium_primitives.number_of_sentences" because a primitive with that name already exists in "nlp_primitives.number_of_sentences"
2024-10-11 14:50:13,846 featuretools - WARNING    While loading primitives via "premium_primitives" entry point, ignored primitive "PartOfSpeechCount" from "premium_primitives.part_of_speech_count" because a primitive with that name already exists in "nlp_primitives.part_of_speech_count"
2024-10-11 14:50:13,846 featuretools - WARNING    While loading primitives via "premium_primitives" entry point, ignored primitive "PolarityScore" from "premium_primitives.polarity_score" because a primitive with that name already exists in "nlp_primitives.polarity_score"
2024-10-11 14:50:13,846 featuretools - WARNING    While loading primitives via "premium_primitives" entry point, ignored primitive "StopwordCount" from "premium_primitives.stopword_count" because a primitive with that name already exists in "nlp_primitives.stopword_count"
2024-10-11 14:50:13,860 featuretools - WARNING    Featuretools failed to load plugin tsfresh from library featuretools_tsfresh_primitives.__init__. For a full stack trace, set logging to debug.

加载模拟数据

data = ft.demo.load_mock_customer()

准备数据

在这个玩具数据集中，有3个数据框。 - customers: 有会话的唯一客户 - sessions: 唯一会话和相关属性 - transactions: 该会话中事件的列表

customers_df = data["customers"]
customers_df

	customer_id	zip_code	join_date	birthday
0	1	60091	2011-04-17 10:48:33	1994-07-18
1	2	13244	2012-04-15 23:31:04	1986-08-18
2	3	13244	2011-08-13 15:42:34	2003-11-21
3	4	60091	2011-04-08 20:08:14	2006-08-15
4	5	60091	2010-07-17 05:27:50	1984-07-28

sessions_df = data["sessions"]
sessions_df.sample(5)

	session_id	customer_id	device	session_start
13	14	1	tablet	2014-01-01 03:28:00
6	7	3	tablet	2014-01-01 01:39:40
1	2	5	mobile	2014-01-01 00:17:20
28	29	1	mobile	2014-01-01 07:10:05
24	25	3	desktop	2014-01-01 05:59:40

transactions_df = data["transactions"]
transactions_df.sample(5)

	transaction_id	session_id	transaction_time	product_id	amount
74	232	5	2014-01-01 01:20:10	1	139.20
231	27	17	2014-01-01 04:10:15	2	90.79
434	36	31	2014-01-01 07:50:10	3	62.35
420	56	30	2014-01-01 07:35:00	3	72.70
54	444	4	2014-01-01 00:58:30	4	43.59

首先，我们指定一个包含数据集中所有DataFrame的字典。如果DataFrame存在时间索引列，那么将传入该索引列和时间索引列。

dataframes = {
    "customers": (customers_df, "customer_id"),
    "sessions": (sessions_df, "session_id", "session_start"),
    "transactions": (transactions_df, "transaction_id", "transaction_time"),
}

第二步，我们指定DataFrame之间的关系。当两个DataFrame之间存在一对多的关系时，我们将“一” DataFrame称为“父” DataFrame。父子关系的定义如下： (父DataFrame, 父列, 子DataFrame, 子列)在这个数据集中，我们有两个关系。

relationships = [
    ("sessions", "session_id", "transactions", "session_id"),
    ("customers", "customer_id", "sessions", "customer_id"),
]

Note

要管理设置 DataFrame 和关系，我们建议使用 EntitySet 类，该类提供了方便的 API 来管理这样的数据。有关更多信息，请参见 用EntitySets表示数据。

运行深度特征合成

DFS的最小输入是一个DataFrame字典、一个关系列表，以及我们想要计算特征的目标DataFrame的名称。DFS的输出是一个特征矩阵和相应的特征定义列表。让我们首先为数据中的每个客户创建一个特征矩阵。

feature_matrix_customers, features_defs = ft.dfs(
    dataframes=dataframes,
    relationships=relationships,
    target_dataframe_name="customers",
)
feature_matrix_customers

/Users/code/fin_tool/github/featuretools/venv/lib/python3.11/site-packages/woodwork/type_sys/utils.py:40: UserWarning: Could not infer format, so each element will be parsed individually, falling back to `dateutil`. To ensure parsing is consistent and as-expected, please specify a format.
  pd.to_datetime(
/Users/code/fin_tool/github/featuretools/venv/lib/python3.11/site-packages/woodwork/type_sys/utils.py:40: UserWarning: Could not infer format, so each element will be parsed individually, falling back to `dateutil`. To ensure parsing is consistent and as-expected, please specify a format.
  pd.to_datetime(
/Users/code/fin_tool/github/featuretools/venv/lib/python3.11/site-packages/woodwork/type_sys/utils.py:40: UserWarning: Could not infer format, so each element will be parsed individually, falling back to `dateutil`. To ensure parsing is consistent and as-expected, please specify a format.
  pd.to_datetime(
/Users/code/fin_tool/github/featuretools/venv/lib/python3.11/site-packages/woodwork/type_sys/utils.py:40: UserWarning: Could not infer format, so each element will be parsed individually, falling back to `dateutil`. To ensure parsing is consistent and as-expected, please specify a format.
  pd.to_datetime(
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function max at 0x10a71ff60> is currently using SeriesGroupBy.max. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "max" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function min at 0x10a7280e0> is currently using SeriesGroupBy.min. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "min" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function sum at 0x10a71f880> is currently using SeriesGroupBy.sum. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "sum" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function mean at 0x10a7289a0> is currently using SeriesGroupBy.mean. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "mean" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function std at 0x10a728ae0> is currently using SeriesGroupBy.std. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "std" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function mean at 0x10a7289a0> is currently using SeriesGroupBy.mean. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "mean" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function std at 0x10a728ae0> is currently using SeriesGroupBy.std. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "std" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function max at 0x10a71ff60> is currently using SeriesGroupBy.max. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "max" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function min at 0x10a7280e0> is currently using SeriesGroupBy.min. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "min" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function sum at 0x10a71f880> is currently using SeriesGroupBy.sum. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "sum" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function min at 0x10a7280e0> is currently using SeriesGroupBy.min. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "min" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function std at 0x10a728ae0> is currently using SeriesGroupBy.std. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "std" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function max at 0x10a71ff60> is currently using SeriesGroupBy.max. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "max" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function mean at 0x10a7289a0> is currently using SeriesGroupBy.mean. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "mean" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function sum at 0x10a71f880> is currently using SeriesGroupBy.sum. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "sum" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function min at 0x10a7280e0> is currently using SeriesGroupBy.min. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "min" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function std at 0x10a728ae0> is currently using SeriesGroupBy.std. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "std" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function sum at 0x10a71f880> is currently using SeriesGroupBy.sum. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "sum" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function mean at 0x10a7289a0> is currently using SeriesGroupBy.mean. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "mean" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function max at 0x10a71ff60> is currently using SeriesGroupBy.max. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "max" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function min at 0x10a7280e0> is currently using SeriesGroupBy.min. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "min" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function sum at 0x10a71f880> is currently using SeriesGroupBy.sum. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "sum" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function std at 0x10a728ae0> is currently using SeriesGroupBy.std. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "std" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function mean at 0x10a7289a0> is currently using SeriesGroupBy.mean. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "mean" instead.
  ).agg(to_agg)

	zip_code	COUNT(sessions)	MODE(sessions.device)	NUM_UNIQUE(sessions.device)	COUNT(transactions)	MAX(transactions.amount)	MEAN(transactions.amount)	MIN(transactions.amount)	MODE(transactions.product_id)	NUM_UNIQUE(transactions.product_id)	...	STD(sessions.SKEW(transactions.amount))	STD(sessions.SUM(transactions.amount))	SUM(sessions.MAX(transactions.amount))	SUM(sessions.MEAN(transactions.amount))	SUM(sessions.MIN(transactions.amount))	SUM(sessions.NUM_UNIQUE(transactions.product_id))	SUM(sessions.SKEW(transactions.amount))	SUM(sessions.STD(transactions.amount))	MODE(transactions.sessions.device)	NUM_UNIQUE(transactions.sessions.device)
customer_id
1	60091	8	mobile	3	126	139.43	71.631905	5.81	4	5	...	0.589386	279.510713	1057.97	582.193117	78.59	40.0	-0.476122	312.745952	mobile	3
2	13244	7	desktop	3	93	146.81	77.422366	8.73	4	5	...	0.509798	251.609234	931.63	548.905851	154.60	35.0	-0.277640	258.700528	desktop	3
3	13244	6	desktop	3	93	149.15	67.060430	5.89	1	5	...	0.429374	219.021420	847.63	405.237462	66.21	29.0	2.286086	257.299895	desktop	3
4	60091	8	mobile	3	109	149.95	80.070459	5.73	2	5	...	0.387884	235.992478	1157.99	649.657515	131.51	37.0	0.002764	356.125829	mobile	3
5	60091	6	mobile	3	79	149.02	80.375443	7.55	5	5	...	0.415426	402.775486	839.76	472.231119	86.49	30.0	0.014384	259.873954	mobile	3

5 rows × 75 columns

我们现在有数十种新功能来描述客户的行为。#### 更改目标DataFrameDFS如此强大的原因之一是它可以为我们实体集中的任何DataFrame创建特征矩阵。例如，如果我们想要为会话构建特征。

feature_matrix_sessions, features_defs = ft.dfs(
    dataframes=dataframes, relationships=relationships, target_dataframe_name="sessions"
)
feature_matrix_sessions.head(5)

/Users/code/fin_tool/github/featuretools/venv/lib/python3.11/site-packages/woodwork/type_sys/utils.py:40: UserWarning: Could not infer format, so each element will be parsed individually, falling back to `dateutil`. To ensure parsing is consistent and as-expected, please specify a format.
  pd.to_datetime(
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function max at 0x10a71ff60> is currently using SeriesGroupBy.max. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "max" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function min at 0x10a7280e0> is currently using SeriesGroupBy.min. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "min" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function std at 0x10a728ae0> is currently using SeriesGroupBy.std. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "std" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function mean at 0x10a7289a0> is currently using SeriesGroupBy.mean. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "mean" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function sum at 0x10a71f880> is currently using SeriesGroupBy.sum. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "sum" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function max at 0x10a71ff60> is currently using SeriesGroupBy.max. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "max" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function min at 0x10a7280e0> is currently using SeriesGroupBy.min. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "min" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function sum at 0x10a71f880> is currently using SeriesGroupBy.sum. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "sum" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function mean at 0x10a7289a0> is currently using SeriesGroupBy.mean. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "mean" instead.
  ).agg(to_agg)
/Users/code/fin_tool/github/featuretools/featuretools/computational_backends/feature_set_calculator.py:756: FutureWarning: The provided callable <function std at 0x10a728ae0> is currently using SeriesGroupBy.std. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "std" instead.
  ).agg(to_agg)

	customer_id	device	COUNT(transactions)	MAX(transactions.amount)	MEAN(transactions.amount)	MIN(transactions.amount)	MODE(transactions.product_id)	NUM_UNIQUE(transactions.product_id)	SKEW(transactions.amount)	STD(transactions.amount)	...	customers.STD(transactions.amount)	customers.SUM(transactions.amount)	customers.DAY(birthday)	customers.DAY(join_date)	customers.MONTH(birthday)	customers.MONTH(join_date)	customers.WEEKDAY(birthday)	customers.WEEKDAY(join_date)	customers.YEAR(birthday)	customers.YEAR(join_date)
session_id
1	2	desktop	16	141.66	76.813125	20.91	3	5	0.295458	41.600976	...	37.705178	7200.28	18	15	8	4	0	6	1986	2012
2	5	mobile	10	135.25	74.696000	9.32	5	5	-0.160550	45.893591	...	44.095630	6349.66	28	17	7	7	5	5	1984	2010
3	4	mobile	15	147.73	88.600000	8.70	1	5	-0.324012	46.240016	...	45.068765	8727.68	15	8	8	4	1	4	2006	2011
4	1	mobile	25	129.00	64.557200	6.29	5	5	0.234349	40.187205	...	40.442059	9025.62	18	17	7	4	0	6	1994	2011
5	4	mobile	11	139.20	70.638182	7.43	5	5	0.336381	48.918663	...	45.068765	8727.68	15	8	8	4	1	4	2006	2011

5 rows × 44 columns

理解特征输出

一般来说，Featuretools 通过特征名称引用生成的特征。为了使特征更易于理解，Featuretools 提供了两个额外的工具，featuretools.graph_feature() 和 featuretools.describe_feature()，帮助解释特征是什么以及 Featuretools 生成它的步骤。让我们看一个示例特征：

feature = features_defs[18]
feature

<Feature: MODE(transactions.WEEKDAY(transaction_time))>

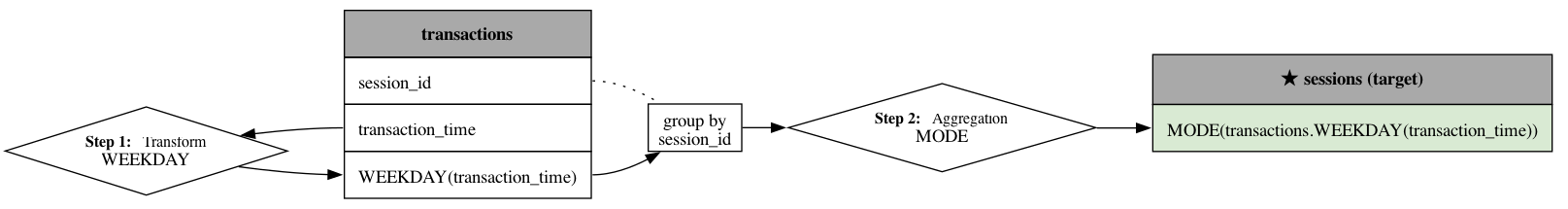

特征谱系图

特征谱系图通过可视化方式展示特征生成的过程。从基础数据开始，逐步展示应用的原语和生成的中间特征，以创建最终特征。

ft.graph_feature(feature)

特征描述

Featuretools 还可以自动生成特征的英文句子描述。特征描述有助于解释特征的含义，并且可以通过包含手动定义的自定义定义来进一步改进。有关如何自定义自动生成的特征描述的更多详细信息，请参阅 :doc:/guides/feature_descriptions。

ft.describe_feature(feature)

'The most frequently occurring value of the day of the week of the "transaction_time" of all instances of "transactions" for each "session_id" in "sessions".'

接下来做什么？

• 学习关于使用实体集表示数据

• 使用深度特征合成进行自动特征工程

• 探索基于真实用例的可运行演示

• 找不到你要找的内容？请寻求帮助
