使用VideoDecoder解码视频

在这个例子中，我们将学习如何使用 VideoDecoder 类来解码视频。

首先，一些样板代码：我们将从网上下载一个视频，并定义一个绘图工具。你可以忽略这部分，直接跳到创建解码器。

from typing import Optional
import torch
import requests


# Video source: https://www.pexels.com/video/dog-eating-854132/
# License: CC0. Author: Coverr.
url = "https://videos.pexels.com/video-files/854132/854132-sd_640_360_25fps.mp4"
response = requests.get(url, headers={"User-Agent": ""})
if response.status_code != 200:
    raise RuntimeError(f"Failed to download video. {response.status_code = }.")

raw_video_bytes = response.content


def plot(frames: torch.Tensor, title : Optional[str] = None):
    try:
        from torchvision.utils import make_grid
        from torchvision.transforms.v2.functional import to_pil_image
        import matplotlib.pyplot as plt
    except ImportError:
        print("Cannot plot, please run `pip install torchvision matplotlib`")
        return

    plt.rcParams["savefig.bbox"] = 'tight'
    fig, ax = plt.subplots()
    ax.imshow(to_pil_image(make_grid(frames)))
    ax.set(xticklabels=[], yticklabels=[], xticks=[], yticks=[])
    if title is not None:
        ax.set_title(title)
    plt.tight_layout()

创建解码器

我们现在可以从原始（编码的）视频字节创建一个解码器。当然，你可以使用本地视频文件并将路径作为输入，而不是下载视频。

from torchcodec.decoders import VideoDecoder

# You can also pass a path to a local file!
decoder = VideoDecoder(raw_video_bytes)

尚未被解码器解码，但我们已通过metadata属性访问到一些元数据，该属性是一个VideoStreamMetadata对象。

print(decoder.metadata)

VideoStreamMetadata:
  num_frames: 345
  duration_seconds: 13.8
  average_fps: 25.0
  duration_seconds_from_header: 13.8
  bit_rate: 505790.0
  num_frames_from_header: 345
  num_frames_from_content: 345
  begin_stream_seconds: 0.0
  end_stream_seconds: 13.8
  codec: h264
  width: 640
  height: 360
  average_fps_from_header: 25.0
  stream_index: 0

通过索引解码器解码帧

first_frame = decoder[0]  # using a single int index
every_twenty_frame = decoder[0 : -1 : 20]  # using slices

print(f"{first_frame.shape = }")
print(f"{first_frame.dtype = }")
print(f"{every_twenty_frame.shape = }")
print(f"{every_twenty_frame.dtype = }")

first_frame.shape = torch.Size([3, 360, 640])
first_frame.dtype = torch.uint8
every_twenty_frame.shape = torch.Size([18, 3, 360, 640])
every_twenty_frame.dtype = torch.uint8

索引解码器返回的帧为torch.Tensor对象。 默认情况下，帧的形状为(N, C, H, W)，其中N是批次大小，C是通道数，H是高度，W是帧的宽度。批次维度N仅在我们解码多个帧时存在。维度顺序可以通过VideoDecoder的dimension_order参数更改为N, H, W, C。帧始终为torch.uint8数据类型。

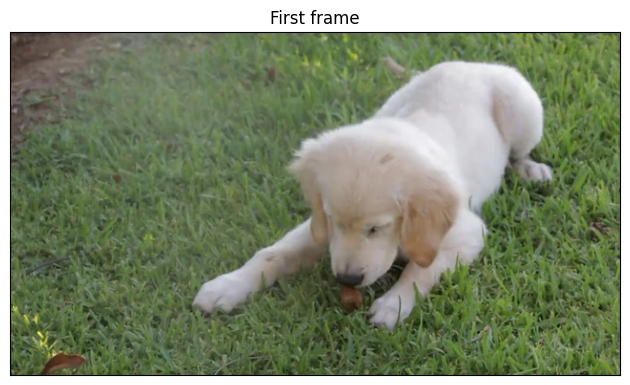

plot(first_frame, "First frame")

plot(every_twenty_frame, "Every 20 frame")

遍历帧

解码器是一个普通的可迭代对象，可以像这样进行迭代：

for frame in decoder:
    assert (
        isinstance(frame, torch.Tensor)
        and frame.shape == (3, decoder.metadata.height, decoder.metadata.width)
    )

检索帧的pts和持续时间

索引解码器返回纯torch.Tensor对象。有时，检索有关帧的附加信息（例如它们的pts（演示时间戳）和它们的持续时间）可能很有用。这可以通过使用get_frame_at()和get_frames_at()方法来实现，这些方法将分别返回Frame和FrameBatch对象。

last_frame = decoder.get_frame_at(len(decoder) - 1)
print(f"{type(last_frame) = }")
print(last_frame)

type(last_frame) = <class 'torchcodec._frame.Frame'>
Frame:
  data (shape): torch.Size([3, 360, 640])
  pts_seconds: 13.76
  duration_seconds: 0.04

other_frames = decoder.get_frames_at([10, 0, 50])
print(f"{type(other_frames) = }")
print(other_frames)

type(other_frames) = <class 'torchcodec._frame.FrameBatch'>
FrameBatch:
  data (shape): torch.Size([3, 3, 360, 640])
  pts_seconds: tensor([0.4000, 0.0000, 2.0000], dtype=torch.float64)
  duration_seconds: tensor([0.0400, 0.0400, 0.0400], dtype=torch.float64)

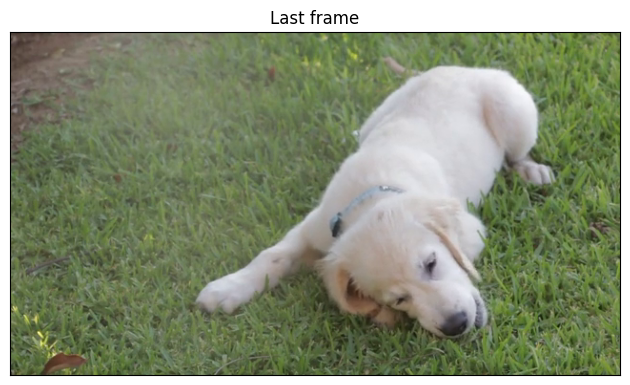

plot(last_frame.data, "Last frame")

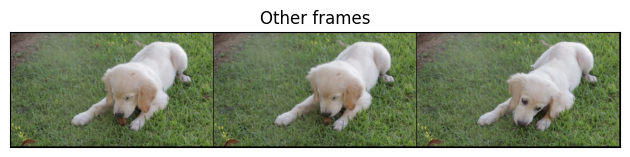

plot(other_frames.data, "Other frames")

•
•

无论是Frame还是 FrameBatch都有一个data字段，其中包含 解码后的张量数据。它们还有pts_seconds和 duration_seconds字段，这些字段对于 Frame是单个整数，而对于 FrameBatch则是1维的torch.Tensor （批次中每帧一个值）。

使用基于时间的索引

到目前为止，我们已经根据索引检索了帧。我们还可以根据它们播放的时间来检索帧，使用get_frame_played_at()和get_frames_played_at()，它们分别返回Frame和FrameBatch。

frame_at_2_seconds = decoder.get_frame_played_at(seconds=2)
print(f"{type(frame_at_2_seconds) = }")
print(frame_at_2_seconds)

type(frame_at_2_seconds) = <class 'torchcodec._frame.Frame'>
Frame:
  data (shape): torch.Size([3, 360, 640])
  pts_seconds: 2.0
  duration_seconds: 0.04

other_frames = decoder.get_frames_played_at(seconds=[10.1, 0.3, 5])
print(f"{type(other_frames) = }")
print(other_frames)

type(other_frames) = <class 'torchcodec._frame.FrameBatch'>
FrameBatch:
  data (shape): torch.Size([3, 3, 360, 640])
  pts_seconds: tensor([10.0800,  0.2800,  5.0000], dtype=torch.float64)
  duration_seconds: tensor([0.0400, 0.0400, 0.0400], dtype=torch.float64)

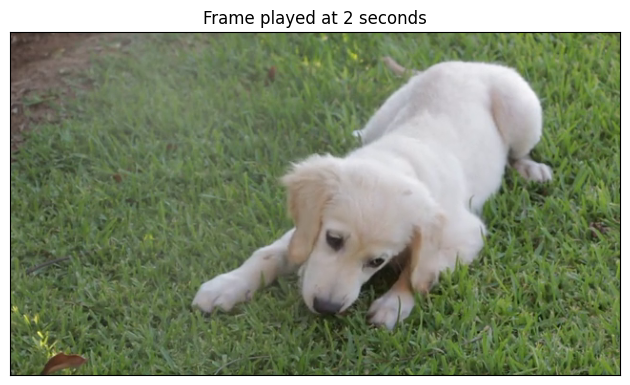

plot(frame_at_2_seconds.data, "Frame played at 2 seconds")

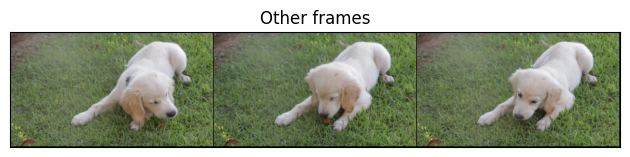

plot(other_frames.data, "Other frames")

•
•
