DGL中的Tree-LSTM
作者: Zihao Ye, Qipeng Guo, Minjie Wang, Jake Zhao, Zheng Zhang
警告
The tutorial aims at gaining insights into the paper, with code as a mean of explanation. The implementation thus is NOT optimized for running efficiency. For recommended implementation, please refer to the official examples.
import os
在本教程中，您将学习如何使用Tree-LSTM网络进行情感分析。 Tree-LSTM是长短期记忆（LSTM）网络在树形网络拓扑结构中的一种推广。
Tree-LSTM结构最初由Kai等人在2015年ACL的一篇论文中提出：Improved Semantic Representations From Tree-Structured Long Short-Term Memory Networks。核心思想是通过将链式结构的LSTM扩展为树形结构的LSTM，为语言任务引入句法信息。依赖树和成分树技术被用来获取一个“潜在树”。
训练Tree-LSTMs的挑战在于批处理——这是机器学习中加速优化的标准技术。然而，由于树通常具有不同的形状，并行化并不简单。DGL提供了一种替代方案。将所有树汇集到一个图中，然后根据每棵树的结构引导消息传递。
任务和数据集
这里的步骤使用了
Stanford Sentiment Treebank 在
dgl.data 中。该数据集提供了细粒度的、树级的情感
注释。有五个类别：非常负面、负面、中性、正面和
非常正面，这些类别表示当前子树中的情感。在成分树中，非叶子
节点不包含单词，因此使用一个特殊的
PAD_WORD 标记来表示它们。在训练和推理过程中，
它们的嵌入将被掩码为全零。
该图展示了SST数据集的一个样本，这是一个带有情感标签的选区解析树。为了加快速度，构建一个包含五个句子的小集合并查看第一个。
from collections import namedtuple
os.environ["DGLBACKEND"] = "pytorch"
import dgl
from dgl.data.tree import SSTDataset
SSTBatch = namedtuple("SSTBatch", ["graph", "mask", "wordid", "label"])
# Each sample in the dataset is a constituency tree. The leaf nodes
# represent words. The word is an int value stored in the "x" field.
# The non-leaf nodes have a special word PAD_WORD. The sentiment
# label is stored in the "y" feature field.
trainset = SSTDataset(mode="tiny") # the "tiny" set has only five trees
tiny_sst = [tr for tr in trainset]
num_vocabs = trainset.vocab_size
num_classes = trainset.num_classes
vocab = trainset.vocab # vocabulary dict: key -> id
inv_vocab = {
v: k for k, v in vocab.items()
} # inverted vocabulary dict: id -> word
a_tree = tiny_sst[0]
for token in a_tree.ndata["x"].tolist():
if token != trainset.PAD_WORD:
print(inv_vocab[token], end=" ")
import matplotlib.pyplot as plt
the rock is destined to be the 21st century 's new `` conan '' and that he 's going to make a splash even greater than arnold schwarzenegger , jean-claud van damme or steven segal .
步骤1: 批处理

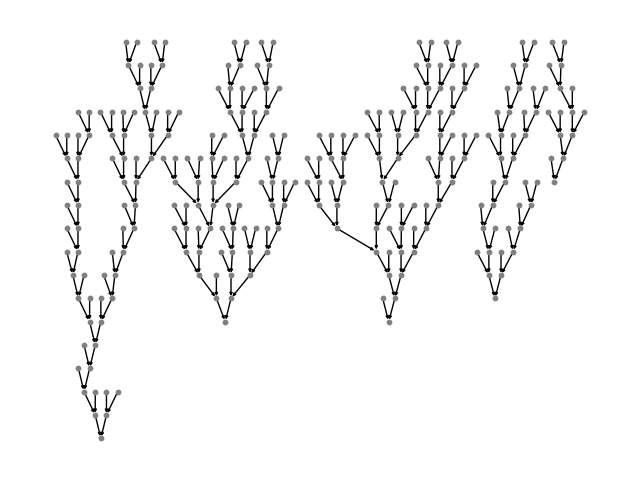

将所有树添加到一个图中，使用
batch() API。
你可以阅读更多关于batch()的定义，或者直接跳到下一步：
.. 注意:
**Definition**: :func:`~dgl.batch` unions a list of :math:`B`
:class:`~dgl.DGLGraph`\ s and returns a :class:`~dgl.DGLGraph` of batch
size :math:`B`.
- The union includes all the nodes,
edges, and their features. The order of nodes, edges, and features are
preserved.
- Given that you have :math:`V_i` nodes for graph
:math:`\mathcal{G}_i`, the node ID :math:`j` in graph
:math:`\mathcal{G}_i` correspond to node ID
:math:`j + \sum_{k=1}^{i-1} V_k` in the batched graph.
- Therefore, performing feature transformation and message passing on
the batched graph is equivalent to doing those
on all ``DGLGraph`` constituents in parallel.
- Duplicate references to the same graph are
treated as deep copies; the nodes, edges, and features are duplicated,
and mutation on one reference does not affect the other.
- The batched graph keeps track of the meta
information of the constituents so it can be
:func:`~dgl.batched_graph.unbatch`\ ed to list of ``DGLGraph``\ s.
步骤2：使用消息传递API的Tree-LSTM单元
研究人员提出了两种类型的Tree-LSTM：Child-Sum Tree-LSTM和\(N\)-ary Tree-LSTM。在本教程中，您将专注于将Binary Tree-LSTM应用于二值化的成分树。这种应用也被称为Constituency Tree-LSTM。使用PyTorch作为后端框架来设置网络。
在N元树-LSTM中，节点\(j\)处的每个单元维护一个隐藏表示\(h_j\)和一个记忆单元\(c_j\)。单元\(j\)接收输入向量\(x_j\)和子单元的隐藏表示：\(h_{jl}, 1\leq l\leq N\)作为输入，然后通过以下方式更新其新的隐藏表示\(h_j\)和记忆单元\(c_j\)：
\[\begin{split}i_j & = & \sigma\left(W^{(i)}x_j + \sum_{l=1}^{N}U^{(i)}_l h_{jl} + b^{(i)}\right), & (1)\\
f_{jk} & = & \sigma\left(W^{(f)}x_j + \sum_{l=1}^{N}U_{kl}^{(f)} h_{jl} + b^{(f)} \right), & (2)\\
o_j & = & \sigma\left(W^{(o)}x_j + \sum_{l=1}^{N}U_{l}^{(o)} h_{jl} + b^{(o)} \right), & (3) \\
u_j & = & \textrm{tanh}\left(W^{(u)}x_j + \sum_{l=1}^{N} U_l^{(u)}h_{jl} + b^{(u)} \right), & (4)\\
c_j & = & i_j \odot u_j + \sum_{l=1}^{N} f_{jl} \odot c_{jl}, &(5) \\
h_j & = & o_j \cdot \textrm{tanh}(c_j), &(6) \\\end{split}\]
它可以分解为三个阶段：message_func、
reduce_func 和 apply_node_func。
注意
apply_node_func 是一个之前未介绍过的新节点用户定义函数。在
apply_node_func 中，用户指定如何处理节点特征，
而不考虑边特征和消息。在 Tree-LSTM 的情况下，
apply_node_func 是必须的，因为存在（叶子）节点具有
\(0\) 条入边，这些节点不会通过
reduce_func 进行更新。
import torch as th
import torch.nn as nn
class TreeLSTMCell(nn.Module):
def __init__(self, x_size, h_size):
super(TreeLSTMCell, self).__init__()
self.W_iou = nn.Linear(x_size, 3 * h_size, bias=False)
self.U_iou = nn.Linear(2 * h_size, 3 * h_size, bias=False)
self.b_iou = nn.Parameter(th.zeros(1, 3 * h_size))
self.U_f = nn.Linear(2 * h_size, 2 * h_size)
def message_func(self, edges):
return {"h": edges.src["h"], "c": edges.src["c"]}
def reduce_func(self, nodes):
# concatenate h_jl for equation (1), (2), (3), (4)
h_cat = nodes.mailbox["h"].view(nodes.mailbox["h"].size(0), -1)
# equation (2)
f = th.sigmoid(self.U_f(h_cat)).view(*nodes.mailbox["h"].size())
# second term of equation (5)
c = th.sum(f * nodes.mailbox["c"], 1)
return {"iou": self.U_iou(h_cat), "c": c}
def apply_node_func(self, nodes):
# equation (1), (3), (4)
iou = nodes.data["iou"] + self.b_iou
i, o, u = th.chunk(iou, 3, 1)
i, o, u = th.sigmoid(i), th.sigmoid(o), th.tanh(u)
# equation (5)
c = i * u + nodes.data["c"]
# equation (6)
h = o * th.tanh(c)
return {"h": h, "c": c}
步骤3：定义遍历
在定义了消息传递函数之后，诱导正确的顺序来触发它们。这与GCN等模型有显著不同，在GCN中，所有节点同时从上游节点拉取消息。
在Tree-LSTM的情况下，消息从树的叶子开始，向上传播/处理，直到它们到达根部。可视化如下：
DGL 定义了一个生成器来执行拓扑排序，每个项目都是一个张量，记录从底层到根节点的节点。通过检查以下内容的差异，可以欣赏并行化的程度：
# to heterogenous graph
trv_a_tree = dgl.graph(a_tree.edges())
print("Traversing one tree:")
print(dgl.topological_nodes_generator(trv_a_tree))
# to heterogenous graph
trv_graph = dgl.graph(graph.edges())
print("Traversing many trees at the same time:")
print(dgl.topological_nodes_generator(trv_graph))
Traversing one tree:
(tensor([ 2, 3, 6, 8, 13, 15, 17, 19, 22, 23, 25, 27, 28, 29, 30, 32, 34, 36,
38, 40, 43, 46, 47, 49, 50, 52, 58, 59, 60, 62, 64, 65, 66, 68, 69, 70]), tensor([ 1, 21, 26, 45, 48, 57, 63, 67]), tensor([24, 44, 56, 61]), tensor([20, 42, 55]), tensor([18, 54]), tensor([16, 53]), tensor([14, 51]), tensor([12, 41]), tensor([11, 39]), tensor([10, 37]), tensor([35]), tensor([33]), tensor([31]), tensor([9]), tensor([7]), tensor([5]), tensor([4]), tensor([0]))
Traversing many trees at the same time:
(tensor([ 2, 3, 6, 8, 13, 15, 17, 19, 22, 23, 25, 27, 28, 29,
30, 32, 34, 36, 38, 40, 43, 46, 47, 49, 50, 52, 58, 59,
60, 62, 64, 65, 66, 68, 69, 70, 74, 76, 78, 79, 82, 83,
85, 88, 90, 92, 93, 95, 96, 100, 102, 103, 105, 109, 110, 112,
113, 117, 118, 119, 121, 125, 127, 129, 130, 132, 133, 135, 138, 140,
141, 142, 143, 150, 152, 153, 155, 158, 159, 161, 162, 164, 168, 170,
171, 174, 175, 178, 179, 182, 184, 185, 187, 189, 190, 191, 192, 195,
197, 198, 200, 202, 205, 208, 210, 212, 213, 214, 216, 218, 219, 220,
223, 225, 227, 229, 230, 232, 235, 237, 240, 242, 244, 246, 248, 249,
251, 253, 255, 256, 257, 259, 262, 263, 267, 269, 270, 271, 272]), tensor([ 1, 21, 26, 45, 48, 57, 63, 67, 77, 81, 91, 94, 101, 108,
111, 116, 128, 131, 139, 151, 157, 160, 169, 173, 177, 183, 188, 196,
211, 217, 228, 247, 254, 261, 268]), tensor([ 24, 44, 56, 61, 75, 89, 99, 107, 115, 126, 137, 149, 156, 167,
181, 186, 194, 209, 215, 226, 245, 252, 266]), tensor([ 20, 42, 55, 73, 87, 124, 136, 154, 180, 207, 224, 243, 250, 265]), tensor([ 18, 54, 86, 123, 134, 148, 176, 206, 222, 241, 264]), tensor([ 16, 53, 84, 122, 172, 204, 239, 260]), tensor([ 14, 51, 80, 120, 166, 203, 238, 258]), tensor([ 12, 41, 72, 114, 165, 201, 236]), tensor([ 11, 39, 106, 163, 199, 234]), tensor([ 10, 37, 104, 147, 193, 233]), tensor([ 35, 98, 146, 231]), tensor([ 33, 97, 145, 221]), tensor([ 31, 71, 144]), tensor([9]), tensor([7]), tensor([5]), tensor([4]), tensor([0]))
调用 prop_nodes() 来触发消息传递：
import dgl.function as fn
import torch as th
trv_graph.ndata["a"] = th.ones(graph.num_nodes(), 1)
traversal_order = dgl.topological_nodes_generator(trv_graph)
trv_graph.prop_nodes(
traversal_order,
message_func=fn.copy_u("a", "a"),
reduce_func=fn.sum("a", "a"),
)
# the following is a syntax sugar that does the same
# dgl.prop_nodes_topo(graph)
注意
在调用prop_nodes()之前，请预先指定message_func和reduce_func。在示例中，您可以看到内置的从源复制和求和函数作为消息函数，以及一个用于演示的归约函数。
整合在一起
这是指定Tree-LSTM类的完整代码。
class TreeLSTM(nn.Module):
def __init__(
self,
num_vocabs,
x_size,
h_size,
num_classes,
dropout,
pretrained_emb=None,
):
super(TreeLSTM, self).__init__()
self.x_size = x_size
self.embedding = nn.Embedding(num_vocabs, x_size)
if pretrained_emb is not None:
print("Using glove")
self.embedding.weight.data.copy_(pretrained_emb)
self.embedding.weight.requires_grad = True
self.dropout = nn.Dropout(dropout)
self.linear = nn.Linear(h_size, num_classes)
self.cell = TreeLSTMCell(x_size, h_size)
def forward(self, batch, h, c):
"""Compute tree-lstm prediction given a batch.
Parameters
----------
batch : dgl.data.SSTBatch
The data batch.
h : Tensor
Initial hidden state.
c : Tensor
Initial cell state.
Returns
-------
logits : Tensor
The prediction of each node.
"""
g = batch.graph
# to heterogenous graph
g = dgl.graph(g.edges())
# feed embedding
embeds = self.embedding(batch.wordid * batch.mask)
g.ndata["iou"] = self.cell.W_iou(
self.dropout(embeds)
) * batch.mask.float().unsqueeze(-1)
g.ndata["h"] = h
g.ndata["c"] = c
# propagate
dgl.prop_nodes_topo(
g,
message_func=self.cell.message_func,
reduce_func=self.cell.reduce_func,
apply_node_func=self.cell.apply_node_func,
)
# compute logits
h = self.dropout(g.ndata.pop("h"))
logits = self.linear(h)
return logits
import torch.nn.functional as F
主循环
最后，你可以在PyTorch中编写一个训练范式。
from torch.utils.data import DataLoader
device = th.device("cpu")
# hyper parameters
x_size = 256
h_size = 256
dropout = 0.5
lr = 0.05
weight_decay = 1e-4
epochs = 10
# create the model
model = TreeLSTM(
trainset.vocab_size, x_size, h_size, trainset.num_classes, dropout
)
print(model)
# create the optimizer
optimizer = th.optim.Adagrad(
model.parameters(), lr=lr, weight_decay=weight_decay
)
def batcher(dev):
def batcher_dev(batch):
batch_trees = dgl.batch(batch)
return SSTBatch(
graph=batch_trees,
mask=batch_trees.ndata["mask"].to(device),
wordid=batch_trees.ndata["x"].to(device),
label=batch_trees.ndata["y"].to(device),
)
return batcher_dev
train_loader = DataLoader(
dataset=tiny_sst,
batch_size=5,
collate_fn=batcher(device),
shuffle=False,
num_workers=0,
)
# training loop
for epoch in range(epochs):
for step, batch in enumerate(train_loader):
g = batch.graph
n = g.num_nodes()
h = th.zeros((n, h_size))
c = th.zeros((n, h_size))
logits = model(batch, h, c)
logp = F.log_softmax(logits, 1)
loss = F.nll_loss(logp, batch.label, reduction="sum")
optimizer.zero_grad()
loss.backward()
optimizer.step()
pred = th.argmax(logits, 1)
acc = float(th.sum(th.eq(batch.label, pred))) / len(batch.label)
print(
"Epoch {:05d} | Step {:05d} | Loss {:.4f} | Acc {:.4f} |".format(
epoch, step, loss.item(), acc
)
)
TreeLSTM(
(embedding): Embedding(19536, 256)
(dropout): Dropout(p=0.5, inplace=False)
(linear): Linear(in_features=256, out_features=5, bias=True)
(cell): TreeLSTMCell(
(W_iou): Linear(in_features=256, out_features=768, bias=False)
(U_iou): Linear(in_features=512, out_features=768, bias=False)
(U_f): Linear(in_features=512, out_features=512, bias=True)
)
)
/home/ubuntu/prod-doc/readthedocs.org/user_builds/dgl/checkouts/latest/python/dgl/core.py:82: DGLWarning: The input graph for the user-defined edge function does not contain valid edges
dgl_warning(
Epoch 00000 | Step 00000 | Loss 439.9816 | Acc 0.2015 |
Epoch 00001 | Step 00000 | Loss 226.3700 | Acc 0.7179 |
Epoch 00002 | Step 00000 | Loss 542.1960 | Acc 0.6190 |
Epoch 00003 | Step 00000 | Loss 474.2100 | Acc 0.7766 |
Epoch 00004 | Step 00000 | Loss 326.0594 | Acc 0.6264 |
Epoch 00005 | Step 00000 | Loss 176.7779 | Acc 0.8352 |
Epoch 00006 | Step 00000 | Loss 116.4029 | Acc 0.8571 |
Epoch 00007 | Step 00000 | Loss 114.9060 | Acc 0.8828 |
Epoch 00008 | Step 00000 | Loss 74.3830 | Acc 0.9267 |
Epoch 00009 | Step 00000 | Loss 65.8115 | Acc 0.9231 |
要在具有不同设置（如CPU或GPU）的完整数据集上训练模型，请参考PyTorch示例。还有一个Child-Sum Tree-LSTM的实现。
脚本的总运行时间： (0 分钟 2.759 秒)
