DCGAN教程¶

创建于：2018年7月31日 | 最后更新：2024年1月19日 | 最后验证：2024年11月5日

介绍¶

本教程将通过一个示例介绍DCGANs。我们将训练一个生成对抗网络（GAN），在展示许多真实名人的图片后，生成新的名人。这里的大部分代码来自pytorch/examples中的DCGAN实现，本文档将详细解释实现过程，并阐明该模型的工作原理及其原因。但不用担心，不需要事先了解GANs，但初学者可能需要花一些时间思考实际上发生了什么。此外，为了节省时间，拥有一块或两块GPU会有所帮助。让我们从头开始。

生成对抗网络¶

什么是GAN？¶

GANs 是一种框架，用于教导深度学习模型捕捉训练数据的分布，以便我们可以从相同的分布中生成新数据。GANs 由 Ian Goodfellow 在 2014 年发明，并首次在论文 Generative Adversarial Nets 中描述。它们由两个不同的模型组成，一个生成器和一个判别器。生成器的工作是生成看起来像训练图像的“假”图像。判别器的工作是查看图像并输出它是真实的训练图像还是来自生成器的假图像。在训练过程中，生成器不断尝试通过生成越来越好的假图像来智胜判别器，而判别器则努力成为一个更好的侦探，正确分类真实和假图像。这个游戏的平衡点是当生成器生成看起来像是直接来自训练数据的完美假图像时，判别器只能以 50% 的信心猜测生成器的输出是真实的还是假的。

现在，让我们定义一些在本教程中使用的符号，从判别器开始。设\(x\)为代表图像的数据。\(D(x)\)是判别器网络，它输出\(x\)来自训练数据而不是生成器的（标量）概率。在这里，由于我们处理的是图像，\(D(x)\)的输入是大小为3x64x64的CHW图像。直观上，当\(x\)来自训练数据时，\(D(x)\)应该为高，当\(x\)来自生成器时，\(D(x)\)应该为低。\(D(x)\)也可以被视为传统的二分类器。

对于生成器的表示法，让\(z\)是从标准正态分布中采样的潜在空间向量。\(G(z)\)表示将潜在向量\(z\)映射到数据空间的生成器函数。\(G\)的目标是估计训练数据来自的分布（\(p_{data}\)），以便它可以从该估计分布（\(p_g\)）生成假样本。

因此，\(D(G(z))\) 是生成器 \(G\) 输出为真实图像的概率（标量）。如Goodfellow的论文所述， \(D\) 和 \(G\) 进行一个极小极大博弈，其中 \(D\) 试图最大化其正确分类真实和伪造图像的概率 (\(logD(x)\))，而 \(G\) 试图最小化 \(D\) 预测其输出为伪造的概率 (\(log(1-D(G(z)))\))。根据论文，GAN的损失函数为

\[\underset{G}{\text{min}} \underset{D}{\text{max}}V(D,G) = \mathbb{E}_{x\sim p_{data}(x)}\big[logD(x)\big] + \mathbb{E}_{z\sim p_{z}(z)}\big[log(1-D(G(z)))\big] \]

理论上，这个极小极大游戏的解决方案是当 \(p_g = p_{data}\)时，判别器会随机猜测输入是真实的还是伪造的。然而，GANs的收敛理论仍在积极研究中，实际上模型并不总是训练到这一点。

什么是DCGAN？¶

DCGAN 是上述 GAN 的直接扩展，不同之处在于它明确地在判别器和生成器中分别使用了卷积层和卷积转置层。它最初由 Radford 等人在论文 Unsupervised Representation Learning With Deep Convolutional Generative Adversarial Networks 中描述。判别器由步进卷积层、批量归一化层和 LeakyReLU 激活函数组成。输入是一个 3x64x64 的输入图像，输出是一个标量概率，表示输入是否来自真实数据分布。生成器由卷积转置层、批量归一化层和 ReLU 激活函数组成。输入是一个从标准正态分布中抽取的潜在向量 \(z\)，输出是一个 3x64x64 的 RGB 图像。步进卷积转置层允许将潜在向量转换为与图像形状相同的体积。在论文中，作者还提供了一些关于如何设置优化器、如何计算损失函数以及如何初始化模型权重的建议，所有这些都将在接下来的章节中解释。

#%matplotlib inline
import argparse
import os
import random
import torch
import torch.nn as nn
import torch.nn.parallel
import torch.optim as optim
import torch.utils.data
import torchvision.datasets as dset
import torchvision.transforms as transforms
import torchvision.utils as vutils
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.animation as animation
from IPython.display import HTML

# Set random seed for reproducibility
manualSeed = 999
#manualSeed = random.randint(1, 10000) # use if you want new results
print("Random Seed: ", manualSeed)
random.seed(manualSeed)
torch.manual_seed(manualSeed)
torch.use_deterministic_algorithms(True) # Needed for reproducible results

Random Seed:  999

输入¶

让我们为运行定义一些输入：

dataroot - 数据集文件夹根目录的路径。我们将在下一节中详细讨论数据集。
workers - 用于加载数据的线程数，使用DataLoader。
batch_size - 训练中使用的批量大小。DCGAN论文使用了128的批量大小。
image_size - 用于训练的图像的尺寸。此实现默认为64x64。如果需要其他尺寸，必须更改D和G的结构。更多详情请参见这里。
nc - 输入图像中的颜色通道数。对于彩色图像，这是3。
nz - 潜在向量的长度。
ngf - 与生成器中传递的特征图的深度相关。
ndf - 设置通过判别器传播的特征图的深度。
num_epochs - 训练运行的轮数。训练时间越长，结果可能会更好，但也会花费更多时间。
lr - 训练的学习率。如DCGAN论文所述，这个数字应为0.0002。
beta1 - Adam优化器的beta1超参数。如论文所述，此数值应为0.5。
ngpu - 可用的GPU数量。如果为0，代码将在CPU模式下运行。如果此数字大于0，则将在该数量的GPU上运行。

# Root directory for dataset
dataroot = "data/celeba"

# Number of workers for dataloader
workers = 2

# Batch size during training
batch_size = 128

# Spatial size of training images. All images will be resized to this
#   size using a transformer.
image_size = 64

# Number of channels in the training images. For color images this is 3
nc = 3

# Size of z latent vector (i.e. size of generator input)
nz = 100

# Size of feature maps in generator
ngf = 64

# Size of feature maps in discriminator
ndf = 64

# Number of training epochs
num_epochs = 5

# Learning rate for optimizers
lr = 0.0002

# Beta1 hyperparameter for Adam optimizers
beta1 = 0.5

# Number of GPUs available. Use 0 for CPU mode.
ngpu = 1

数据¶

在本教程中，我们将使用Celeb-A Faces数据集，该数据集可以在链接的网站上下载，或者在Google Drive上下载。数据集将下载为一个名为img_align_celeba.zip的文件。下载完成后，创建一个名为celeba的目录，并将zip文件解压到该目录中。然后，将此笔记本的dataroot输入设置为您刚刚创建的celeba目录。最终的目录结构应为：

/path/to/celeba
    -> img_align_celeba
        -> 188242.jpg
        -> 173822.jpg
        -> 284702.jpg
        -> 537394.jpg
           ...

这是一个重要的步骤，因为我们将使用ImageFolder数据集类，它要求数据集根文件夹中有子目录。现在，我们可以创建数据集，创建数据加载器，设置运行的设备，最后可视化一些训练数据。

# We can use an image folder dataset the way we have it setup.
# Create the dataset
dataset = dset.ImageFolder(root=dataroot,
                           transform=transforms.Compose([
                               transforms.Resize(image_size),
                               transforms.CenterCrop(image_size),
                               transforms.ToTensor(),
                               transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5)),
                           ]))
# Create the dataloader
dataloader = torch.utils.data.DataLoader(dataset, batch_size=batch_size,
                                         shuffle=True, num_workers=workers)

# Decide which device we want to run on
device = torch.device("cuda:0" if (torch.cuda.is_available() and ngpu > 0) else "cpu")

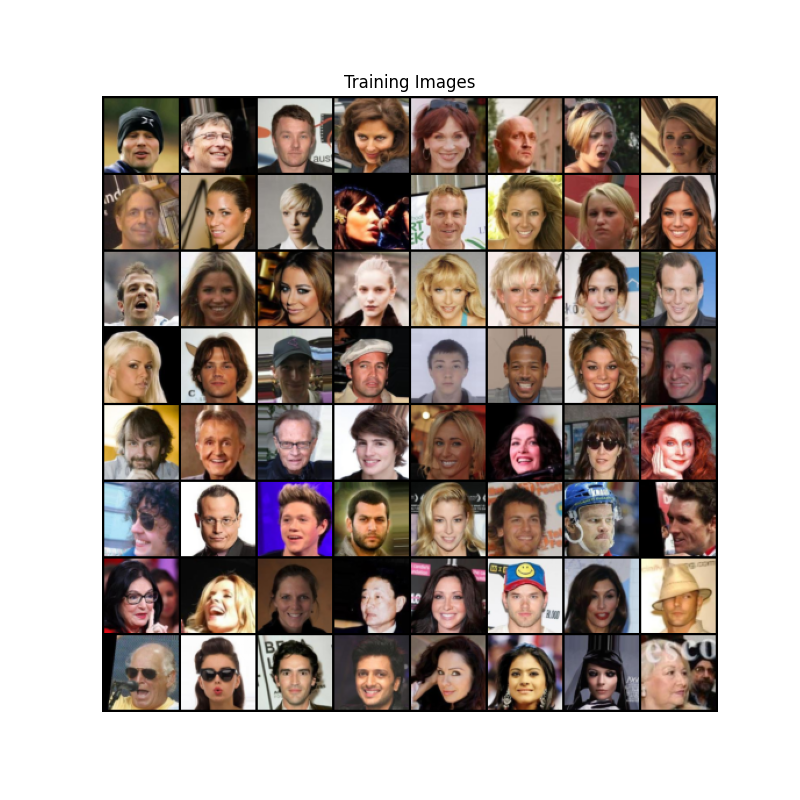

# Plot some training images
real_batch = next(iter(dataloader))
plt.figure(figsize=(8,8))
plt.axis("off")
plt.title("Training Images")
plt.imshow(np.transpose(vutils.make_grid(real_batch[0].to(device)[:64], padding=2, normalize=True).cpu(),(1,2,0)))
plt.show()

实现¶

设置好我们的输入参数并准备好数据集后，我们现在可以进入实现部分。我们将从权重初始化策略开始，然后详细讨论生成器、判别器、损失函数和训练循环。

权重初始化¶

从DCGAN论文中，作者指定所有模型权重应从均值为mean=0，标准差为stdev=0.02的正态分布中随机初始化。weights_init函数接受一个初始化的模型作为输入，并重新初始化所有卷积、卷积转置和批量归一化层以满足这一标准。此函数在模型初始化后立即应用。

# custom weights initialization called on ``netG`` and ``netD``
def weights_init(m):
    classname = m.__class__.__name__
    if classname.find('Conv') != -1:
        nn.init.normal_(m.weight.data, 0.0, 0.02)
    elif classname.find('BatchNorm') != -1:
        nn.init.normal_(m.weight.data, 1.0, 0.02)
        nn.init.constant_(m.bias.data, 0)

生成器¶

生成器，\(G\)，旨在将潜在空间向量（\(z\)）映射到数据空间。由于我们的数据是图像，将\(z\)转换为数据空间意味着最终创建一个与训练图像大小相同的RGB图像（即3x64x64）。实际上，这是通过一系列步幅二维卷积转置层实现的，每个层都与一个2d批量归一化层和一个relu激活函数配对。生成器的输出通过tanh函数传递，以将其返回到\([-1,1]\)的输入数据范围。值得注意的是，在卷积转置层之后存在批量归一化函数，这是DCGAN论文的一个重要贡献。这些层有助于训练期间梯度的流动。下面显示了DCGAN论文中的生成器图像。

注意，我们在输入部分设置的输入（nz、ngf 和 nc）如何影响代码中的生成器架构。nz 是 z 输入向量的长度，ngf 与通过生成器传播的特征图的大小有关，nc 是输出图像中的通道数（对于 RGB 图像设置为 3）。以下是生成器的代码。

# Generator Code

class Generator(nn.Module):
    def __init__(self, ngpu):
        super(Generator, self).__init__()
        self.ngpu = ngpu
        self.main = nn.Sequential(
            # input is Z, going into a convolution
            nn.ConvTranspose2d( nz, ngf * 8, 4, 1, 0, bias=False),
            nn.BatchNorm2d(ngf * 8),
            nn.ReLU(True),
            # state size. ``(ngf*8) x 4 x 4``
            nn.ConvTranspose2d(ngf * 8, ngf * 4, 4, 2, 1, bias=False),
            nn.BatchNorm2d(ngf * 4),
            nn.ReLU(True),
            # state size. ``(ngf*4) x 8 x 8``
            nn.ConvTranspose2d( ngf * 4, ngf * 2, 4, 2, 1, bias=False),
            nn.BatchNorm2d(ngf * 2),
            nn.ReLU(True),
            # state size. ``(ngf*2) x 16 x 16``
            nn.ConvTranspose2d( ngf * 2, ngf, 4, 2, 1, bias=False),
            nn.BatchNorm2d(ngf),
            nn.ReLU(True),
            # state size. ``(ngf) x 32 x 32``
            nn.ConvTranspose2d( ngf, nc, 4, 2, 1, bias=False),
            nn.Tanh()
            # state size. ``(nc) x 64 x 64``
        )

    def forward(self, input):
        return self.main(input)

现在，我们可以实例化生成器并应用weights_init函数。查看打印的模型以了解生成器对象的结构。

# Create the generator
netG = Generator(ngpu).to(device)

# Handle multi-GPU if desired
if (device.type == 'cuda') and (ngpu > 1):
    netG = nn.DataParallel(netG, list(range(ngpu)))

# Apply the ``weights_init`` function to randomly initialize all weights
#  to ``mean=0``, ``stdev=0.02``.
netG.apply(weights_init)

# Print the model
print(netG)

Generator(
  (main): Sequential(
    (0): ConvTranspose2d(100, 512, kernel_size=(4, 4), stride=(1, 1), bias=False)
    (1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    (2): ReLU(inplace=True)
    (3): ConvTranspose2d(512, 256, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)
    (4): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    (5): ReLU(inplace=True)
    (6): ConvTranspose2d(256, 128, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)
    (7): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    (8): ReLU(inplace=True)
    (9): ConvTranspose2d(128, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)
    (10): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    (11): ReLU(inplace=True)
    (12): ConvTranspose2d(64, 3, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)
    (13): Tanh()
  )
)

判别器¶

如前所述，判别器\(D\)是一个二元分类网络，它以图像作为输入并输出输入图像为真实（相对于伪造）的标量概率。在这里，\(D\)接受一个3x64x64的输入图像，通过一系列Conv2d、BatchNorm2d和LeakyReLU层进行处理，并通过Sigmoid激活函数输出最终概率。如果需要，可以为此问题扩展更多层，但使用步幅卷积、BatchNorm和LeakyReLU具有重要意义。DCGAN论文提到，使用步幅卷积而不是池化来进行下采样是一个好习惯，因为它让网络学习自己的池化函数。此外，批量归一化和Leaky ReLU函数促进了健康的梯度流动，这对于\(G\)和\(D\)的学习过程至关重要。

判别器代码

class Discriminator(nn.Module):
    def __init__(self, ngpu):
        super(Discriminator, self).__init__()
        self.ngpu = ngpu
        self.main = nn.Sequential(
            # input is ``(nc) x 64 x 64``
            nn.Conv2d(nc, ndf, 4, 2, 1, bias=False),
            nn.LeakyReLU(0.2, inplace=True),
            # state size. ``(ndf) x 32 x 32``
            nn.Conv2d(ndf, ndf * 2, 4, 2, 1, bias=False),
            nn.BatchNorm2d(ndf * 2),
            nn.LeakyReLU(0.2, inplace=True),
            # state size. ``(ndf*2) x 16 x 16``
            nn.Conv2d(ndf * 2, ndf * 4, 4, 2, 1, bias=False),
            nn.BatchNorm2d(ndf * 4),
            nn.LeakyReLU(0.2, inplace=True),
            # state size. ``(ndf*4) x 8 x 8``
            nn.Conv2d(ndf * 4, ndf * 8, 4, 2, 1, bias=False),
            nn.BatchNorm2d(ndf * 8),
            nn.LeakyReLU(0.2, inplace=True),
            # state size. ``(ndf*8) x 4 x 4``
            nn.Conv2d(ndf * 8, 1, 4, 1, 0, bias=False),
            nn.Sigmoid()
        )

    def forward(self, input):
        return self.main(input)

现在，与生成器一样，我们可以创建判别器，应用weights_init函数，并打印模型的结构。

# Create the Discriminator
netD = Discriminator(ngpu).to(device)

# Handle multi-GPU if desired
if (device.type == 'cuda') and (ngpu > 1):
    netD = nn.DataParallel(netD, list(range(ngpu)))

# Apply the ``weights_init`` function to randomly initialize all weights
# like this: ``to mean=0, stdev=0.2``.
netD.apply(weights_init)

# Print the model
print(netD)

Discriminator(
  (main): Sequential(
    (0): Conv2d(3, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)
    (1): LeakyReLU(negative_slope=0.2, inplace=True)
    (2): Conv2d(64, 128, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)
    (3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    (4): LeakyReLU(negative_slope=0.2, inplace=True)
    (5): Conv2d(128, 256, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)
    (6): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    (7): LeakyReLU(negative_slope=0.2, inplace=True)
    (8): Conv2d(256, 512, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)
    (9): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    (10): LeakyReLU(negative_slope=0.2, inplace=True)
    (11): Conv2d(512, 1, kernel_size=(4, 4), stride=(1, 1), bias=False)
    (12): Sigmoid()
  )
)

损失函数和优化器¶

通过设置\(D\)和\(G\)，我们可以指定它们如何通过损失函数和优化器进行学习。我们将使用在PyTorch中定义的二元交叉熵损失函数（BCELoss）：

\[\ell(x, y) = L = \{l_1,\dots,l_N\}^\top, \quad l_n = - \left[ y_n \cdot \log x_n + (1 - y_n) \cdot \log (1 - x_n) \right] \]

请注意这个函数如何提供目标函数中两个对数分量的计算（即 \(log(D(x))\) 和 \(log(1-D(G(z)))\)）。我们可以通过 \(y\) 输入来指定使用 BCE 方程的哪一部分。这是在即将到来的训练循环中完成的，但重要的是要理解我们如何通过改变 \(y\)（即 GT 标签）来选择我们希望计算的分量。

接下来，我们将真实标签定义为1，假标签定义为0。这些标签将在计算\(D\)和\(G\)的损失时使用，这也是原始GAN论文中使用的惯例。最后，我们设置了两个独立的优化器，一个用于\(D\)，一个用于\(G\)。根据DCGAN论文中的规定，两者都是学习率为0.0002且Beta1 = 0.5的Adam优化器。为了跟踪生成器的学习进度，我们将生成一批从高斯分布中抽取的固定潜在向量（即fixed_noise）。在训练循环中，我们将定期将此fixed_noise输入到\(G\)中，并在迭代过程中看到图像从噪声中形成。

# Initialize the ``BCELoss`` function
criterion = nn.BCELoss()

# Create batch of latent vectors that we will use to visualize
#  the progression of the generator
fixed_noise = torch.randn(64, nz, 1, 1, device=device)

# Establish convention for real and fake labels during training
real_label = 1.
fake_label = 0.

# Setup Adam optimizers for both G and D
optimizerD = optim.Adam(netD.parameters(), lr=lr, betas=(beta1, 0.999))
optimizerG = optim.Adam(netG.parameters(), lr=lr, betas=(beta1, 0.999))

训练¶

最后，既然我们已经定义了GAN框架的所有部分，我们就可以开始训练它了。请注意，训练GAN有点像一门艺术，因为不正确的超参数设置会导致模式崩溃，而且很难解释出错的原因。在这里，我们将严格遵循Goodfellow的论文中的算法1，同时遵守ganhacks中展示的一些最佳实践。具体来说，我们将“为真实和伪造的图像构建不同的小批量”，并调整G的目标函数以最大化\(log(D(G(z)))\)。训练分为两个主要部分。第1部分更新判别器，第2部分更新生成器。

第一部分 - 训练判别器

回想一下，训练判别器的目标是最大化正确分类给定输入为真实或伪造的概率。用Goodfellow的话来说，我们希望“通过上升其随机梯度来更新判别器”。实际上，我们希望最大化\(log(D(x)) + log(1-D(G(z)))\)。由于ganhacks提出的单独小批量建议，我们将分两步计算这一点。首先，我们将从训练集中构建一批真实样本，通过\(D\)进行前向传播，计算损失（\(log(D(x))\)），然后在反向传播中计算梯度。其次，我们将使用当前生成器构建一批伪造样本，通过\(D\)进行前向传播，计算损失（\(log(1-D(G(z)))\)），并在反向传播中累积梯度。现在，通过从全真实和全伪造批次中累积的梯度，我们调用判别器优化器的一步。

第二部分 - 训练生成器

正如原论文所述，我们希望通过最小化\(log(1-D(G(z)))\)来训练生成器，以生成更好的假样本。如前所述，Goodfellow表明这不会提供足够的梯度，尤其是在学习过程的早期。为了解决这个问题，我们希望改为最大化\(log(D(G(z)))\)。在代码中，我们通过以下方式实现这一点：使用判别器对第1部分的生成器输出进行分类，使用真实标签作为GT计算G的损失，在反向传播中计算G的梯度，最后使用优化器步骤更新G的参数。使用真实标签作为损失函数的GT标签可能看起来违反直觉，但这允许我们使用BCELoss的\(log(x)\)部分（而不是\(log(1-x)\)部分），这正是我们想要的。

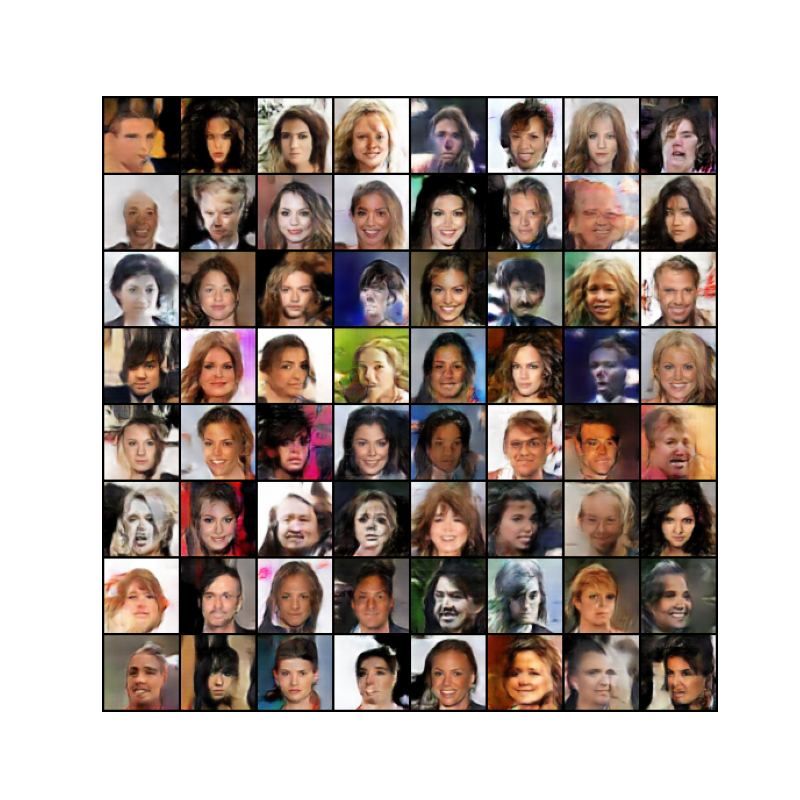

最后，我们将进行一些统计报告，并在每个epoch结束时，我们将通过生成器推送我们的fixed_noise批次，以视觉上跟踪G的训练进度。报告的培训统计数据是：

Loss_D - 判别器损失，计算为所有真实批次和所有假批次损失的总和（\(log(D(x)) + log(1 - D(G(z)))\)）。
Loss_G - 生成器损失计算为 \(log(D(G(z)))\)
D(x) - 判别器对于所有真实批次的平均输出（跨批次）。这应该开始时接近1，然后在理论上当G变得更好时收敛到0.5。思考一下为什么会这样。
D(G(z)) - 所有假批次数据的平均判别器输出。第一个数字是在D更新之前，第二个数字是在D更新之后。这些数字应该从接近0开始，随着G的改进逐渐收敛到0.5。思考一下为什么会这样。

注意： 此步骤可能需要一些时间，具体取决于您运行的epoch数量以及是否从数据集中删除了一些数据。

# Training Loop

# Lists to keep track of progress
img_list = []
G_losses = []
D_losses = []
iters = 0

print("Starting Training Loop...")
# For each epoch
for epoch in range(num_epochs):
    # For each batch in the dataloader
    for i, data in enumerate(dataloader, 0):

        ############################
        # (1) Update D network: maximize log(D(x)) + log(1 - D(G(z)))
        ###########################
        ## Train with all-real batch
        netD.zero_grad()
        # Format batch
        real_cpu = data[0].to(device)
        b_size = real_cpu.size(0)
        label = torch.full((b_size,), real_label, dtype=torch.float, device=device)
        # Forward pass real batch through D
        output = netD(real_cpu).view(-1)
        # Calculate loss on all-real batch
        errD_real = criterion(output, label)
        # Calculate gradients for D in backward pass
        errD_real.backward()
        D_x = output.mean().item()

        ## Train with all-fake batch
        # Generate batch of latent vectors
        noise = torch.randn(b_size, nz, 1, 1, device=device)
        # Generate fake image batch with G
        fake = netG(noise)
        label.fill_(fake_label)
        # Classify all fake batch with D
        output = netD(fake.detach()).view(-1)
        # Calculate D's loss on the all-fake batch
        errD_fake = criterion(output, label)
        # Calculate the gradients for this batch, accumulated (summed) with previous gradients
        errD_fake.backward()
        D_G_z1 = output.mean().item()
        # Compute error of D as sum over the fake and the real batches
        errD = errD_real + errD_fake
        # Update D
        optimizerD.step()

        ############################
        # (2) Update G network: maximize log(D(G(z)))
        ###########################
        netG.zero_grad()
        label.fill_(real_label)  # fake labels are real for generator cost
        # Since we just updated D, perform another forward pass of all-fake batch through D
        output = netD(fake).view(-1)
        # Calculate G's loss based on this output
        errG = criterion(output, label)
        # Calculate gradients for G
        errG.backward()
        D_G_z2 = output.mean().item()
        # Update G
        optimizerG.step()

        # Output training stats
        if i % 50 == 0:
            print('[%d/%d][%d/%d]\tLoss_D: %.4f\tLoss_G: %.4f\tD(x): %.4f\tD(G(z)): %.4f / %.4f'
                  % (epoch, num_epochs, i, len(dataloader),
                     errD.item(), errG.item(), D_x, D_G_z1, D_G_z2))

        # Save Losses for plotting later
        G_losses.append(errG.item())
        D_losses.append(errD.item())

        # Check how the generator is doing by saving G's output on fixed_noise
        if (iters % 500 == 0) or ((epoch == num_epochs-1) and (i == len(dataloader)-1)):
            with torch.no_grad():
                fake = netG(fixed_noise).detach().cpu()
            img_list.append(vutils.make_grid(fake, padding=2, normalize=True))

        iters += 1

Starting Training Loop...
[0/5][0/1583]   Loss_D: 1.4639  Loss_G: 6.9356  D(x): 0.7143    D(G(z)): 0.5877 / 0.0017
[0/5][50/1583]  Loss_D: 0.3242  Loss_G: 31.5483 D(x): 0.8383    D(G(z)): 0.0000 / 0.0000
[0/5][100/1583] Loss_D: 0.6255  Loss_G: 4.1696  D(x): 0.7227    D(G(z)): 0.0358 / 0.0356
[0/5][150/1583] Loss_D: 0.2219  Loss_G: 3.3579  D(x): 0.9007    D(G(z)): 0.0666 / 0.0863
[0/5][200/1583] Loss_D: 0.8795  Loss_G: 4.5660  D(x): 0.6613    D(G(z)): 0.2131 / 0.0210
[0/5][250/1583] Loss_D: 0.4980  Loss_G: 3.2480  D(x): 0.7250    D(G(z)): 0.0488 / 0.1019
[0/5][300/1583] Loss_D: 1.6464  Loss_G: 4.2970  D(x): 0.3272    D(G(z)): 0.0047 / 0.0320
[0/5][350/1583] Loss_D: 0.6214  Loss_G: 4.2107  D(x): 0.9090    D(G(z)): 0.3447 / 0.0251
[0/5][400/1583] Loss_D: 0.6713  Loss_G: 4.2897  D(x): 0.9257    D(G(z)): 0.3878 / 0.0294
[0/5][450/1583] Loss_D: 0.5819  Loss_G: 3.9728  D(x): 0.7532    D(G(z)): 0.1509 / 0.0317
[0/5][500/1583] Loss_D: 1.4538  Loss_G: 1.0834  D(x): 0.3934    D(G(z)): 0.1352 / 0.4428
[0/5][550/1583] Loss_D: 0.4030  Loss_G: 4.4588  D(x): 0.8614    D(G(z)): 0.1533 / 0.0207
[0/5][600/1583] Loss_D: 0.6030  Loss_G: 3.2111  D(x): 0.6778    D(G(z)): 0.0695 / 0.0673
[0/5][650/1583] Loss_D: 0.8971  Loss_G: 4.5883  D(x): 0.7796    D(G(z)): 0.3915 / 0.0173
[0/5][700/1583] Loss_D: 0.3551  Loss_G: 5.3014  D(x): 0.8556    D(G(z)): 0.1236 / 0.0085
[0/5][750/1583] Loss_D: 1.1255  Loss_G: 3.2437  D(x): 0.4403    D(G(z)): 0.0122 / 0.0860
[0/5][800/1583] Loss_D: 0.3147  Loss_G: 4.5361  D(x): 0.8490    D(G(z)): 0.1034 / 0.0186
[0/5][850/1583] Loss_D: 0.7247  Loss_G: 2.6568  D(x): 0.6426    D(G(z)): 0.1107 / 0.1354
[0/5][900/1583] Loss_D: 0.2811  Loss_G: 3.4807  D(x): 0.8552    D(G(z)): 0.0830 / 0.0534
[0/5][950/1583] Loss_D: 0.7600  Loss_G: 6.4174  D(x): 0.8989    D(G(z)): 0.3859 / 0.0054
[0/5][1000/1583]        Loss_D: 0.3480  Loss_G: 5.2934  D(x): 0.9010    D(G(z)): 0.1750 / 0.0145
[0/5][1050/1583]        Loss_D: 0.5616  Loss_G: 5.3993  D(x): 0.7005    D(G(z)): 0.0210 / 0.0139
[0/5][1100/1583]        Loss_D: 0.1591  Loss_G: 4.6903  D(x): 0.9135    D(G(z)): 0.0464 / 0.0168
[0/5][1150/1583]        Loss_D: 0.3180  Loss_G: 4.7279  D(x): 0.8923    D(G(z)): 0.1549 / 0.0145
[0/5][1200/1583]        Loss_D: 0.4964  Loss_G: 4.0195  D(x): 0.8374    D(G(z)): 0.2212 / 0.0322
[0/5][1250/1583]        Loss_D: 1.0099  Loss_G: 6.1041  D(x): 0.9504    D(G(z)): 0.5440 / 0.0055
[0/5][1300/1583]        Loss_D: 0.4111  Loss_G: 5.3166  D(x): 0.8679    D(G(z)): 0.1921 / 0.0089
[0/5][1350/1583]        Loss_D: 1.8342  Loss_G: 1.6638  D(x): 0.2817    D(G(z)): 0.0134 / 0.2739
[0/5][1400/1583]        Loss_D: 0.4436  Loss_G: 4.5273  D(x): 0.8271    D(G(z)): 0.1715 / 0.0195
[0/5][1450/1583]        Loss_D: 0.9782  Loss_G: 2.6528  D(x): 0.4883    D(G(z)): 0.0166 / 0.1239
[0/5][1500/1583]        Loss_D: 0.6928  Loss_G: 3.2443  D(x): 0.6108    D(G(z)): 0.0365 / 0.0691
[0/5][1550/1583]        Loss_D: 0.4835  Loss_G: 4.4397  D(x): 0.8843    D(G(z)): 0.2668 / 0.0192
[1/5][0/1583]   Loss_D: 0.6268  Loss_G: 4.9622  D(x): 0.9252    D(G(z)): 0.3613 / 0.0135
[1/5][50/1583]  Loss_D: 0.7514  Loss_G: 0.7346  D(x): 0.5730    D(G(z)): 0.0373 / 0.5340
[1/5][100/1583] Loss_D: 0.4567  Loss_G: 3.0858  D(x): 0.7565    D(G(z)): 0.1009 / 0.0716
[1/5][150/1583] Loss_D: 0.5032  Loss_G: 3.5198  D(x): 0.7965    D(G(z)): 0.1911 / 0.0456
[1/5][200/1583] Loss_D: 0.5624  Loss_G: 3.2230  D(x): 0.8774    D(G(z)): 0.3011 / 0.0633
[1/5][250/1583] Loss_D: 1.1976  Loss_G: 1.7349  D(x): 0.4448    D(G(z)): 0.0122 / 0.2734
[1/5][300/1583] Loss_D: 0.5653  Loss_G: 4.2695  D(x): 0.8712    D(G(z)): 0.2859 / 0.0234
[1/5][350/1583] Loss_D: 2.1271  Loss_G: 2.1558  D(x): 0.1991    D(G(z)): 0.0065 / 0.1695
[1/5][400/1583] Loss_D: 0.3964  Loss_G: 3.1797  D(x): 0.7650    D(G(z)): 0.0825 / 0.0578
[1/5][450/1583] Loss_D: 0.4872  Loss_G: 4.7998  D(x): 0.9149    D(G(z)): 0.2904 / 0.0139
[1/5][500/1583] Loss_D: 0.3336  Loss_G: 3.4355  D(x): 0.8826    D(G(z)): 0.1566 / 0.0517
[1/5][550/1583] Loss_D: 0.6615  Loss_G: 3.5165  D(x): 0.7637    D(G(z)): 0.2485 / 0.0470
[1/5][600/1583] Loss_D: 0.5524  Loss_G: 2.7687  D(x): 0.6851    D(G(z)): 0.0846 / 0.0946
[1/5][650/1583] Loss_D: 0.5974  Loss_G: 4.2535  D(x): 0.9131    D(G(z)): 0.3298 / 0.0285
[1/5][700/1583] Loss_D: 0.4352  Loss_G: 3.6688  D(x): 0.9428    D(G(z)): 0.2688 / 0.0460
[1/5][750/1583] Loss_D: 0.3833  Loss_G: 2.9862  D(x): 0.8509    D(G(z)): 0.1604 / 0.0680
[1/5][800/1583] Loss_D: 0.5156  Loss_G: 3.0845  D(x): 0.7028    D(G(z)): 0.0994 / 0.0728
[1/5][850/1583] Loss_D: 1.3500  Loss_G: 8.4715  D(x): 0.9820    D(G(z)): 0.6608 / 0.0004
[1/5][900/1583] Loss_D: 0.7279  Loss_G: 5.5268  D(x): 0.8525    D(G(z)): 0.3799 / 0.0087
[1/5][950/1583] Loss_D: 0.5133  Loss_G: 2.6554  D(x): 0.7431    D(G(z)): 0.1307 / 0.0929
[1/5][1000/1583]        Loss_D: 0.5413  Loss_G: 4.2976  D(x): 0.8956    D(G(z)): 0.3027 / 0.0233
[1/5][1050/1583]        Loss_D: 0.6781  Loss_G: 1.9833  D(x): 0.6030    D(G(z)): 0.0238 / 0.2025
[1/5][1100/1583]        Loss_D: 0.4322  Loss_G: 2.6027  D(x): 0.7542    D(G(z)): 0.0740 / 0.1022
[1/5][1150/1583]        Loss_D: 1.1863  Loss_G: 5.5669  D(x): 0.9340    D(G(z)): 0.6007 / 0.0069
[1/5][1200/1583]        Loss_D: 0.6455  Loss_G: 4.5968  D(x): 0.9106    D(G(z)): 0.3760 / 0.0180
[1/5][1250/1583]        Loss_D: 0.7295  Loss_G: 3.1293  D(x): 0.7430    D(G(z)): 0.2787 / 0.0727
[1/5][1300/1583]        Loss_D: 1.0030  Loss_G: 1.7375  D(x): 0.4721    D(G(z)): 0.0533 / 0.2379
[1/5][1350/1583]        Loss_D: 1.6538  Loss_G: 5.9430  D(x): 0.9442    D(G(z)): 0.7357 / 0.0052
[1/5][1400/1583]        Loss_D: 0.5649  Loss_G: 2.9169  D(x): 0.8183    D(G(z)): 0.2687 / 0.0734
[1/5][1450/1583]        Loss_D: 0.4261  Loss_G: 3.0610  D(x): 0.7964    D(G(z)): 0.1375 / 0.0621
[1/5][1500/1583]        Loss_D: 0.4946  Loss_G: 3.1410  D(x): 0.8565    D(G(z)): 0.2451 / 0.0738
[1/5][1550/1583]        Loss_D: 0.8549  Loss_G: 1.7395  D(x): 0.5435    D(G(z)): 0.0914 / 0.2417
[2/5][0/1583]   Loss_D: 0.5623  Loss_G: 2.1095  D(x): 0.6400    D(G(z)): 0.0452 / 0.1684
[2/5][50/1583]  Loss_D: 0.5614  Loss_G: 4.2505  D(x): 0.9462    D(G(z)): 0.3607 / 0.0201
[2/5][100/1583] Loss_D: 0.7408  Loss_G: 1.7462  D(x): 0.6195    D(G(z)): 0.1396 / 0.2273
[2/5][150/1583] Loss_D: 0.4944  Loss_G: 2.2602  D(x): 0.7388    D(G(z)): 0.1378 / 0.1415
[2/5][200/1583] Loss_D: 0.6049  Loss_G: 2.6208  D(x): 0.7689    D(G(z)): 0.2524 / 0.0962
[2/5][250/1583] Loss_D: 0.5664  Loss_G: 2.9909  D(x): 0.8120    D(G(z)): 0.2578 / 0.0660
[2/5][300/1583] Loss_D: 0.5038  Loss_G: 3.4062  D(x): 0.8648    D(G(z)): 0.2613 / 0.0484
[2/5][350/1583] Loss_D: 0.5945  Loss_G: 1.9982  D(x): 0.7523    D(G(z)): 0.2242 / 0.1662
[2/5][400/1583] Loss_D: 1.1467  Loss_G: 4.7130  D(x): 0.8820    D(G(z)): 0.5668 / 0.0155
[2/5][450/1583] Loss_D: 0.6520  Loss_G: 3.4336  D(x): 0.9213    D(G(z)): 0.4030 / 0.0441
[2/5][500/1583] Loss_D: 0.8613  Loss_G: 1.0815  D(x): 0.5288    D(G(z)): 0.0760 / 0.3905
[2/5][550/1583] Loss_D: 0.6906  Loss_G: 4.1047  D(x): 0.8655    D(G(z)): 0.3697 / 0.0280
[2/5][600/1583] Loss_D: 0.5654  Loss_G: 1.9830  D(x): 0.6963    D(G(z)): 0.1304 / 0.1729
[2/5][650/1583] Loss_D: 0.6044  Loss_G: 1.8089  D(x): 0.7001    D(G(z)): 0.1727 / 0.2082
[2/5][700/1583] Loss_D: 0.6106  Loss_G: 1.6630  D(x): 0.6461    D(G(z)): 0.0877 / 0.2441
[2/5][750/1583] Loss_D: 1.0203  Loss_G: 1.3345  D(x): 0.5085    D(G(z)): 0.1785 / 0.3240
[2/5][800/1583] Loss_D: 0.5377  Loss_G: 2.5538  D(x): 0.7565    D(G(z)): 0.1961 / 0.1027
[2/5][850/1583] Loss_D: 0.3789  Loss_G: 3.0581  D(x): 0.8850    D(G(z)): 0.2092 / 0.0621
[2/5][900/1583] Loss_D: 1.3570  Loss_G: 4.9757  D(x): 0.9622    D(G(z)): 0.6302 / 0.0141
[2/5][950/1583] Loss_D: 0.6596  Loss_G: 2.4686  D(x): 0.7542    D(G(z)): 0.2721 / 0.1085
[2/5][1000/1583]        Loss_D: 0.6875  Loss_G: 1.4414  D(x): 0.6144    D(G(z)): 0.1249 / 0.2787
[2/5][1050/1583]        Loss_D: 0.4792  Loss_G: 2.6635  D(x): 0.7570    D(G(z)): 0.1479 / 0.0962
[2/5][1100/1583]        Loss_D: 1.0462  Loss_G: 4.0517  D(x): 0.8556    D(G(z)): 0.5220 / 0.0298
[2/5][1150/1583]        Loss_D: 0.5255  Loss_G: 2.5377  D(x): 0.8195    D(G(z)): 0.2469 / 0.0990
[2/5][1200/1583]        Loss_D: 0.4260  Loss_G: 3.4207  D(x): 0.9237    D(G(z)): 0.2649 / 0.0436
[2/5][1250/1583]        Loss_D: 0.4721  Loss_G: 2.3755  D(x): 0.7558    D(G(z)): 0.1434 / 0.1175
[2/5][1300/1583]        Loss_D: 1.0240  Loss_G: 4.2717  D(x): 0.8719    D(G(z)): 0.5166 / 0.0230
[2/5][1350/1583]        Loss_D: 0.5882  Loss_G: 1.7832  D(x): 0.7439    D(G(z)): 0.2153 / 0.2073
[2/5][1400/1583]        Loss_D: 0.6932  Loss_G: 3.7904  D(x): 0.9076    D(G(z)): 0.4070 / 0.0330
[2/5][1450/1583]        Loss_D: 0.8912  Loss_G: 4.0172  D(x): 0.8996    D(G(z)): 0.4849 / 0.0256
[2/5][1500/1583]        Loss_D: 0.7962  Loss_G: 4.5561  D(x): 0.9384    D(G(z)): 0.4720 / 0.0171
[2/5][1550/1583]        Loss_D: 0.7970  Loss_G: 4.4968  D(x): 0.9568    D(G(z)): 0.4803 / 0.0177
[3/5][0/1583]   Loss_D: 0.6207  Loss_G: 1.9942  D(x): 0.6708    D(G(z)): 0.1338 / 0.1703
[3/5][50/1583]  Loss_D: 0.8271  Loss_G: 0.8199  D(x): 0.5310    D(G(z)): 0.0875 / 0.4851
[3/5][100/1583] Loss_D: 0.4647  Loss_G: 2.4834  D(x): 0.7816    D(G(z)): 0.1693 / 0.1163
[3/5][150/1583] Loss_D: 0.4473  Loss_G: 2.5716  D(x): 0.8176    D(G(z)): 0.1905 / 0.1006
[3/5][200/1583] Loss_D: 0.6719  Loss_G: 3.3996  D(x): 0.8535    D(G(z)): 0.3625 / 0.0451
[3/5][250/1583] Loss_D: 0.4477  Loss_G: 2.9992  D(x): 0.8987    D(G(z)): 0.2639 / 0.0669
[3/5][300/1583] Loss_D: 0.8086  Loss_G: 1.4259  D(x): 0.6547    D(G(z)): 0.2408 / 0.2925
[3/5][350/1583] Loss_D: 0.5199  Loss_G: 1.9725  D(x): 0.8318    D(G(z)): 0.2539 / 0.1746
[3/5][400/1583] Loss_D: 0.5976  Loss_G: 1.6428  D(x): 0.6476    D(G(z)): 0.1018 / 0.2381
[3/5][450/1583] Loss_D: 0.6942  Loss_G: 3.5290  D(x): 0.8904    D(G(z)): 0.3982 / 0.0395
[3/5][500/1583] Loss_D: 1.1736  Loss_G: 0.7940  D(x): 0.4196    D(G(z)): 0.0627 / 0.4958
[3/5][550/1583] Loss_D: 0.6200  Loss_G: 2.4844  D(x): 0.8689    D(G(z)): 0.3360 / 0.1066
[3/5][600/1583] Loss_D: 0.9227  Loss_G: 1.6358  D(x): 0.5063    D(G(z)): 0.1036 / 0.2437
[3/5][650/1583] Loss_D: 0.5858  Loss_G: 3.6943  D(x): 0.8388    D(G(z)): 0.3057 / 0.0372
[3/5][700/1583] Loss_D: 0.6033  Loss_G: 2.0149  D(x): 0.7311    D(G(z)): 0.1964 / 0.1781
[3/5][750/1583] Loss_D: 0.5502  Loss_G: 3.1818  D(x): 0.8601    D(G(z)): 0.3002 / 0.0541
[3/5][800/1583] Loss_D: 0.6964  Loss_G: 3.9791  D(x): 0.8740    D(G(z)): 0.3934 / 0.0255
[3/5][850/1583] Loss_D: 1.3287  Loss_G: 1.1903  D(x): 0.3969    D(G(z)): 0.1147 / 0.3856
[3/5][900/1583] Loss_D: 0.6994  Loss_G: 3.3330  D(x): 0.8640    D(G(z)): 0.3838 / 0.0500
[3/5][950/1583] Loss_D: 0.8296  Loss_G: 0.9049  D(x): 0.5234    D(G(z)): 0.0647 / 0.4408
[3/5][1000/1583]        Loss_D: 1.0949  Loss_G: 0.7958  D(x): 0.4138    D(G(z)): 0.0365 / 0.4985
[3/5][1050/1583]        Loss_D: 0.6095  Loss_G: 2.4836  D(x): 0.7916    D(G(z)): 0.2766 / 0.1107
[3/5][1100/1583]        Loss_D: 0.4538  Loss_G: 2.0659  D(x): 0.7611    D(G(z)): 0.1358 / 0.1586
[3/5][1150/1583]        Loss_D: 0.6258  Loss_G: 2.2310  D(x): 0.6639    D(G(z)): 0.1423 / 0.1486
[3/5][1200/1583]        Loss_D: 0.5801  Loss_G: 1.4977  D(x): 0.6810    D(G(z)): 0.1214 / 0.2645
[3/5][1250/1583]        Loss_D: 2.3328  Loss_G: 4.3672  D(x): 0.9818    D(G(z)): 0.8527 / 0.0235
[3/5][1300/1583]        Loss_D: 0.5145  Loss_G: 2.7098  D(x): 0.8002    D(G(z)): 0.2147 / 0.0871
[3/5][1350/1583]        Loss_D: 0.7088  Loss_G: 0.9405  D(x): 0.6495    D(G(z)): 0.1748 / 0.4374
[3/5][1400/1583]        Loss_D: 0.9545  Loss_G: 1.3225  D(x): 0.5137    D(G(z)): 0.1441 / 0.3294
[3/5][1450/1583]        Loss_D: 0.5780  Loss_G: 1.8844  D(x): 0.7241    D(G(z)): 0.1891 / 0.1926
[3/5][1500/1583]        Loss_D: 0.5709  Loss_G: 1.8434  D(x): 0.7404    D(G(z)): 0.1949 / 0.2120
[3/5][1550/1583]        Loss_D: 0.5434  Loss_G: 2.0119  D(x): 0.7713    D(G(z)): 0.2165 / 0.1718
[4/5][0/1583]   Loss_D: 0.4163  Loss_G: 2.6372  D(x): 0.8265    D(G(z)): 0.1795 / 0.0943
[4/5][50/1583]  Loss_D: 0.6529  Loss_G: 2.0663  D(x): 0.7036    D(G(z)): 0.2107 / 0.1570
[4/5][100/1583] Loss_D: 0.7297  Loss_G: 1.5304  D(x): 0.5676    D(G(z)): 0.0706 / 0.2603
[4/5][150/1583] Loss_D: 0.6044  Loss_G: 1.5723  D(x): 0.6480    D(G(z)): 0.0917 / 0.2653
[4/5][200/1583] Loss_D: 0.8838  Loss_G: 3.6003  D(x): 0.8782    D(G(z)): 0.4936 / 0.0406
[4/5][250/1583] Loss_D: 0.6898  Loss_G: 3.9428  D(x): 0.8996    D(G(z)): 0.3995 / 0.0281
[4/5][300/1583] Loss_D: 0.6976  Loss_G: 1.6595  D(x): 0.6783    D(G(z)): 0.2150 / 0.2308
[4/5][350/1583] Loss_D: 1.3657  Loss_G: 5.0456  D(x): 0.9590    D(G(z)): 0.6777 / 0.0097
[4/5][400/1583] Loss_D: 0.6273  Loss_G: 1.8805  D(x): 0.6428    D(G(z)): 0.1129 / 0.1901
[4/5][450/1583] Loss_D: 0.5668  Loss_G: 2.2586  D(x): 0.7622    D(G(z)): 0.2226 / 0.1269
[4/5][500/1583] Loss_D: 0.5272  Loss_G: 2.0144  D(x): 0.7180    D(G(z)): 0.1372 / 0.1623
[4/5][550/1583] Loss_D: 2.2434  Loss_G: 5.3635  D(x): 0.9622    D(G(z)): 0.8132 / 0.0124
[4/5][600/1583] Loss_D: 1.2922  Loss_G: 5.5550  D(x): 0.9562    D(G(z)): 0.6563 / 0.0061
[4/5][650/1583] Loss_D: 0.5544  Loss_G: 2.2016  D(x): 0.8119    D(G(z)): 0.2580 / 0.1429
[4/5][700/1583] Loss_D: 0.4944  Loss_G: 1.9504  D(x): 0.7448    D(G(z)): 0.1440 / 0.1755
[4/5][750/1583] Loss_D: 0.4139  Loss_G: 2.3911  D(x): 0.8139    D(G(z)): 0.1624 / 0.1218
[4/5][800/1583] Loss_D: 0.7332  Loss_G: 1.7267  D(x): 0.6219    D(G(z)): 0.1537 / 0.2255
[4/5][850/1583] Loss_D: 0.6277  Loss_G: 1.9473  D(x): 0.6935    D(G(z)): 0.1791 / 0.1803
[4/5][900/1583] Loss_D: 0.7917  Loss_G: 3.7302  D(x): 0.9017    D(G(z)): 0.4523 / 0.0328
[4/5][950/1583] Loss_D: 0.5253  Loss_G: 2.1947  D(x): 0.7346    D(G(z)): 0.1590 / 0.1411
[4/5][1000/1583]        Loss_D: 1.1477  Loss_G: 4.9436  D(x): 0.9429    D(G(z)): 0.6048 / 0.0121
[4/5][1050/1583]        Loss_D: 0.6783  Loss_G: 4.0750  D(x): 0.8798    D(G(z)): 0.3849 / 0.0225
[4/5][1100/1583]        Loss_D: 0.6448  Loss_G: 2.5082  D(x): 0.6359    D(G(z)): 0.0836 / 0.1189
[4/5][1150/1583]        Loss_D: 0.9304  Loss_G: 0.6922  D(x): 0.4841    D(G(z)): 0.0729 / 0.5382
[4/5][1200/1583]        Loss_D: 0.5627  Loss_G: 4.1992  D(x): 0.9206    D(G(z)): 0.3443 / 0.0217
[4/5][1250/1583]        Loss_D: 0.7861  Loss_G: 1.5696  D(x): 0.6637    D(G(z)): 0.2357 / 0.2554
[4/5][1300/1583]        Loss_D: 0.6603  Loss_G: 4.2306  D(x): 0.9545    D(G(z)): 0.4271 / 0.0212
[4/5][1350/1583]        Loss_D: 0.9006  Loss_G: 1.5437  D(x): 0.5667    D(G(z)): 0.1951 / 0.2718
[4/5][1400/1583]        Loss_D: 0.7157  Loss_G: 3.9809  D(x): 0.9339    D(G(z)): 0.4234 / 0.0284
[4/5][1450/1583]        Loss_D: 0.9364  Loss_G: 5.0477  D(x): 0.8877    D(G(z)): 0.5022 / 0.0105
[4/5][1500/1583]        Loss_D: 0.5947  Loss_G: 1.7611  D(x): 0.7653    D(G(z)): 0.2372 / 0.2149
[4/5][1550/1583]        Loss_D: 1.4834  Loss_G: 0.6801  D(x): 0.3084    D(G(z)): 0.0380 / 0.5589

结果¶

最后，让我们检查一下我们的表现。在这里，我们将查看三个不同的结果。首先，我们将看到D和G的损失在训练期间如何变化。其次，我们将可视化G在每个时期对fixed_noise批次的输出。第三，我们将查看一批真实数据与G生成的一批假数据。

损失与训练迭代

以下是D & G的损失与训练迭代次数的图表。

plt.figure(figsize=(10,5))
plt.title("Generator and Discriminator Loss During Training")
plt.plot(G_losses,label="G")
plt.plot(D_losses,label="D")
plt.xlabel("iterations")
plt.ylabel("Loss")
plt.legend()
plt.show()

Generator and Discriminator Loss During Training

G的进展可视化

还记得我们如何在每个训练周期后将生成器的输出保存在fixed_noise批次上吗？现在，我们可以通过动画来可视化G的训练进展。按下播放按钮开始动画。

fig = plt.figure(figsize=(8,8))
plt.axis("off")
ims = [[plt.imshow(np.transpose(i,(1,2,0)), animated=True)] for i in img_list]
ani = animation.ArtistAnimation(fig, ims, interval=1000, repeat_delay=1000, blit=True)

HTML(ani.to_jshtml())

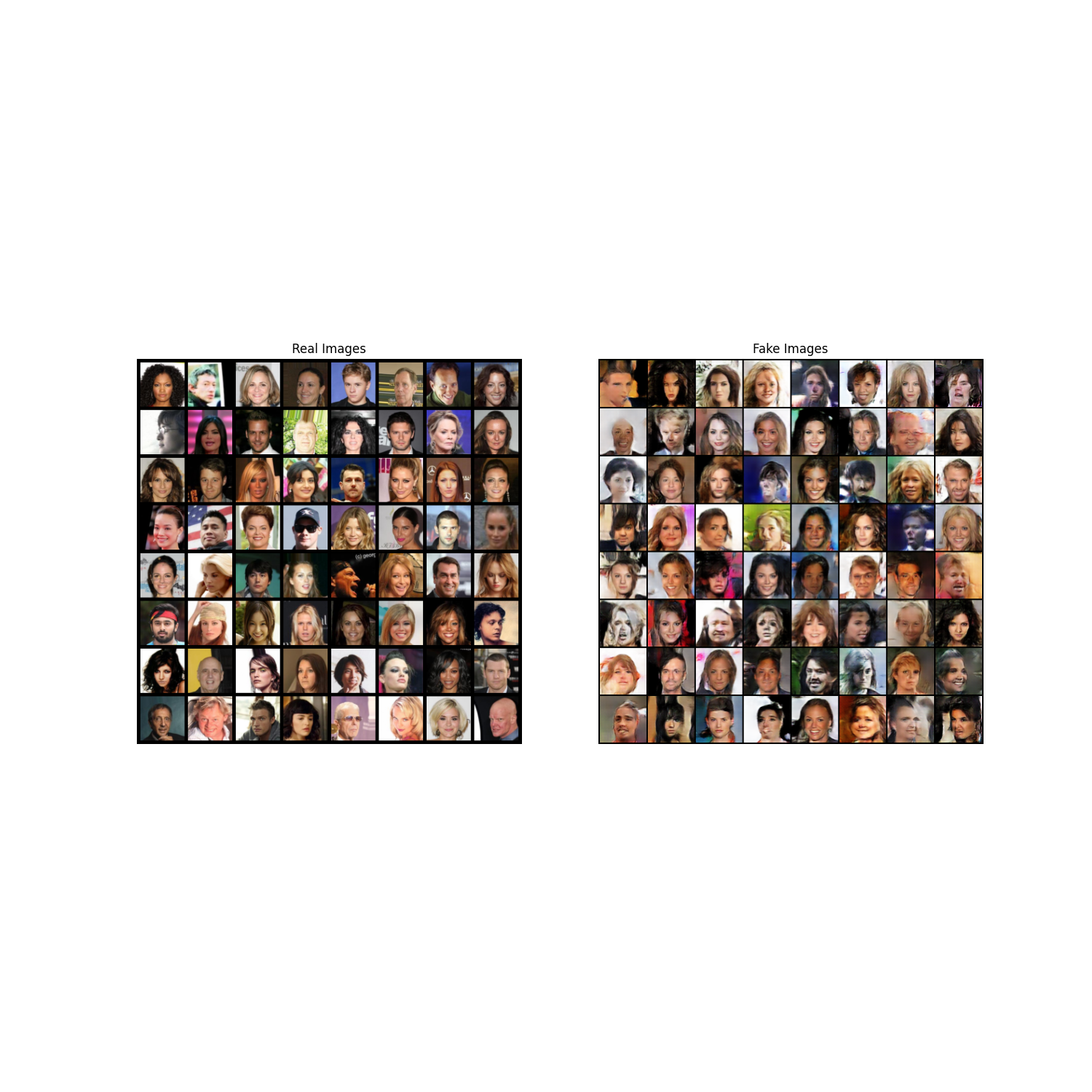

真实图像 vs. 假图像

最后，让我们并排查看一些真实图像和假图像。

# Grab a batch of real images from the dataloader
real_batch = next(iter(dataloader))

# Plot the real images
plt.figure(figsize=(15,15))
plt.subplot(1,2,1)
plt.axis("off")
plt.title("Real Images")
plt.imshow(np.transpose(vutils.make_grid(real_batch[0].to(device)[:64], padding=5, normalize=True).cpu(),(1,2,0)))

# Plot the fake images from the last epoch
plt.subplot(1,2,2)
plt.axis("off")
plt.title("Fake Images")
plt.imshow(np.transpose(img_list[-1],(1,2,0)))
plt.show()

下一步去哪里¶

我们已经到达了旅程的终点，但这里有几个你可以去的地方。你可以：

训练更长时间以查看结果有多好
修改此模型以使用不同的数据集，并可能更改图像的大小和模型架构
查看其他一些很酷的GAN项目这里
创建生成音乐的GANs

脚本总运行时间： (6 分钟 30.029 秒)

Gallery generated by Sphinx-Gallery
