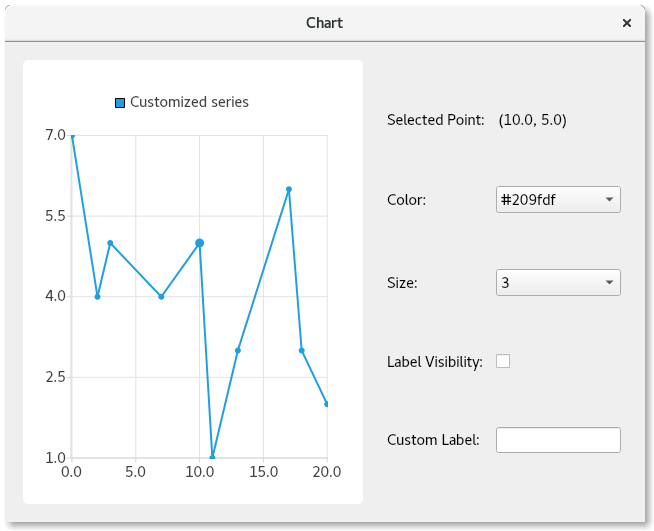

选点配置示例¶

# Copyright (C) 2022 The Qt Company Ltd.
# SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause
from __future__ import annotations

"""PySide6 port of the Light Markers Points Selection example from Qt v6.2"""
import sys
from PySide6.QtWidgets import QApplication

from chartwindow import ChartWindow


if __name__ == "__main__":

    a = QApplication(sys.argv)
    main_window = ChartWindow()
    main_window.resize(640, 480)
    main_window.show()
    sys.exit(a.exec())

# Copyright (C) 2022 The Qt Company Ltd.
# SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause
from __future__ import annotations

"""PySide6 port of the Selected Point Configuration Example from Qt 6.5"""
from PySide6.QtCore import QPointF, Slot
from PySide6.QtGui import QColor, QIcon, QPainter
from PySide6.QtWidgets import QMainWindow, QLineEdit, QLabel, QComboBox
from PySide6.QtWidgets import QCheckBox, QWidget, QGridLayout, QHBoxLayout
from PySide6.QtCharts import QLineSeries, QXYSeries, QChart, QChartView


PointConfig = QXYSeries.PointConfiguration


class ChartWindow(QMainWindow):
    def __init__(self, parent=None):
        super().__init__(parent)

        self.setWindowTitle("Chart")
        self._series = QLineSeries(self)
        self._series.setName("Customized series")
        self._series.setPointsVisible(True)
        self._series.append([QPointF(0, 7), QPointF(2, 4),
                             QPointF(3, 5), QPointF(7, 4),
                             QPointF(10, 5), QPointF(11, 1),
                             QPointF(13, 3), QPointF(17, 6),
                             QPointF(18, 3), QPointF(20, 2)])

        selected_point_index_label = QLabel("Selected Point: ")
        self._selected_point_index_lineedit = QLineEdit()
        self._selected_point_index_lineedit.setReadOnly(True)
        self._selected_point_index_lineedit.setStyleSheet(
            "background-color: rgba(0, 0, 0, 0); border: 0px")

        color_label = QLabel("Color: ")
        self._color_combobox = QComboBox()
        color_strings = ["red", "orange", "yellow", "green", "blue",
                         "indigo", "violet", "black"]
        for color_str in color_strings:
            self._color_combobox.addItem(QIcon(), color_str, QColor(color_str))

        size_label = QLabel("Size: ")
        self._size_combobox = QComboBox()
        for size in [2, 3, 4, 6, 8, 10, 12, 15]:
            self._size_combobox.addItem(QIcon(), str(size), size)

        label_visibility_label = QLabel("Label Visibility: ")
        self._label_visibility_checkbox = QCheckBox()

        custom_label_label = QLabel("Custom Label: ")
        self._custom_label_lineedit = QLineEdit()

        self._series.clicked.connect(self._select_point)
        self._color_combobox.activated.connect(self._set_color)
        self._size_combobox.activated.connect(self._set_size)
        label_vis_checkbox = self._label_visibility_checkbox
        label_vis_checkbox.clicked.connect(self._set_label_visibility)
        clabel_lineedit = self._custom_label_lineedit
        clabel_lineedit.editingFinished.connect(self._set_custom_label)

        self._chart = QChart()
        self._chart.addSeries(self._series)
        self._chart.createDefaultAxes()

        chart_view = QChartView(self._chart)
        chart_view.setRenderHint(QPainter.RenderHint.Antialiasing)

        control_widget = QWidget(self)
        control_layout = QGridLayout(control_widget)
        control_layout.setColumnStretch(1, 1)

        control_layout.addWidget(selected_point_index_label, 0, 0)
        control_layout.addWidget(self._selected_point_index_lineedit, 0, 1)

        control_layout.addWidget(color_label, 1, 0)
        control_layout.addWidget(self._color_combobox, 1, 1)

        control_layout.addWidget(size_label, 2, 0)
        control_layout.addWidget(self._size_combobox, 2, 1)

        control_layout.addWidget(label_visibility_label, 3, 0)
        control_layout.addWidget(self._label_visibility_checkbox, 3, 1, 1, 2)

        control_layout.addWidget(custom_label_label, 4, 0)
        control_layout.addWidget(self._custom_label_lineedit, 4, 1)

        main_widget = QWidget(self)
        main_layout = QHBoxLayout(main_widget)
        main_layout.addWidget(chart_view)
        main_layout.setStretch(0, 1)
        main_layout.addWidget(control_widget)
        self.setCentralWidget(main_widget)

        self._select_point(4)

    @Slot(QPointF)
    def _select_point(self, point: QPointF | int):
        try:
            index = (self._series.points().index(point.toPoint()) if
                     isinstance(point, QPointF) else point)
        except ValueError:
            # Do nothing if the place that was clicked on wasn't a point.
            return

        self._series.deselectAllPoints()
        self._series.selectPoint(index)
        self._selectedPointIndex = index
        self._selectedPointConfig = self._series.pointConfiguration(index)
        selected_point = self._series.at(index)
        selected_index_lineedit = self._selected_point_index_lineedit
        selected_index_lineedit.setText("(" + str(selected_point.x()) + ", "
                                        + str(selected_point.y()) + ")")
        config = self._series.pointConfiguration(index)

        color = config.get(PointConfig.Color) or self._series.color()
        size = config.get(PointConfig.Size) or self._series.markerSize()
        labelVisibility = (config.get(PointConfig.LabelVisibility)
                           or self._series.pointLabelsVisible())
        customLabel = config.get(PointConfig.LabelFormat) or ""

        combobox_value_list = [
            (self._color_combobox, color.name(), color),
            (self._size_combobox, str(size), size)
        ]
        for box, value_str, value in combobox_value_list:
            if box.findData(value) < 0:
                box.addItem(value_str, value)
            box.setCurrentIndex(box.findData(value))

        self._label_visibility_checkbox.setChecked(labelVisibility)
        self._custom_label_lineedit.setText(customLabel)

    @Slot(int)
    def _set_color(self, index: int):
        spc = self._selectedPointConfig
        spc[PointConfig.Color] = self._color_combobox.currentData()
        self._series.setPointConfiguration(self._selectedPointIndex, spc)

    @Slot(int)
    def _set_size(self, index: int):
        spc = self._selectedPointConfig
        spc[PointConfig.Size] = self._size_combobox.currentData()
        self._series.setPointConfiguration(self._selectedPointIndex, spc)

    @Slot(bool)
    def _set_label_visibility(self, checked: bool):
        spc = self._selectedPointConfig
        spc[PointConfig.LabelVisibility] = checked
        self._series.setPointConfiguration(self._selectedPointIndex, spc)

    @Slot()
    def _set_custom_label(self):
        spc = self._selectedPointConfig
        spc[PointConfig.LabelFormat] = self._custom_label_lineedit.text()
        self._series.setPointConfiguration(self._selectedPointIndex, spc)
