小部件库示例¶
Qt 对小部件样式和主题的支持使您的应用程序能够适应本地桌面环境。

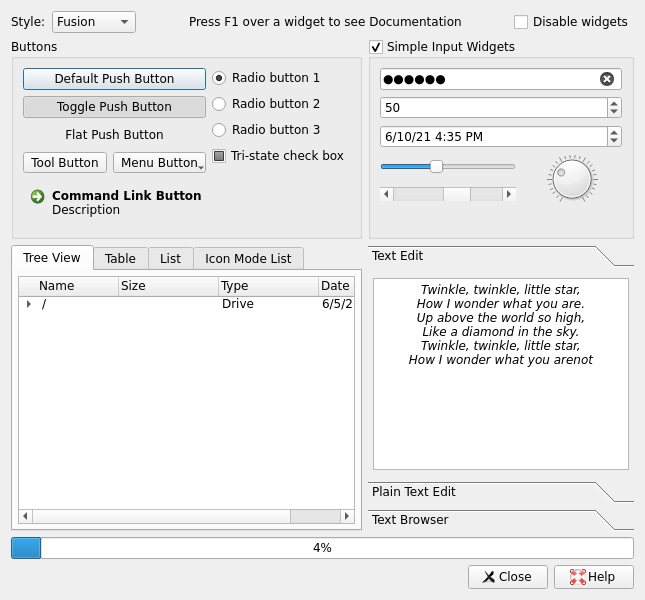

小部件示例展示了当配置为使用特定样式时，Qt 中可用的一些小部件可能的外观。每种样式仅在相应的平台上可用，并通过集成到平台主题中提供原生的外观和感觉。因此，最终的外观会根据当前活动的主题而有所不同。
# Copyright (C) 2022 The Qt Company Ltd.
# SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause
from __future__ import annotations
"""PySide6 port of the widgets/gallery example from Qt v5.15"""
import sys
from PySide6.QtWidgets import QApplication
from widgetgallery import WidgetGallery
if __name__ == '__main__':
app = QApplication()
gallery = WidgetGallery()
gallery.show()
sys.exit(app.exec())
# Copyright (C) 2022 The Qt Company Ltd.
# SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause
from __future__ import annotations
import sys
from PySide6.QtCore import (QDateTime, QDir, QLibraryInfo, QSysInfo, Qt,
QTimer, Slot, qVersion)
from PySide6.QtGui import (QCursor, QDesktopServices, QGuiApplication, QIcon,
QKeySequence, QShortcut, QStandardItem,
QStandardItemModel)
from PySide6.QtWidgets import (QApplication, QCheckBox, QComboBox,
QCommandLinkButton, QDateTimeEdit, QDial,
QDialog, QDialogButtonBox, QFileSystemModel,
QGridLayout, QGroupBox, QHBoxLayout, QLabel,
QLineEdit, QListView, QMenu, QPlainTextEdit,
QProgressBar, QPushButton, QRadioButton,
QScrollBar, QSizePolicy, QSlider, QSpinBox,
QStyleFactory, QTableWidget, QTabWidget,
QTextBrowser, QTextEdit, QToolBox, QToolButton,
QTreeView, QVBoxLayout, QWidget)
POEM = """Twinkle, twinkle, little star,
How I wonder what you are.
Up above the world so high,
Like a diamond in the sky.
Twinkle, twinkle, little star,
How I wonder what you arenot"""
DIR_OPEN_ICON = ":/qt-project.org/styles/commonstyle/images/diropen-128.png"
COMPUTER_ICON = ":/qt-project.org/styles/commonstyle/images/computer-32.png"
SYSTEMINFO = """<html><head/><body>
<h3>Python</h3><p>{}</p>
<h3>Qt Build</h3><p>{}</p>
<h3>Operating System</h3><p>{}</p>
<h3>Screens</h3>
{}
</body></html>"""
def class_name(o):
return o.metaObject().className()
def help_url(page):
"""Build a Qt help URL from the page name"""
major_version = qVersion().split('.')[0]
return f"https://doc.qt.io/qt-{major_version}/{page}.html"
def launch_help(widget):
"""Launch a widget's help page"""
url = help_url(class_name(widget).lower())
QDesktopServices.openUrl(url)
def launch_module_help():
QDesktopServices.openUrl(help_url("qtwidgets-index"))
def init_widget(w, name):
"""Init a widget for the gallery, give it a tooltip showing the
class name"""
w.setObjectName(name)
w.setToolTip(class_name(w))
def style_names():
"""Return a list of styles, default platform style first"""
default_style_name = QApplication.style().objectName().lower()
result = []
for style in QStyleFactory.keys():
if style.lower() == default_style_name:
result.insert(0, style)
else:
result.append(style)
return result
def embed_into_hbox_layout(w, margin=5):
"""Embed a widget into a layout to give it a frame"""
result = QWidget()
layout = QHBoxLayout(result)
layout.setContentsMargins(margin, margin, margin, margin)
layout.addWidget(w)
return result
def format_geometry(rect):
"""Format a geometry as a X11 geometry specification"""
w = rect.width()
h = rect.height()
x = rect.x()
y = rect.y()
return f"{w}x{h}{x:+d}{y:+d}"
def screen_info(widget):
"""Format information on the screens"""
policy = QGuiApplication.highDpiScaleFactorRoundingPolicy()
policy_string = str(policy).split('.')[-1]
result = f"<p>High DPI scale factor rounding policy: {policy_string}</p><ol>"
for screen in QGuiApplication.screens():
current = screen == widget.screen()
result += "<li>"
if current:
result += "<i>"
name = screen.name()
geometry = format_geometry(screen.geometry())
dpi = int(screen.logicalDotsPerInchX())
dpr = screen.devicePixelRatio()
result += f'"{name}" {geometry} {dpi}DPI, DPR={dpr}'
if current:
result += "</i>"
result += "</li>"
result += "</ol>"
return result
class WidgetGallery(QDialog):
"""Dialog displaying a gallery of Qt Widgets"""
def __init__(self):
super().__init__()
self.setWindowIcon(QIcon(':/qt-project.org/logos/pysidelogo.png'))
self._progress_bar = self.create_progress_bar()
self._style_combobox = QComboBox()
init_widget(self._style_combobox, "styleComboBox")
self._style_combobox.addItems(style_names())
style_label = QLabel("Style:")
init_widget(style_label, "style_label")
style_label.setBuddy(self._style_combobox)
help_label = QLabel("Press F1 over a widget to see Documentation")
init_widget(help_label, "help_label")
disable_widgets_checkbox = QCheckBox("Disable widgets")
init_widget(disable_widgets_checkbox, "disable_widgets_checkbox")
buttons_groupbox = self.create_buttons_groupbox()
itemview_tabwidget = self.create_itemview_tabwidget()
simple_input_widgets_groupbox = self.create_simple_inputwidgets_groupbox()
text_toolbox = self.create_text_toolbox()
self._style_combobox.textActivated.connect(self.change_style)
disable_widgets_checkbox.toggled.connect(buttons_groupbox.setDisabled)
disable_widgets_checkbox.toggled.connect(text_toolbox.setDisabled)
disable_widgets_checkbox.toggled.connect(itemview_tabwidget.setDisabled)
disable_widgets_checkbox.toggled.connect(simple_input_widgets_groupbox.setDisabled)
help_shortcut = QShortcut(self)
help_shortcut.setKey(QKeySequence.HelpContents)
help_shortcut.activated.connect(self.help_on_current_widget)
top_layout = QHBoxLayout()
top_layout.addWidget(style_label)
top_layout.addWidget(self._style_combobox)
top_layout.addStretch(1)
top_layout.addWidget(help_label)
top_layout.addStretch(1)
top_layout.addWidget(disable_widgets_checkbox)
dialog_buttonbox = QDialogButtonBox(QDialogButtonBox.Help
| QDialogButtonBox.Close)
init_widget(dialog_buttonbox, "dialogButtonBox")
dialog_buttonbox.helpRequested.connect(launch_module_help)
dialog_buttonbox.rejected.connect(self.reject)
main_layout = QGridLayout(self)
main_layout.addLayout(top_layout, 0, 0, 1, 2)
main_layout.addWidget(buttons_groupbox, 1, 0)
main_layout.addWidget(simple_input_widgets_groupbox, 1, 1)
main_layout.addWidget(itemview_tabwidget, 2, 0)
main_layout.addWidget(text_toolbox, 2, 1)
main_layout.addWidget(self._progress_bar, 3, 0, 1, 2)
main_layout.addWidget(dialog_buttonbox, 4, 0, 1, 2)
qv = qVersion()
self.setWindowTitle(f"Widget Gallery Qt {qv}")
def setVisible(self, visible):
super(WidgetGallery, self).setVisible(visible)
if visible:
self.windowHandle().screenChanged.connect(self.update_systeminfo)
self.update_systeminfo()
@Slot(str)
def change_style(self, style_name):
QApplication.setStyle(QStyleFactory.create(style_name))
@Slot()
def advance_progressbar(self):
cur_val = self._progress_bar.value()
max_val = self._progress_bar.maximum()
self._progress_bar.setValue(cur_val + (max_val - cur_val) / 100)
def create_buttons_groupbox(self):
result = QGroupBox("Buttons")
init_widget(result, "buttons_groupbox")
default_pushbutton = QPushButton("Default Push Button")
init_widget(default_pushbutton, "default_pushbutton")
default_pushbutton.setDefault(True)
toggle_pushbutton = QPushButton("Toggle Push Button")
init_widget(toggle_pushbutton, "toggle_pushbutton")
toggle_pushbutton.setCheckable(True)
toggle_pushbutton.setChecked(True)
flat_pushbutton = QPushButton("Flat Push Button")
init_widget(flat_pushbutton, "flat_pushbutton")
flat_pushbutton.setFlat(True)
toolbutton = QToolButton()
init_widget(toolbutton, "toolButton")
toolbutton.setText("Tool Button")
menu_toolbutton = QToolButton()
init_widget(menu_toolbutton, "menuButton")
menu_toolbutton.setText("Menu Button")
tool_menu = QMenu(menu_toolbutton)
menu_toolbutton.setPopupMode(QToolButton.InstantPopup)
tool_menu.addAction("Option")
tool_menu.addSeparator()
action = tool_menu.addAction("Checkable Option")
action.setCheckable(True)
menu_toolbutton.setMenu(tool_menu)
tool_layout = QHBoxLayout()
tool_layout.addWidget(toolbutton)
tool_layout.addWidget(menu_toolbutton)
commandlinkbutton = QCommandLinkButton("Command Link Button")
init_widget(commandlinkbutton, "commandLinkButton")
commandlinkbutton.setDescription("Description")
button_layout = QVBoxLayout()
button_layout.addWidget(default_pushbutton)
button_layout.addWidget(toggle_pushbutton)
button_layout.addWidget(flat_pushbutton)
button_layout.addLayout(tool_layout)
button_layout.addWidget(commandlinkbutton)
button_layout.addStretch(1)
radiobutton_1 = QRadioButton("Radio button 1")
init_widget(radiobutton_1, "radioButton1")
radiobutton_2 = QRadioButton("Radio button 2")
init_widget(radiobutton_2, "radioButton2")
radiobutton_3 = QRadioButton("Radio button 3")
init_widget(radiobutton_3, "radioButton3")
radiobutton_1.setChecked(True)
checkbox = QCheckBox("Tri-state check box")
init_widget(checkbox, "checkBox")
checkbox.setTristate(True)
checkbox.setCheckState(Qt.PartiallyChecked)
checkable_layout = QVBoxLayout()
checkable_layout.addWidget(radiobutton_1)
checkable_layout.addWidget(radiobutton_2)
checkable_layout.addWidget(radiobutton_3)
checkable_layout.addWidget(checkbox)
checkable_layout.addStretch(1)
main_layout = QHBoxLayout(result)
main_layout.addLayout(button_layout)
main_layout.addLayout(checkable_layout)
main_layout.addStretch()
return result
def create_text_toolbox(self):
result = QToolBox()
init_widget(result, "toolBox")
# Create centered/italic HTML rich text
rich_text = "<html><head/><body><i>"
for line in POEM.split('\n'):
rich_text += f"<center>{line}</center>"
rich_text += "</i></body></html>"
text_edit = QTextEdit(rich_text)
init_widget(text_edit, "textEdit")
plain_textedit = QPlainTextEdit(POEM)
init_widget(plain_textedit, "plainTextEdit")
self._systeminfo_textbrowser = QTextBrowser()
init_widget(self._systeminfo_textbrowser, "systemInfoTextBrowser")
result.addItem(embed_into_hbox_layout(text_edit), "Text Edit")
result.addItem(embed_into_hbox_layout(plain_textedit),
"Plain Text Edit")
result.addItem(embed_into_hbox_layout(self._systeminfo_textbrowser),
"Text Browser")
return result
def create_itemview_tabwidget(self):
result = QTabWidget()
init_widget(result, "bottomLeftTabWidget")
result.setSizePolicy(QSizePolicy.Preferred, QSizePolicy.Ignored)
tree_view = QTreeView()
init_widget(tree_view, "treeView")
filesystem_model = QFileSystemModel(tree_view)
filesystem_model.setRootPath(QDir.rootPath())
tree_view.setModel(filesystem_model)
table_widget = QTableWidget()
init_widget(table_widget, "tableWidget")
table_widget.setRowCount(10)
table_widget.setColumnCount(10)
list_model = QStandardItemModel(0, 1, result)
list_model.appendRow(QStandardItem(QIcon(DIR_OPEN_ICON), "Directory"))
list_model.appendRow(QStandardItem(QIcon(COMPUTER_ICON), "Computer"))
list_view = QListView()
init_widget(list_view, "listView")
list_view.setModel(list_model)
icon_mode_listview = QListView()
init_widget(icon_mode_listview, "iconModeListView")
icon_mode_listview.setViewMode(QListView.IconMode)
icon_mode_listview.setModel(list_model)
result.addTab(embed_into_hbox_layout(tree_view), "Tree View")
result.addTab(embed_into_hbox_layout(table_widget), "Table")
result.addTab(embed_into_hbox_layout(list_view), "List")
result.addTab(embed_into_hbox_layout(icon_mode_listview),
"Icon Mode List")
return result
def create_simple_inputwidgets_groupbox(self):
result = QGroupBox("Simple Input Widgets")
init_widget(result, "bottomRightGroupBox")
result.setCheckable(True)
result.setChecked(True)
lineedit = QLineEdit("s3cRe7")
init_widget(lineedit, "lineEdit")
lineedit.setClearButtonEnabled(True)
lineedit.setEchoMode(QLineEdit.Password)
spin_box = QSpinBox()
init_widget(spin_box, "spinBox")
spin_box.setValue(50)
date_timeedit = QDateTimeEdit()
init_widget(date_timeedit, "dateTimeEdit")
date_timeedit.setDateTime(QDateTime.currentDateTime())
slider = QSlider()
init_widget(slider, "slider")
slider.setOrientation(Qt.Orientation.Horizontal)
slider.setValue(40)
scrollbar = QScrollBar()
init_widget(scrollbar, "scrollBar")
scrollbar.setOrientation(Qt.Orientation.Horizontal)
scrollbar.setValue(60)
dial = QDial()
init_widget(dial, "dial")
dial.setValue(30)
dial.setNotchesVisible(True)
layout = QGridLayout(result)
layout.addWidget(lineedit, 0, 0, 1, 2)
layout.addWidget(spin_box, 1, 0, 1, 2)
layout.addWidget(date_timeedit, 2, 0, 1, 2)
layout.addWidget(slider, 3, 0)
layout.addWidget(scrollbar, 4, 0)
layout.addWidget(dial, 3, 1, 2, 1)
layout.setRowStretch(5, 1)
return result
def create_progress_bar(self):
result = QProgressBar()
init_widget(result, "progressBar")
result.setRange(0, 10000)
result.setValue(0)
timer = QTimer(self)
timer.timeout.connect(self.advance_progressbar)
timer.start(1000)
return result
@Slot()
def update_systeminfo(self):
"""Display system information"""
system_info = SYSTEMINFO.format(sys.version,
QLibraryInfo.build(),
QSysInfo.prettyProductName(),
screen_info(self))
self._systeminfo_textbrowser.setHtml(system_info)
@Slot()
def help_on_current_widget(self):
"""Display help on widget under mouse"""
w = QApplication.widgetAt(QCursor.pos(self.screen()))
while w: # Skip over internal widgets
name = w.objectName()
if name and not name.startswith("qt_"):
launch_help(w)
break
w = w.parentWidget()
