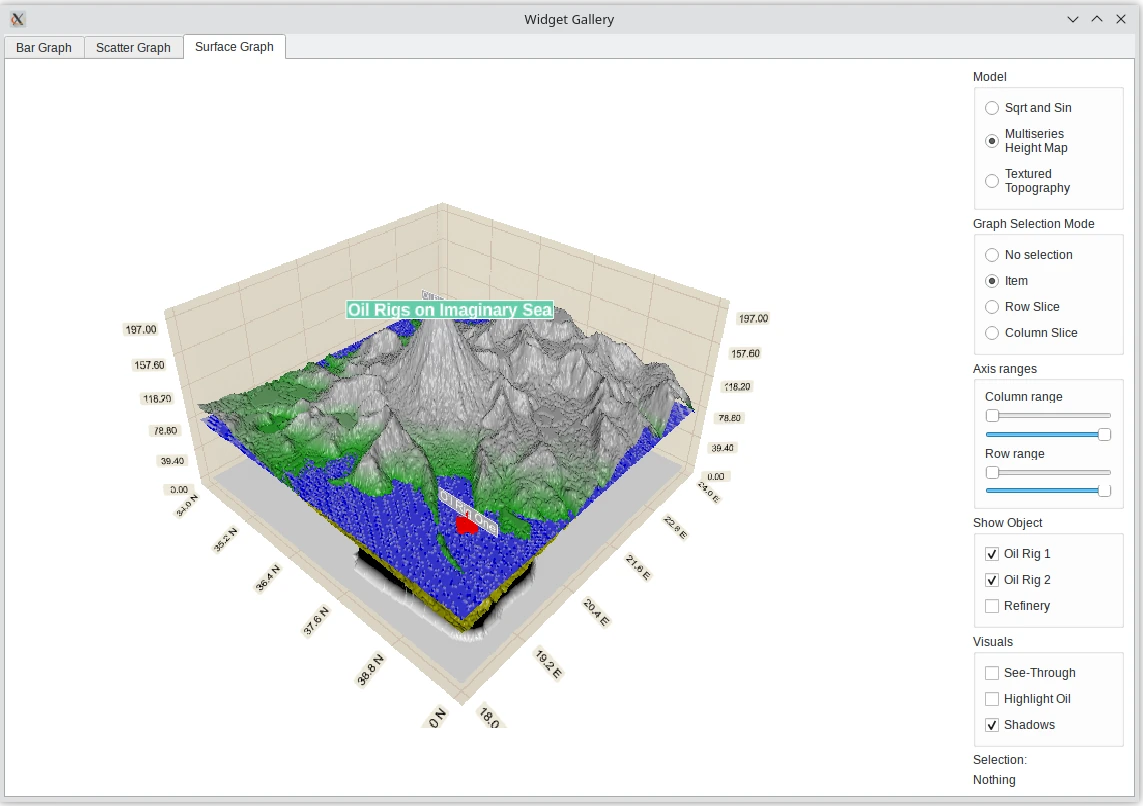

小部件图库¶

# Copyright (C) 2023 The Qt Company Ltd.
# SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause
from __future__ import annotations

"""PySide6 port of the Qt Graphs widgetgallery example from Qt v6.x"""

import sys

from PySide6.QtCore import QSize
from PySide6.QtWidgets import QApplication, QTabWidget

from bargraph import BarGraph
from scattergraph import ScatterGraph
from surfacegraph import SurfaceGraph


class MainWidget(QTabWidget):
    """Tab widget for creating own tabs for Q3DBars, Q3DScatter, and Q3DSurface"""

    def __init__(self, p=None):
        super().__init__(p)

        screen_size = self.screen().size()
        minimum_graph_size = QSize(screen_size.width() / 2, screen_size.height() / 1.75)

        # Create bar graph
        self._bars = BarGraph(minimum_graph_size, screen_size)
        # Create scatter graph
        self._scatter = ScatterGraph(minimum_graph_size, screen_size)
        # Create surface graph
        self._surface = SurfaceGraph(minimum_graph_size, screen_size)

        # Add bars widget
        self.addTab(self._bars.barsWidget(), "Bar Graph")
        # Add scatter widget
        self.addTab(self._scatter.scatterWidget(), "Scatter Graph")
        # Add surface widget
        self.addTab(self._surface.surfaceWidget(), "Surface Graph")


if __name__ == "__main__":
    app = QApplication(sys.argv)

    tabWidget = MainWidget()
    tabWidget.setWindowTitle("Widget Gallery")

    tabWidget.show()
    exit_code = app.exec()
    del tabWidget
    sys.exit(exit_code)

# Copyright (C) 2023 The Qt Company Ltd.
# SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause
from __future__ import annotations

from graphmodifier import GraphModifier

from PySide6.QtCore import QObject, Qt
from PySide6.QtGui import QFont
from PySide6.QtWidgets import (QButtonGroup, QCheckBox, QComboBox, QFontComboBox,
                               QLabel, QPushButton, QHBoxLayout, QSizePolicy,
                               QRadioButton, QSlider, QVBoxLayout, QWidget)
from PySide6.QtQuickWidgets import QQuickWidget
from PySide6.QtGraphs import QAbstract3DSeries, QtGraphs3D
from PySide6.QtGraphsWidgets import Q3DBarsWidgetItem


class BarGraph(QObject):

    def __init__(self, minimum_graph_size, maximum_graph_size):
        super().__init__()

        barsGraph = Q3DBarsWidgetItem()
        barsGraphWidget = QQuickWidget()
        barsGraph.setWidget(barsGraphWidget)
        self._barsWidget = QWidget()
        hLayout = QHBoxLayout(self._barsWidget)
        barsGraphWidget.setMinimumSize(minimum_graph_size)
        barsGraphWidget.setMaximumSize(maximum_graph_size)
        barsGraphWidget.setSizePolicy(QSizePolicy.Expanding, QSizePolicy.Expanding)
        barsGraphWidget.setFocusPolicy(Qt.StrongFocus)
        hLayout.addWidget(barsGraphWidget, 1)

        vLayout = QVBoxLayout()
        hLayout.addLayout(vLayout)

        themeList = QComboBox(self._barsWidget)
        themeList.addItem("QtGreen")
        themeList.addItem("QtGreenNeon")
        themeList.addItem("MixSeries")
        themeList.addItem("OrangeSeries")
        themeList.addItem("YellowSeries")
        themeList.addItem("BlueSeries")
        themeList.addItem("PurpleSeries")
        themeList.addItem("GreySeries")
        themeList.setCurrentIndex(0)

        labelButton = QPushButton(self._barsWidget)
        labelButton.setText("Change label style")

        smoothCheckBox = QCheckBox(self._barsWidget)
        smoothCheckBox.setText("Smooth bars")
        smoothCheckBox.setChecked(False)

        barStyleList = QComboBox(self._barsWidget)
        barStyleList.addItem("Bar", QAbstract3DSeries.Mesh.Bar)
        barStyleList.addItem("Pyramid", QAbstract3DSeries.Mesh.Pyramid)
        barStyleList.addItem("Cone", QAbstract3DSeries.Mesh.Cone)
        barStyleList.addItem("Cylinder", QAbstract3DSeries.Mesh.Cylinder)
        barStyleList.addItem("Bevel bar", QAbstract3DSeries.Mesh.BevelBar)
        barStyleList.addItem("Sphere", QAbstract3DSeries.Mesh.Sphere)
        barStyleList.setCurrentIndex(4)

        cameraButton = QPushButton(self._barsWidget)
        cameraButton.setText("Change camera preset")

        zoomToSelectedButton = QPushButton(self._barsWidget)
        zoomToSelectedButton.setText("Zoom to selected bar")

        selectionModeList = QComboBox(self._barsWidget)
        selectionModeList.addItem("None", QtGraphs3D.SelectionFlag.None_)
        selectionModeList.addItem("Bar", QtGraphs3D.SelectionFlag.Item)
        selectionModeList.addItem("Row", QtGraphs3D.SelectionFlag.Row)
        sel = QtGraphs3D.SelectionFlag.ItemAndRow
        selectionModeList.addItem("Bar and Row", sel)
        selectionModeList.addItem("Column", QtGraphs3D.SelectionFlag.Column)
        sel = QtGraphs3D.SelectionFlag.ItemAndColumn
        selectionModeList.addItem("Bar and Column", sel)
        sel = QtGraphs3D.SelectionFlag.RowAndColumn
        selectionModeList.addItem("Row and Column", sel)
        sel = QtGraphs3D.SelectionFlag.RowAndColumn
        selectionModeList.addItem("Bar, Row and Column", sel)
        sel = QtGraphs3D.SelectionFlag.Slice | QtGraphs3D.SelectionFlag.Row
        selectionModeList.addItem("Slice into Row", sel)
        sel = QtGraphs3D.SelectionFlag.Slice | QtGraphs3D.SelectionFlag.ItemAndRow
        selectionModeList.addItem("Slice into Row and Item", sel)
        sel = QtGraphs3D.SelectionFlag.Slice | QtGraphs3D.SelectionFlag.Column
        selectionModeList.addItem("Slice into Column", sel)
        sel = (QtGraphs3D.SelectionFlag.Slice
               | QtGraphs3D.SelectionFlag.ItemAndColumn)
        selectionModeList.addItem("Slice into Column and Item", sel)
        sel = (QtGraphs3D.SelectionFlag.ItemRowAndColumn
               | QtGraphs3D.SelectionFlag.MultiSeries)
        selectionModeList.addItem("Multi: Bar, Row, Col", sel)
        sel = (QtGraphs3D.SelectionFlag.Slice
               | QtGraphs3D.SelectionFlag.ItemAndRow
               | QtGraphs3D.SelectionFlag.MultiSeries)
        selectionModeList.addItem("Multi, Slice: Row, Item", sel)
        sel = (QtGraphs3D.SelectionFlag.Slice
               | QtGraphs3D.SelectionFlag.ItemAndColumn
               | QtGraphs3D.SelectionFlag.MultiSeries)
        selectionModeList.addItem("Multi, Slice: Col, Item", sel)
        selectionModeList.setCurrentIndex(1)

        backgroundCheckBox = QCheckBox(self._barsWidget)
        backgroundCheckBox.setText("Show background")
        backgroundCheckBox.setChecked(False)

        gridCheckBox = QCheckBox(self._barsWidget)
        gridCheckBox.setText("Show grid")
        gridCheckBox.setChecked(True)

        seriesCheckBox = QCheckBox(self._barsWidget)
        seriesCheckBox.setText("Show second series")
        seriesCheckBox.setChecked(False)

        reverseValueAxisCheckBox = QCheckBox(self._barsWidget)
        reverseValueAxisCheckBox.setText("Reverse value axis")
        reverseValueAxisCheckBox.setChecked(False)

        rotationSliderX = QSlider(Qt.Orientation.Horizontal, self._barsWidget)
        rotationSliderX.setTickInterval(30)
        rotationSliderX.setTickPosition(QSlider.TicksBelow)
        rotationSliderX.setMinimum(-180)
        rotationSliderX.setValue(0)
        rotationSliderX.setMaximum(180)
        rotationSliderY = QSlider(Qt.Orientation.Horizontal, self._barsWidget)
        rotationSliderY.setTickInterval(15)
        rotationSliderY.setTickPosition(QSlider.TicksAbove)
        rotationSliderY.setMinimum(-90)
        rotationSliderY.setValue(0)
        rotationSliderY.setMaximum(90)

        fontSizeSlider = QSlider(Qt.Orientation.Horizontal, self._barsWidget)
        fontSizeSlider.setTickInterval(10)
        fontSizeSlider.setTickPosition(QSlider.TicksBelow)
        fontSizeSlider.setMinimum(1)
        fontSizeSlider.setValue(30)
        fontSizeSlider.setMaximum(100)

        fontList = QFontComboBox(self._barsWidget)
        fontList.setCurrentFont(QFont("Times New Roman"))

        shadowQuality = QComboBox(self._barsWidget)
        shadowQuality.addItem("None")
        shadowQuality.addItem("Low")
        shadowQuality.addItem("Medium")
        shadowQuality.addItem("High")
        shadowQuality.addItem("Low Soft")
        shadowQuality.addItem("Medium Soft")
        shadowQuality.addItem("High Soft")
        shadowQuality.setCurrentIndex(5)

        rangeList = QComboBox(self._barsWidget)
        rangeList.addItem("2015")
        rangeList.addItem("2016")
        rangeList.addItem("2017")
        rangeList.addItem("2018")
        rangeList.addItem("2019")
        rangeList.addItem("2020")
        rangeList.addItem("2021")
        rangeList.addItem("2022")
        rangeList.addItem("All")
        rangeList.setCurrentIndex(8)

        axisTitlesVisibleCB = QCheckBox(self._barsWidget)
        axisTitlesVisibleCB.setText("Axis titles visible")
        axisTitlesVisibleCB.setChecked(True)

        axisTitlesFixedCB = QCheckBox(self._barsWidget)
        axisTitlesFixedCB.setText("Axis titles fixed")
        axisTitlesFixedCB.setChecked(True)

        axisLabelRotationSlider = QSlider(Qt.Orientation.Horizontal, self._barsWidget)
        axisLabelRotationSlider.setTickInterval(10)
        axisLabelRotationSlider.setTickPosition(QSlider.TicksBelow)
        axisLabelRotationSlider.setMinimum(0)
        axisLabelRotationSlider.setValue(30)
        axisLabelRotationSlider.setMaximum(90)

        modeGroup = QButtonGroup(self._barsWidget)
        modeWeather = QRadioButton("Temperature Data", self._barsWidget)
        modeWeather.setChecked(True)
        modeCustomProxy = QRadioButton("Custom Proxy Data", self._barsWidget)
        modeGroup.addButton(modeWeather)
        modeGroup.addButton(modeCustomProxy)

        vLayout.addWidget(QLabel("Rotate horizontally"))
        vLayout.addWidget(rotationSliderX, 0, Qt.AlignTop)
        vLayout.addWidget(QLabel("Rotate vertically"))
        vLayout.addWidget(rotationSliderY, 0, Qt.AlignTop)
        vLayout.addWidget(labelButton, 0, Qt.AlignTop)
        vLayout.addWidget(cameraButton, 0, Qt.AlignTop)
        vLayout.addWidget(zoomToSelectedButton, 0, Qt.AlignTop)
        vLayout.addWidget(backgroundCheckBox)
        vLayout.addWidget(gridCheckBox)
        vLayout.addWidget(smoothCheckBox)
        vLayout.addWidget(seriesCheckBox)
        vLayout.addWidget(reverseValueAxisCheckBox)
        vLayout.addWidget(axisTitlesVisibleCB)
        vLayout.addWidget(axisTitlesFixedCB)
        vLayout.addWidget(QLabel("Show year"))
        vLayout.addWidget(rangeList)
        vLayout.addWidget(QLabel("Change bar style"))
        vLayout.addWidget(barStyleList)
        vLayout.addWidget(QLabel("Change selection mode"))
        vLayout.addWidget(selectionModeList)
        vLayout.addWidget(QLabel("Change theme"))
        vLayout.addWidget(themeList)
        vLayout.addWidget(QLabel("Adjust shadow quality"))
        vLayout.addWidget(shadowQuality)
        vLayout.addWidget(QLabel("Change font"))
        vLayout.addWidget(fontList)
        vLayout.addWidget(QLabel("Adjust font size"))
        vLayout.addWidget(fontSizeSlider)
        vLayout.addWidget(QLabel("Axis label rotation"))
        vLayout.addWidget(axisLabelRotationSlider, 0, Qt.AlignTop)
        vLayout.addWidget(modeWeather, 0, Qt.AlignTop)
        vLayout.addWidget(modeCustomProxy, 1, Qt.AlignTop)

        modifier = GraphModifier(barsGraph, self)
        modifier.changeTheme(themeList.currentIndex())

        rotationSliderX.valueChanged.connect(modifier.rotateX)
        rotationSliderY.valueChanged.connect(modifier.rotateY)

        labelButton.clicked.connect(modifier.changeLabelBackground)
        cameraButton.clicked.connect(modifier.changePresetCamera)
        zoomToSelectedButton.clicked.connect(modifier.zoomToSelectedBar)

        backgroundCheckBox.checkStateChanged.connect(modifier.setPlotAreaBackgroundVisible)
        gridCheckBox.checkStateChanged.connect(modifier.setGridVisible)
        smoothCheckBox.checkStateChanged.connect(modifier.setSmoothBars)
        seriesCheckBox.checkStateChanged.connect(modifier.setSeriesVisibility)
        reverseValueAxisCheckBox.checkStateChanged.connect(modifier.setReverseValueAxis)

        modifier.backgroundVisibleChanged.connect(backgroundCheckBox.setChecked)
        modifier.gridVisibleChanged.connect(gridCheckBox.setChecked)

        rangeList.currentIndexChanged.connect(modifier.changeRange)

        barStyleList.currentIndexChanged.connect(modifier.changeStyle)

        selectionModeList.currentIndexChanged.connect(modifier.changeSelectionMode)

        themeList.currentIndexChanged.connect(modifier.changeTheme)

        shadowQuality.currentIndexChanged.connect(modifier.changeShadowQuality)

        modifier.shadowQualityChanged.connect(shadowQuality.setCurrentIndex)
        barsGraph.shadowQualityChanged.connect(modifier.shadowQualityUpdatedByVisual)

        fontSizeSlider.valueChanged.connect(modifier.changeFontSize)
        fontList.currentFontChanged.connect(modifier.changeFont)

        modifier.fontSizeChanged.connect(fontSizeSlider.setValue)
        modifier.fontChanged.connect(fontList.setCurrentFont)

        axisTitlesVisibleCB.checkStateChanged.connect(modifier.setAxisTitleVisibility)
        axisTitlesFixedCB.checkStateChanged.connect(modifier.setAxisTitleFixed)
        axisLabelRotationSlider.valueChanged.connect(modifier.changeLabelRotation)

        modeWeather.toggled.connect(modifier.setDataModeToWeather)
        modeCustomProxy.toggled.connect(modifier.setDataModeToCustom)
        modeWeather.toggled.connect(seriesCheckBox.setEnabled)
        modeWeather.toggled.connect(rangeList.setEnabled)
        modeWeather.toggled.connect(axisTitlesVisibleCB.setEnabled)
        modeWeather.toggled.connect(axisTitlesFixedCB.setEnabled)
        modeWeather.toggled.connect(axisLabelRotationSlider.setEnabled)

    def barsWidget(self):
        return self._barsWidget

# Copyright (C) 2023 The Qt Company Ltd.
# SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause
from __future__ import annotations


from math import atan, degrees
import numpy as np

from PySide6.QtCore import QObject, QPropertyAnimation, Qt, Signal, Slot
from PySide6.QtGui import QFont, QVector3D
from PySide6.QtGraphs import (QAbstract3DSeries,
                              QBarDataItem, QBar3DSeries, QCategory3DAxis,
                              QValue3DAxis, QtGraphs3D, QGraphsTheme)

from rainfalldata import RainfallData

# Set up data
TEMP_OULU = np.array([
    [-7.4, -2.4, 0.0, 3.0, 8.2, 11.6, 14.7, 15.4, 11.4, 4.2, 2.1, -2.3],  # 2015
    [-13.4, -3.9, -1.8, 3.1, 10.6, 13.7, 17.8, 13.6, 10.7, 3.5, -3.1, -4.2],  # 2016
    [-5.7, -6.7, -3.0, -0.1, 4.7, 12.4, 16.1, 14.1, 9.4, 3.0, -0.3, -3.2],  # 2017
    [-6.4, -11.9, -7.4, 1.9, 11.4, 12.4, 21.5, 16.1, 11.0, 4.4, 2.1, -4.1],  # 2018
    [-11.7, -6.1, -2.4, 3.9, 7.2, 14.5, 15.6, 14.4, 8.5, 2.0, -3.0, -1.5],  # 2019
    [-2.1, -3.4, -1.8, 0.6, 7.0, 17.1, 15.6, 15.4, 11.1, 5.6, 1.9, -1.7],  # 2020
    [-9.6, -11.6, -3.2, 2.4, 7.8, 17.3, 19.4, 14.2, 8.0, 5.2, -2.2, -8.6],  # 2021
    [-7.3, -6.4, -1.8, 1.3, 8.1, 15.5, 17.6, 17.6, 9.1, 5.4, -1.5, -4.4]],  # 2022
    np.float64)


TEMP_HELSINKI = np.array([
    [-2.0, -0.1, 1.8, 5.1, 9.7, 13.7, 16.3, 17.3, 12.7, 5.4, 4.6, 2.1],  # 2015
    [-10.3, -0.6, 0.0, 4.9, 14.3, 15.7, 17.7, 16.0, 12.7, 4.6, -1.0, -0.9],  # 2016
    [-2.9, -3.3, 0.7, 2.3, 9.9, 13.8, 16.1, 15.9, 11.4, 5.0, 2.7, 0.7],  # 2017
    [-2.2, -8.4, -4.7, 5.0, 15.3, 15.8, 21.2, 18.2, 13.3, 6.7, 2.8, -2.0],  # 2018
    [-6.2, -0.5, -0.3, 6.8, 10.6, 17.9, 17.5, 16.8, 11.3, 5.2, 1.8, 1.4],  # 2019
    [1.9, 0.5, 1.7, 4.5, 9.5, 18.4, 16.5, 16.8, 13.0, 8.2, 4.4, 0.9],  # 2020
    [-4.7, -8.1, -0.9, 4.5, 10.4, 19.2, 20.9, 15.4, 9.5, 8.0, 1.5, -6.7],  # 2021
    [-3.3, -2.2, -0.2, 3.3, 9.6, 16.9, 18.1, 18.9, 9.2, 7.6, 2.3, -3.4]],  # 2022
    np.float64)


class GraphModifier(QObject):

    shadowQualityChanged = Signal(int)
    backgroundVisibleChanged = Signal(bool)
    gridVisibleChanged = Signal(bool)
    fontChanged = Signal(QFont)
    fontSizeChanged = Signal(int)

    def __init__(self, bargraph, parent):
        super().__init__(parent)
        self._graph = bargraph
        self._temperatureAxis = QValue3DAxis()
        self._yearAxis = QCategory3DAxis()
        self._monthAxis = QCategory3DAxis()
        self._primarySeries = QBar3DSeries()
        self._secondarySeries = QBar3DSeries()
        self._celsiusString = "°C"

        self._xRotation = float(0)
        self._yRotation = float(0)
        self._fontSize = 30
        self._segments = 4
        self._subSegments = 3
        self._minval = float(-20)
        self._maxval = float(20)
        self._barMesh = QAbstract3DSeries.Mesh.BevelBar
        self._smooth = False
        self._animationCameraX = QPropertyAnimation()
        self._animationCameraY = QPropertyAnimation()
        self._animationCameraZoom = QPropertyAnimation()
        self._animationCameraTarget = QPropertyAnimation()
        self._defaultAngleX = float(0)
        self._defaultAngleY = float(0)
        self._defaultZoom = float(0)
        self._defaultTarget = []
        self._customData = None

        self._graph.setShadowQuality(QtGraphs3D.ShadowQuality.SoftMedium)
        theme = self._graph.activeTheme()
        theme.setPlotAreaBackgroundVisible(False)
        theme.setLabelFont(QFont("Times New Roman", self._fontSize))
        theme.setLabelBackgroundVisible(True)
        self._graph.setMultiSeriesUniform(True)

        self._months = ["January", "February", "March", "April", "May", "June",
                        "July", "August", "September", "October", "November",
                        "December"]
        self._years = ["2015", "2016", "2017", "2018", "2019", "2020",
                       "2021", "2022"]

        self._temperatureAxis.setTitle("Average temperature")
        self._temperatureAxis.setSegmentCount(self._segments)
        self._temperatureAxis.setSubSegmentCount(self._subSegments)
        self._temperatureAxis.setRange(self._minval, self._maxval)
        self._temperatureAxis.setLabelFormat("%.1f " + self._celsiusString)
        self._temperatureAxis.setLabelAutoAngle(30.0)
        self._temperatureAxis.setTitleVisible(True)

        self._yearAxis.setTitle("Year")
        self._yearAxis.setLabelAutoAngle(30.0)
        self._yearAxis.setTitleVisible(True)
        self._monthAxis.setTitle("Month")
        self._monthAxis.setLabelAutoAngle(30.0)
        self._monthAxis.setTitleVisible(True)

        self._graph.setValueAxis(self._temperatureAxis)
        self._graph.setRowAxis(self._yearAxis)
        self._graph.setColumnAxis(self._monthAxis)

        format = "Oulu - @colLabel @rowLabel: @valueLabel"
        self._primarySeries.setItemLabelFormat(format)
        self._primarySeries.setMesh(QAbstract3DSeries.Mesh.BevelBar)
        self._primarySeries.setMeshSmooth(False)

        format = "Helsinki - @colLabel @rowLabel: @valueLabel"
        self._secondarySeries.setItemLabelFormat(format)
        self._secondarySeries.setMesh(QAbstract3DSeries.Mesh.BevelBar)
        self._secondarySeries.setMeshSmooth(False)
        self._secondarySeries.setVisible(False)

        self._graph.addSeries(self._primarySeries)
        self._graph.addSeries(self._secondarySeries)

        self.changePresetCamera()

        self.resetTemperatureData()

        # Set up property animations for zooming to the selected bar
        self._defaultAngleX = self._graph.cameraXRotation()
        self._defaultAngleY = self._graph.cameraYRotation()
        self._defaultZoom = self._graph.cameraZoomLevel()
        self._defaultTarget = self._graph.cameraTargetPosition()

        self._animationCameraX.setTargetObject(self._graph)
        self._animationCameraY.setTargetObject(self._graph)
        self._animationCameraZoom.setTargetObject(self._graph)
        self._animationCameraTarget.setTargetObject(self._graph)

        self._animationCameraX.setPropertyName(b"cameraXRotation")
        self._animationCameraY.setPropertyName(b"cameraYRotation")
        self._animationCameraZoom.setPropertyName(b"cameraZoomLevel")
        self._animationCameraTarget.setPropertyName(b"cameraTargetPosition")

        duration = 1700
        self._animationCameraX.setDuration(duration)
        self._animationCameraY.setDuration(duration)
        self._animationCameraZoom.setDuration(duration)
        self._animationCameraTarget.setDuration(duration)

        # The zoom always first zooms out above the graph and then zooms in
        zoomOutFraction = 0.3
        self._animationCameraX.setKeyValueAt(zoomOutFraction, 0.0)
        self._animationCameraY.setKeyValueAt(zoomOutFraction, 90.0)
        self._animationCameraZoom.setKeyValueAt(zoomOutFraction, 50.0)
        self._animationCameraTarget.setKeyValueAt(zoomOutFraction,
                                                  QVector3D(0, 0, 0))
        self._customData = RainfallData()

    def resetTemperatureData(self):
        # Create data arrays
        dataSet = []
        dataSet2 = []

        for year in range(0, len(self._years)):
            # Create a data row
            dataRow = []
            dataRow2 = []
            for month in range(0, len(self._months)):
                # Add data to the row
                item = QBarDataItem()
                item.setValue(TEMP_OULU[year][month])
                dataRow.append(item)
                item = QBarDataItem()
                item.setValue(TEMP_HELSINKI[year][month])
                dataRow2.append(item)

            # Add the row to the set
            dataSet.append(dataRow)
            dataSet2.append(dataRow2)

        # Add data to the data proxy (the data proxy assumes ownership of it)
        self._primarySeries.dataProxy().resetArray(dataSet, self._years, self._months)
        self._secondarySeries.dataProxy().resetArray(dataSet2, self._years, self._months)

    @Slot(int)
    def changeRange(self, range):
        if range >= len(self._years):
            self._yearAxis.setRange(0, len(self._years) - 1)
        else:
            self._yearAxis.setRange(range, range)

    @Slot(int)
    def changeStyle(self, style):
        comboBox = self.sender()
        if comboBox:
            self._barMesh = comboBox.itemData(style)
            self._primarySeries.setMesh(self._barMesh)
            self._secondarySeries.setMesh(self._barMesh)
            self._customData.customSeries().setMesh(self._barMesh)

    def changePresetCamera(self):
        self._animationCameraX.stop()
        self._animationCameraY.stop()
        self._animationCameraZoom.stop()
        self._animationCameraTarget.stop()

        # Restore camera target in case animation has changed it
        self._graph.setCameraTargetPosition(QVector3D(0.0, 0.0, 0.0))

        self._preset = QtGraphs3D.CameraPreset.Front.value

        self._graph.setCameraPreset(QtGraphs3D.CameraPreset(self._preset))

        self._preset += 1
        if self._preset > QtGraphs3D.CameraPreset.DirectlyBelow.value:
            self._preset = QtGraphs3D.CameraPreset.FrontLow.value

    @Slot(int)
    def changeTheme(self, theme):
        currentTheme = self._graph.activeTheme()
        currentTheme.setTheme(QGraphsTheme.Theme(theme))
        self.backgroundVisibleChanged.emit(currentTheme.isBackgroundVisible())
        self.gridVisibleChanged.emit(currentTheme.isGridVisible())
        self.fontChanged.emit(currentTheme.labelFont())
        self.fontSizeChanged.emit(currentTheme.labelFont().pointSize())

    def changeLabelBackground(self):
        theme = self._graph.activeTheme()
        theme.setLabelBackgroundVisible(not theme.isLabelBackgroundVisible())

    @Slot(int)
    def changeSelectionMode(self, selectionMode):
        comboBox = self.sender()
        if comboBox:
            flags = comboBox.itemData(selectionMode)
            self._graph.setSelectionMode(QtGraphs3D.SelectionFlags(flags))

    def changeFont(self, font):
        newFont = font
        self._graph.activeTheme().setLabelFont(newFont)

    def changeFontSize(self, fontsize):
        self._fontSize = fontsize
        font = self._graph.activeTheme().labelFont()
        font.setPointSize(self._fontSize)
        self._graph.activeTheme().setLabelFont(font)

    @Slot(QtGraphs3D.ShadowQuality)
    def shadowQualityUpdatedByVisual(self, sq):
        # Updates the UI component to show correct shadow quality
        self.shadowQualityChanged.emit(sq.value)

    @Slot(int)
    def changeLabelRotation(self, rotation):
        self._temperatureAxis.setLabelAutoAngle(float(rotation))
        self._monthAxis.setLabelAutoAngle(float(rotation))
        self._yearAxis.setLabelAutoAngle(float(rotation))

    @Slot(bool)
    def setAxisTitleVisibility(self, state):
        enabled = state == Qt.CheckState.Checked
        self._temperatureAxis.setTitleVisible(enabled)
        self._monthAxis.setTitleVisible(enabled)
        self._yearAxis.setTitleVisible(enabled)

    @Slot(bool)
    def setAxisTitleFixed(self, state):
        enabled = state == Qt.CheckState.Checked
        self._temperatureAxis.setTitleFixed(enabled)
        self._monthAxis.setTitleFixed(enabled)
        self._yearAxis.setTitleFixed(enabled)

    @Slot()
    def zoomToSelectedBar(self):
        self._animationCameraX.stop()
        self._animationCameraY.stop()
        self._animationCameraZoom.stop()
        self._animationCameraTarget.stop()

        currentX = self._graph.cameraXRotation()
        currentY = self._graph.cameraYRotation()
        currentZoom = self._graph.cameraZoomLevel()
        currentTarget = self._graph.cameraTargetPosition()

        self._animationCameraX.setStartValue(currentX)
        self._animationCameraY.setStartValue(currentY)
        self._animationCameraZoom.setStartValue(currentZoom)
        self._animationCameraTarget.setStartValue(currentTarget)

        selectedBar = (self._graph.selectedSeries().selectedBar()
                       if self._graph.selectedSeries()
                       else QBar3DSeries.invalidSelectionPosition())

        if selectedBar != QBar3DSeries.invalidSelectionPosition():
            # Normalize selected bar position within axis range to determine
            # target coordinates
            endTarget = QVector3D()
            xMin = self._graph.columnAxis().min()
            xRange = self._graph.columnAxis().max() - xMin
            zMin = self._graph.rowAxis().min()
            zRange = self._graph.rowAxis().max() - zMin
            endTarget.setX((selectedBar.y() - xMin) / xRange * 2.0 - 1.0)
            endTarget.setZ((selectedBar.x() - zMin) / zRange * 2.0 - 1.0)

            # Rotate the camera so that it always points approximately to the
            # graph center
            endAngleX = 90.0 - degrees(atan(float(endTarget.z() / endTarget.x())))
            if endTarget.x() > 0.0:
                endAngleX -= 180.0
            proxy = self._graph.selectedSeries().dataProxy()
            barValue = proxy.itemAt(selectedBar.x(), selectedBar.y()).value()
            endAngleY = 30.0 if barValue >= 0.0 else -30.0
            if self._graph.valueAxis().reversed():
                endAngleY *= -1.0

            self._animationCameraX.setEndValue(float(endAngleX))
            self._animationCameraY.setEndValue(endAngleY)
            self._animationCameraZoom.setEndValue(250)
            self._animationCameraTarget.setEndValue(endTarget)
        else:
            # No selected bar, so return to the default view
            self._animationCameraX.setEndValue(self._defaultAngleX)
            self._animationCameraY.setEndValue(self._defaultAngleY)
            self._animationCameraZoom.setEndValue(self._defaultZoom)
            self._animationCameraTarget.setEndValue(self._defaultTarget)

        self._animationCameraX.start()
        self._animationCameraY.start()
        self._animationCameraZoom.start()
        self._animationCameraTarget.start()

    @Slot(bool)
    def setDataModeToWeather(self, enabled):
        if enabled:
            self.changeDataMode(False)

    @Slot(bool)
    def setDataModeToCustom(self, enabled):
        if enabled:
            self.changeDataMode(True)

    def changeShadowQuality(self, quality):
        sq = QtGraphs3D.ShadowQuality(quality)
        self._graph.setShadowQuality(sq)
        self.shadowQualityChanged.emit(quality)

    def rotateX(self, rotation):
        self._xRotation = rotation
        self._graph.setCameraPosition(self._xRotation, self._yRotation)

    def rotateY(self, rotation):
        self._yRotation = rotation
        self._graph.setCameraPosition(self._xRotation, self._yRotation)

    def setPlotAreaBackgroundVisible(self, state):
        enabled = state == Qt.CheckState.Checked
        self._graph.activeTheme().setPlotAreaBackgroundVisible(enabled)

    def setGridVisible(self, state):
        self._graph.activeTheme().setGridVisible(state == Qt.CheckState.Checked)

    def setSmoothBars(self, state):
        self._smooth = state == Qt.CheckState.Checked
        self._primarySeries.setMeshSmooth(self._smooth)
        self._secondarySeries.setMeshSmooth(self._smooth)
        self._customData.customSeries().setMeshSmooth(self._smooth)

    def setSeriesVisibility(self, state):
        self._secondarySeries.setVisible(state == Qt.CheckState.Checked)

    def setReverseValueAxis(self, state):
        self._graph.valueAxis().setReversed(state == Qt.CheckState.Checked)

    def changeDataMode(self, customData):
        # Change between weather data and data from custom proxy
        if customData:
            self._graph.removeSeries(self._primarySeries)
            self._graph.removeSeries(self._secondarySeries)
            self._graph.addSeries(self._customData.customSeries())
            self._graph.setValueAxis(self._customData.valueAxis())
            self._graph.setRowAxis(self._customData.rowAxis())
            self._graph.setColumnAxis(self._customData.colAxis())
        else:
            self._graph.removeSeries(self._customData.customSeries())
            self._graph.addSeries(self._primarySeries)
            self._graph.addSeries(self._secondarySeries)
            self._graph.setValueAxis(self._temperatureAxis)
            self._graph.setRowAxis(self._yearAxis)
            self._graph.setColumnAxis(self._monthAxis)

# Copyright (C) 2023 The Qt Company Ltd.
# SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause
from __future__ import annotations

from PySide6.QtCore import QPoint, Qt, Slot
from PySide6.QtGui import QLinearGradient, QVector3D
from PySide6.QtGraphs import (QSurface3DSeries, QSurfaceDataItem,
                              QGraphsTheme)


DARK_RED_POS = 1.0
RED_POS = 0.8
YELLOW_POS = 0.6
GREEN_POS = 0.4
DARK_GREEN_POS = 0.2


class HighlightSeries(QSurface3DSeries):

    def __init__(self):
        super().__init__()
        self._width = 100
        self._height = 100
        self._srcWidth = 0
        self._srcHeight = 0
        self._position = {}
        self._topographicSeries = None
        self._minHeight = 0.0
        self.setDrawMode(QSurface3DSeries.DrawSurface)
        self.setShading(QSurface3DSeries.Shading.Flat)
        self.setVisible(False)

    def setTopographicSeries(self, series):
        self._topographicSeries = series
        array = self._topographicSeries.dataArray()
        self._srcWidth = len(array[0])
        self._srcHeight = len(array)
        self._topographicSeries.selectedPointChanged.connect(self.handlePositionChange)

    def setMinHeight(self, height):
        self. m_minHeight = height

    @Slot(QPoint)
    def handlePositionChange(self, position):
        self._position = position

        if position == self.invalidSelectionPosition():
            self.setVisible(False)
            return

        halfWidth = self._width / 2
        halfHeight = self._height / 2

        startX = position.y() - halfWidth
        if startX < 0:
            startX = 0
        endX = position.y() + halfWidth
        if endX > (self._srcWidth - 1):
            endX = self._srcWidth - 1
        startZ = position.x() - halfHeight
        if startZ < 0:
            startZ = 0
        endZ = position.x() + halfHeight
        if endZ > (self._srcHeight - 1):
            endZ = self._srcHeight - 1

        srcArray = self._topographicSeries.dataArray()

        dataArray = []
        for i in range(int(startZ), int(endZ)):
            newRow = []
            srcRow = srcArray[i]
            for j in range(startX, endX):
                pos = srcRow.at(j).position()
                pos.setY(pos.y() + 0.1)
                item = QSurfaceDataItem(QVector3D(pos))
                newRow.append(item)
            dataArray.append(newRow)
        self.dataProxy().resetArray(dataArray)
        self.setVisible(True)

    @Slot(float)
    def handleGradientChange(self, value):
        ratio = self._minHeight / value

        gr = QLinearGradient()
        gr.setColorAt(0.0, Qt.black)
        gr.setColorAt(DARK_GREEN_POS * ratio, Qt.darkGreen)
        gr.setColorAt(GREEN_POS * ratio, Qt.green)
        gr.setColorAt(YELLOW_POS * ratio, Qt.yellow)
        gr.setColorAt(RED_POS * ratio, Qt.red)
        gr.setColorAt(DARK_RED_POS * ratio, Qt.darkRed)

        self.setBaseGradient(gr)
        self.setColorStyle(QGraphsTheme.ColorStyle.RangeGradient)

# Copyright (C) 2023 The Qt Company Ltd.
# SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause
from __future__ import annotations

import sys

from pathlib import Path

from PySide6.QtCore import QFile, QIODevice, QObject
from PySide6.QtGraphs import (QBar3DSeries, QCategory3DAxis, QValue3DAxis)

from variantbardataproxy import VariantBarDataProxy
from variantbardatamapping import VariantBarDataMapping
from variantdataset import VariantDataSet


MONTHS = ["January", "February", "March", "April",
          "May", "June", "July", "August", "September", "October",
          "November", "December"]


class RainfallData(QObject):

    def __init__(self):
        super().__init__()
        self._columnCount = 0
        self._rowCount = 0
        self._years = []
        self._numericMonths = []
        self._proxy = VariantBarDataProxy()
        self._mapping = None
        self._dataSet = None
        self._series = QBar3DSeries()
        self._valueAxis = QValue3DAxis()
        self._rowAxis = QCategory3DAxis()
        self._colAxis = QCategory3DAxis()

        # In data file the months are in numeric format, so create custom list
        for i in range(1, 13):
            self._numericMonths.append(str(i))

        self._columnCount = len(self._numericMonths)

        self.updateYearsList(2010, 2022)

        # Create proxy and series
        self._proxy = VariantBarDataProxy()
        self._series = QBar3DSeries(self._proxy)

        self._series.setItemLabelFormat("%.1f mm")

        # Create the axes
        self._rowAxis = QCategory3DAxis(self)
        self._colAxis = QCategory3DAxis(self)
        self._valueAxis = QValue3DAxis(self)
        self._rowAxis.setAutoAdjustRange(True)
        self._colAxis.setAutoAdjustRange(True)
        self._valueAxis.setAutoAdjustRange(True)

        # Set axis labels and titles
        self._rowAxis.setTitle("Year")
        self._colAxis.setTitle("Month")
        self._valueAxis.setTitle("rainfall (mm)")
        self._valueAxis.setSegmentCount(5)
        self._rowAxis.setLabels(self._years)
        self._colAxis.setLabels(MONTHS)
        self._rowAxis.setTitleVisible(True)
        self._colAxis.setTitleVisible(True)
        self._valueAxis.setTitleVisible(True)

        self.addDataSet()

    def customSeries(self):
        return self._series

    def valueAxis(self):
        return self._valueAxis

    def rowAxis(self):
        return self._rowAxis

    def colAxis(self):
        return self._colAxis

    def updateYearsList(self, start, end):
        self._years.clear()
        for i in range(start, end + 1):
            self._years.append(str(i))
        self._rowCount = len(self._years)

    def addDataSet(self):
        # Create a new variant data set and data item list
        self._dataSet = VariantDataSet()
        itemList = []

        # Read data from a data file into the data item list
        file_path = Path(__file__).resolve().parent / "data" / "raindata.txt"
        dataFile = QFile(file_path)
        if dataFile.open(QIODevice.ReadOnly | QIODevice.Text):
            data = dataFile.readAll().data().decode("utf8")
            for line in data.split("\n"):
                if line and not line.startswith("#"):  # Ignore comments
                    tokens = line.split(",")
                    # Each line has three data items: Year, month, and
                    # rainfall value
                    if len(tokens) >= 3:
                        # Store year and month as strings, and rainfall value
                        # as double into a variant data item and add the item to
                        # the item list.
                        newItem = []
                        newItem.append(tokens[0].strip())
                        newItem.append(tokens[1].strip())
                        newItem.append(float(tokens[2].strip()))
                        itemList.append(newItem)
        else:
            print("Unable to open data file:", dataFile.fileName(),
                  file=sys.stderr)

        # Add items to the data set and set it to the proxy
        self._dataSet.addItems(itemList)
        self._proxy.setDataSet(self._dataSet)

        # Create new mapping for the data and set it to the proxy
        self._mapping = VariantBarDataMapping(0, 1, 2,
                                              self._years, self._numericMonths)
        self._proxy.setMapping(self._mapping)

# Copyright (C) 2023 The Qt Company Ltd.
# SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause
from __future__ import annotations

from enum import Enum
from math import sin, cos, degrees, sqrt

from PySide6.QtCore import QObject, Signal, Slot, Qt
from PySide6.QtGui import QVector2D, QVector3D
from PySide6.QtGraphs import (QAbstract3DSeries,
                              QScatterDataItem, QScatterDataProxy,
                              QScatter3DSeries, QtGraphs3D, QGraphsTheme)


NUMBER_OF_ITEMS = 10000
CURVE_DIVIDER = 7.5
LOWER_NUMBER_OF_ITEMS = 900
LOWER_CURVE_DIVIDER = 0.75


class InputState(Enum):
    StateNormal = 0
    StateDraggingX = 1
    StateDraggingZ = 2
    StateDraggingY = 3


class ScatterDataModifier(QObject):

    backgroundEnabledChanged = Signal(bool)
    gridVisibleChanged = Signal(bool)
    shadowQualityChanged = Signal(int)

    def __init__(self, scatter, parent):
        super().__init__(parent)

        self._graph = scatter

        self._style = QAbstract3DSeries.Mesh.Sphere
        self._smooth = True
        self._autoAdjust = True
        self._itemCount = LOWER_NUMBER_OF_ITEMS
        self._CURVE_DIVIDER = LOWER_CURVE_DIVIDER

        self._graph.activeTheme().setTheme(QGraphsTheme.Theme.MixSeries)
        self._graph.activeTheme().setColorScheme(QGraphsTheme.ColorScheme.Dark)
        self._graph.setShadowQuality(QtGraphs3D.ShadowQuality.SoftHigh)
        self._graph.setCameraPreset(QtGraphs3D.CameraPreset.Front)
        self._graph.setCameraZoomLevel(80.0)

        self._proxy = QScatterDataProxy()
        self._series = QScatter3DSeries(self._proxy)
        self._series.setItemLabelFormat("@xTitle: @xLabel @yTitle: @yLabel @zTitle: @zLabel")
        self._series.setMeshSmooth(self._smooth)
        self._graph.addSeries(self._series)
        self._preset = QtGraphs3D.CameraPreset.FrontLow.value

        self._state = InputState.StateNormal
        self._dragSpeedModifier = float(15)

        self._graph.selectedElementChanged.connect(self.handleElementSelected)
        self._graph.dragged.connect(self.handleAxisDragging)
        self._graph.setDragButton(Qt.LeftButton)

        self.addData()

    def addData(self):
        # Configure the axes according to the data
        self._graph.axisX().setTitle("X")
        self._graph.axisY().setTitle("Y")
        self._graph.axisZ().setTitle("Z")

        dataArray = []
        limit = int(sqrt(self._itemCount) / 2.0)
        for i in range(-limit, limit):
            for j in range(-limit, limit):
                x = float(i) + 0.5
                y = cos(degrees(float(i * j) / self._CURVE_DIVIDER))
                z = float(j) + 0.5
                dataArray.append(QScatterDataItem(QVector3D(x, y, z)))

        self._graph.seriesList()[0].dataProxy().resetArray(dataArray)

    @Slot(int)
    def changeStyle(self, style):
        comboBox = self.sender()
        if comboBox:
            self._style = comboBox.itemData(style)
            if self._graph.seriesList():
                self._graph.seriesList()[0].setMesh(self._style)

    @Slot(int)
    def setSmoothDots(self, smooth):
        self._smooth = smooth == Qt.CheckState.Checked
        series = self._graph.seriesList()[0]
        series.setMeshSmooth(self._smooth)

    @Slot(int)
    def changeTheme(self, theme):
        currentTheme = self._graph.activeTheme()
        currentTheme.setTheme(QGraphsTheme.Theme(theme))
        self.backgroundEnabledChanged.emit(currentTheme.isPlotAreaBackgroundVisible())
        self.gridVisibleChanged.emit(currentTheme.isGridVisible())

    @Slot()
    def changePresetCamera(self):
        self._graph.setCameraPreset(QtGraphs3D.CameraPreset(self._preset))

        self._preset += 1
        if self._preset > QtGraphs3D.CameraPreset.DirectlyBelow.value:
            self._preset = QtGraphs3D.CameraPreset.FrontLow.value

    @Slot(QtGraphs3D.ShadowQuality)
    def shadowQualityUpdatedByVisual(self, sq):
        self.shadowQualityChanged.emit(sq.value)

    @Slot(int)
    def changeShadowQuality(self, quality):
        sq = QtGraphs3D.ShadowQuality(quality)
        self._graph.setShadowQuality(sq)

    @Slot(int)
    def setPlotAreaBackgroundVisible(self, state):
        enabled = state == Qt.CheckState.Checked
        self._graph.activeTheme().setPlotAreaBackgroundVisible(enabled)

    @Slot(int)
    def setGridVisible(self, state):
        self._graph.activeTheme().setGridVisible(state == Qt.Checked.value)

    @Slot()
    def toggleItemCount(self):
        if self._itemCount == NUMBER_OF_ITEMS:
            self._itemCount = LOWER_NUMBER_OF_ITEMS
            self._CURVE_DIVIDER = LOWER_CURVE_DIVIDER
        else:
            self._itemCount = NUMBER_OF_ITEMS
            self._CURVE_DIVIDER = CURVE_DIVIDER

        self._graph.seriesList()[0].dataProxy().resetArray([])
        self.addData()

    @Slot()
    def toggleRanges(self):
        if not self._autoAdjust:
            self._graph.axisX().setAutoAdjustRange(True)
            self._graph.axisZ().setAutoAdjustRange(True)
            self._dragSpeedModifier = 1.5
            self._autoAdjust = True
        else:
            self._graph.axisX().setRange(-10.0, 10.0)
            self._graph.axisZ().setRange(-10.0, 10.0)
            self._dragSpeedModifier = float(15)
            self._autoAdjust = False

    @Slot(QtGraphs3D.ElementType)
    def handleElementSelected(self, type):
        if type == QtGraphs3D.ElementType.AxisXLabel:
            self._state = InputState.StateDraggingX
        elif type == QtGraphs3D.ElementType.AxisYLabel:
            self._state = InputState.StateDraggingY
        elif type == QtGraphs3D.ElementType.AxisZLabel:
            self._state = InputState.StateDraggingZ
        else:
            self._state = InputState.StateNormal

    @Slot(QVector2D)
    def handleAxisDragging(self, delta):
        distance = 0.0
        # Get scene orientation from active camera
        xRotation = self._graph.cameraXRotation()
        yRotation = self._graph.cameraYRotation()

        # Calculate directional drag multipliers based on rotation
        xMulX = cos(degrees(xRotation))
        xMulY = sin(degrees(xRotation))
        zMulX = sin(degrees(xRotation))
        zMulY = cos(degrees(xRotation))

        # Get the drag amount
        move = delta.toPoint()

        # Flip the effect of y movement if we're viewing from below
        yMove = -move.y() if yRotation < 0 else move.y()

        # Adjust axes
        if self._state == InputState.StateDraggingX:
            axis = self._graph.axisX()
            distance = (move.x() * xMulX - yMove * xMulY) / self._dragSpeedModifier
            axis.setRange(axis.min() - distance, axis.max() - distance)
        elif self._state == InputState.StateDraggingZ:
            axis = self._graph.axisZ()
            distance = (move.x() * zMulX + yMove * zMulY) / self._dragSpeedModifier
            axis.setRange(axis.min() + distance, axis.max() + distance)
        elif self._state == InputState.StateDraggingY:
            axis = self._graph.axisY()
            # No need to use adjusted y move here
            distance = move.y() / self._dragSpeedModifier
            axis.setRange(axis.min() + distance, axis.max() + distance)

# Copyright (C) 2023 The Qt Company Ltd.
# SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause
from __future__ import annotations

from PySide6.QtCore import QObject, QSize, Qt
from PySide6.QtWidgets import (QCheckBox, QComboBox, QCommandLinkButton,
                               QLabel, QHBoxLayout, QSizePolicy,
                               QVBoxLayout, QWidget, )
from PySide6.QtQuickWidgets import QQuickWidget
from PySide6.QtGraphs import QAbstract3DSeries
from PySide6.QtGraphsWidgets import Q3DScatterWidgetItem

from scatterdatamodifier import ScatterDataModifier


class ScatterGraph(QObject):

    def __init__(self, minimum_graph_size, maximum_graph_size):
        super().__init__()

        scatterGraph = Q3DScatterWidgetItem()
        scatterGraphWidget = QQuickWidget()
        scatterGraph.setWidget(scatterGraphWidget)
        self._scatterWidget = QWidget()
        hLayout = QHBoxLayout(self._scatterWidget)
        scatterGraphWidget.setMinimumSize(minimum_graph_size)
        scatterGraphWidget.setMaximumSize(maximum_graph_size)
        scatterGraphWidget.setSizePolicy(QSizePolicy.Expanding, QSizePolicy.Expanding)
        scatterGraphWidget.setFocusPolicy(Qt.StrongFocus)
        hLayout.addWidget(scatterGraphWidget, 1)

        vLayout = QVBoxLayout()
        hLayout.addLayout(vLayout)

        cameraButton = QCommandLinkButton(self._scatterWidget)
        cameraButton.setText("Change camera preset")
        cameraButton.setDescription("Switch between a number of preset camera positions")
        cameraButton.setIconSize(QSize(0, 0))

        itemCountButton = QCommandLinkButton(self._scatterWidget)
        itemCountButton.setText("Toggle item count")
        itemCountButton.setDescription("Switch between 900 and 10000 data points")
        itemCountButton.setIconSize(QSize(0, 0))

        rangeButton = QCommandLinkButton(self._scatterWidget)
        rangeButton.setText("Toggle axis ranges")
        rangeButton.setDescription("Switch between automatic axis ranges and preset ranges")
        rangeButton.setIconSize(QSize(0, 0))

        backgroundCheckBox = QCheckBox(self._scatterWidget)
        backgroundCheckBox.setText("Show graph background")
        backgroundCheckBox.setChecked(True)

        gridCheckBox = QCheckBox(self._scatterWidget)
        gridCheckBox.setText("Show grid")
        gridCheckBox.setChecked(True)

        smoothCheckBox = QCheckBox(self._scatterWidget)
        smoothCheckBox.setText("Smooth dots")
        smoothCheckBox.setChecked(True)

        itemStyleList = QComboBox(self._scatterWidget)
        itemStyleList.addItem("Sphere", QAbstract3DSeries.Mesh.Sphere)
        itemStyleList.addItem("Cube", QAbstract3DSeries.Mesh.Cube)
        itemStyleList.addItem("Minimal", QAbstract3DSeries.Mesh.Minimal)
        itemStyleList.addItem("Point", QAbstract3DSeries.Mesh.Point)
        itemStyleList.setCurrentIndex(0)

        themeList = QComboBox(self._scatterWidget)
        themeList.addItem("Qt")
        themeList.addItem("Primary Colors")
        themeList.addItem("Digia")
        themeList.addItem("Stone Moss")
        themeList.addItem("Army Blue")
        themeList.addItem("Retro")
        themeList.addItem("Ebony")
        themeList.addItem("Isabelle")
        themeList.setCurrentIndex(3)

        shadowQuality = QComboBox(self._scatterWidget)
        shadowQuality.addItem("None")
        shadowQuality.addItem("Low")
        shadowQuality.addItem("Medium")
        shadowQuality.addItem("High")
        shadowQuality.addItem("Low Soft")
        shadowQuality.addItem("Medium Soft")
        shadowQuality.addItem("High Soft")
        shadowQuality.setCurrentIndex(6)

        vLayout.addWidget(cameraButton)
        vLayout.addWidget(itemCountButton)
        vLayout.addWidget(rangeButton)
        vLayout.addWidget(backgroundCheckBox)
        vLayout.addWidget(gridCheckBox)
        vLayout.addWidget(smoothCheckBox)
        vLayout.addWidget(QLabel("Change dot style"))
        vLayout.addWidget(itemStyleList)
        vLayout.addWidget(QLabel("Change theme"))
        vLayout.addWidget(themeList)
        vLayout.addWidget(QLabel("Adjust shadow quality"))
        vLayout.addWidget(shadowQuality, 1, Qt.AlignTop)

        modifier = ScatterDataModifier(scatterGraph, self)

        cameraButton.clicked.connect(modifier.changePresetCamera)
        itemCountButton.clicked.connect(modifier.toggleItemCount)
        rangeButton.clicked.connect(modifier.toggleRanges)

        backgroundCheckBox.checkStateChanged.connect(modifier.setPlotAreaBackgroundVisible)
        gridCheckBox.checkStateChanged.connect(modifier.setGridVisible)
        smoothCheckBox.checkStateChanged.connect(modifier.setSmoothDots)

        modifier.backgroundEnabledChanged.connect(backgroundCheckBox.setChecked)
        modifier.gridVisibleChanged.connect(gridCheckBox.setChecked)
        itemStyleList.currentIndexChanged.connect(modifier.changeStyle)

        themeList.currentIndexChanged.connect(modifier.changeTheme)

        shadowQuality.currentIndexChanged.connect(modifier.changeShadowQuality)

        modifier.shadowQualityChanged.connect(shadowQuality.setCurrentIndex)
        scatterGraph.shadowQualityChanged.connect(modifier.shadowQualityUpdatedByVisual)

    def scatterWidget(self):
        return self._scatterWidget

# Copyright (C) 2023 The Qt Company Ltd.
# SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause
from __future__ import annotations

from surfacegraphmodifier import SurfaceGraphModifier

from PySide6.QtCore import QObject, Qt
from PySide6.QtGui import QBrush, QIcon, QLinearGradient, QPainter, QPixmap
from PySide6.QtWidgets import (QGroupBox, QCheckBox, QLabel, QHBoxLayout,
                               QPushButton, QRadioButton, QSizePolicy, QSlider,
                               QVBoxLayout, QWidget)
from PySide6.QtQuickWidgets import QQuickWidget
from PySide6.QtGraphsWidgets import Q3DSurfaceWidgetItem


def gradientBtoYPB_Pixmap():
    grBtoY = QLinearGradient(0, 0, 1, 100)
    grBtoY.setColorAt(1.0, Qt.black)
    grBtoY.setColorAt(0.67, Qt.blue)
    grBtoY.setColorAt(0.33, Qt.red)
    grBtoY.setColorAt(0.0, Qt.yellow)
    pm = QPixmap(24, 100)
    with QPainter(pm) as pmp:
        pmp.setBrush(QBrush(grBtoY))
        pmp.setPen(Qt.NoPen)
        pmp.drawRect(0, 0, 24, 100)
    return pm


def gradientGtoRPB_Pixmap():
    grGtoR = QLinearGradient(0, 0, 1, 100)
    grGtoR.setColorAt(1.0, Qt.darkGreen)
    grGtoR.setColorAt(0.5, Qt.yellow)
    grGtoR.setColorAt(0.2, Qt.red)
    grGtoR.setColorAt(0.0, Qt.darkRed)
    pm = QPixmap(24, 100)
    with QPainter(pm) as pmp:
        pmp.setBrush(QBrush(grGtoR))
        pmp.setPen(Qt.NoPen)
        pmp.drawRect(0, 0, 24, 100)
    return pm


def highlightPixmap():
    HEIGHT = 400
    WIDTH = 110
    BORDER = 10
    gr = QLinearGradient(0, 0, 1, HEIGHT - 2 * BORDER)
    gr.setColorAt(1.0, Qt.black)
    gr.setColorAt(0.8, Qt.darkGreen)
    gr.setColorAt(0.6, Qt.green)
    gr.setColorAt(0.4, Qt.yellow)
    gr.setColorAt(0.2, Qt.red)
    gr.setColorAt(0.0, Qt.darkRed)
    pmHighlight = QPixmap(WIDTH, HEIGHT)
    pmHighlight.fill(Qt.transparent)
    with QPainter(pmHighlight) as pmpHighlight:
        pmpHighlight.setBrush(QBrush(gr))
        pmpHighlight.setPen(Qt.NoPen)
        pmpHighlight.drawRect(BORDER, BORDER, 35, HEIGHT - 2 * BORDER)
        pmpHighlight.setPen(Qt.black)
        step = (HEIGHT - 2 * BORDER) / 5
        for i in range(0, 6):
            yPos = i * step + BORDER
            pmpHighlight.drawLine(BORDER, yPos, 55, yPos)
            HEIGHT = 550 - (i * 110)
            pmpHighlight.drawText(60, yPos + 2, f"{HEIGHT} m")
    return pmHighlight


class SurfaceGraph(QObject):

    def __init__(self, minimum_graph_size, maximum_graph_size):
        super().__init__()

        surfaceGraphWidget = QQuickWidget()
        surfaceGraph = Q3DSurfaceWidgetItem()
        surfaceGraph.setWidget(surfaceGraphWidget)
        self._surfaceWidget = QWidget()
        hLayout = QHBoxLayout(self._surfaceWidget)
        surfaceGraphWidget.setMinimumSize(minimum_graph_size)
        surfaceGraphWidget.setMaximumSize(maximum_graph_size)
        surfaceGraphWidget.setSizePolicy(QSizePolicy.Expanding, QSizePolicy.Expanding)
        surfaceGraphWidget.setFocusPolicy(Qt.StrongFocus)
        surfaceGraphWidget.setResizeMode(QQuickWidget.SizeRootObjectToView)
        hLayout.addWidget(surfaceGraphWidget, 1)
        vLayout = QVBoxLayout()
        hLayout.addLayout(vLayout)
        vLayout.setAlignment(Qt.AlignTop)
        # Create control widgets
        modelGroupBox = QGroupBox("Model")
        sqrtSinModelRB = QRadioButton(self._surfaceWidget)
        sqrtSinModelRB.setText("Sqrt and Sin")
        sqrtSinModelRB.setChecked(False)
        heightMapModelRB = QRadioButton(self._surfaceWidget)
        heightMapModelRB.setText("Multiseries\nHeight Map")
        heightMapModelRB.setChecked(False)
        texturedModelRB = QRadioButton(self._surfaceWidget)
        texturedModelRB.setText("Textured\nTopography")
        texturedModelRB.setChecked(False)
        modelVBox = QVBoxLayout()
        modelVBox.addWidget(sqrtSinModelRB)
        modelVBox.addWidget(heightMapModelRB)
        modelVBox.addWidget(texturedModelRB)
        modelGroupBox.setLayout(modelVBox)
        selectionGroupBox = QGroupBox("Graph Selection Mode")
        modeNoneRB = QRadioButton(self._surfaceWidget)
        modeNoneRB.setText("No selection")
        modeNoneRB.setChecked(False)
        modeItemRB = QRadioButton(self._surfaceWidget)
        modeItemRB.setText("Item")
        modeItemRB.setChecked(False)
        modeSliceRowRB = QRadioButton(self._surfaceWidget)
        modeSliceRowRB.setText("Row Slice")
        modeSliceRowRB.setChecked(False)
        modeSliceColumnRB = QRadioButton(self._surfaceWidget)
        modeSliceColumnRB.setText("Column Slice")
        modeSliceColumnRB.setChecked(False)
        selectionVBox = QVBoxLayout()
        selectionVBox.addWidget(modeNoneRB)
        selectionVBox.addWidget(modeItemRB)
        selectionVBox.addWidget(modeSliceRowRB)
        selectionVBox.addWidget(modeSliceColumnRB)
        selectionGroupBox.setLayout(selectionVBox)
        axisGroupBox = QGroupBox("Axis ranges")
        axisMinSliderX = QSlider(Qt.Orientation.Horizontal)
        axisMinSliderX.setMinimum(0)
        axisMinSliderX.setTickInterval(1)
        axisMinSliderX.setEnabled(True)
        axisMaxSliderX = QSlider(Qt.Orientation.Horizontal)
        axisMaxSliderX.setMinimum(1)
        axisMaxSliderX.setTickInterval(1)
        axisMaxSliderX.setEnabled(True)
        axisMinSliderZ = QSlider(Qt.Orientation.Horizontal)
        axisMinSliderZ.setMinimum(0)
        axisMinSliderZ.setTickInterval(1)
        axisMinSliderZ.setEnabled(True)
        axisMaxSliderZ = QSlider(Qt.Orientation.Horizontal)
        axisMaxSliderZ.setMinimum(1)
        axisMaxSliderZ.setTickInterval(1)
        axisMaxSliderZ.setEnabled(True)
        axisVBox = QVBoxLayout(axisGroupBox)
        axisVBox.addWidget(QLabel("Column range"))
        axisVBox.addWidget(axisMinSliderX)
        axisVBox.addWidget(axisMaxSliderX)
        axisVBox.addWidget(QLabel("Row range"))
        axisVBox.addWidget(axisMinSliderZ)
        axisVBox.addWidget(axisMaxSliderZ)
        # Mode-dependent controls
        # sqrt-sin
        colorGroupBox = QGroupBox("Custom gradient")

        pixmap = gradientBtoYPB_Pixmap()
        gradientBtoYPB = QPushButton(self._surfaceWidget)
        gradientBtoYPB.setIcon(QIcon(pixmap))
        gradientBtoYPB.setIconSize(pixmap.size())

        pixmap = gradientGtoRPB_Pixmap()
        gradientGtoRPB = QPushButton(self._surfaceWidget)
        gradientGtoRPB.setIcon(QIcon(pixmap))
        gradientGtoRPB.setIconSize(pixmap.size())

        colorHBox = QHBoxLayout(colorGroupBox)
        colorHBox.addWidget(gradientBtoYPB)
        colorHBox.addWidget(gradientGtoRPB)
        # Multiseries heightmap
        showGroupBox = QGroupBox("Show Object")
        showGroupBox.setVisible(False)
        checkboxShowOilRigOne = QCheckBox("Oil Rig 1")
        checkboxShowOilRigOne.setChecked(True)
        checkboxShowOilRigTwo = QCheckBox("Oil Rig 2")
        checkboxShowOilRigTwo.setChecked(True)
        checkboxShowRefinery = QCheckBox("Refinery")
        showVBox = QVBoxLayout()
        showVBox.addWidget(checkboxShowOilRigOne)
        showVBox.addWidget(checkboxShowOilRigTwo)
        showVBox.addWidget(checkboxShowRefinery)
        showGroupBox.setLayout(showVBox)
        visualsGroupBox = QGroupBox("Visuals")
        visualsGroupBox.setVisible(False)
        checkboxVisualsSeeThrough = QCheckBox("See-Through")
        checkboxHighlightOil = QCheckBox("Highlight Oil")
        checkboxShowShadows = QCheckBox("Shadows")
        checkboxShowShadows.setChecked(True)
        visualVBox = QVBoxLayout(visualsGroupBox)
        visualVBox.addWidget(checkboxVisualsSeeThrough)
        visualVBox.addWidget(checkboxHighlightOil)
        visualVBox.addWidget(checkboxShowShadows)
        labelSelection = QLabel("Selection:")
        labelSelection.setVisible(False)
        labelSelectedItem = QLabel("Nothing")
        labelSelectedItem.setVisible(False)
        # Textured topography heightmap
        enableTexture = QCheckBox("Surface texture")
        enableTexture.setVisible(False)

        label = QLabel(self._surfaceWidget)
        label.setPixmap(highlightPixmap())
        heightMapGroupBox = QGroupBox("Highlight color map")
        colorMapVBox = QVBoxLayout()
        colorMapVBox.addWidget(label)
        heightMapGroupBox.setLayout(colorMapVBox)
        heightMapGroupBox.setVisible(False)
        # Populate vertical layout
        # Common
        vLayout.addWidget(modelGroupBox)
        vLayout.addWidget(selectionGroupBox)
        vLayout.addWidget(axisGroupBox)
        # Sqrt Sin
        vLayout.addWidget(colorGroupBox)
        # Multiseries heightmap
        vLayout.addWidget(showGroupBox)
        vLayout.addWidget(visualsGroupBox)
        vLayout.addWidget(labelSelection)
        vLayout.addWidget(labelSelectedItem)
        # Textured topography
        vLayout.addWidget(heightMapGroupBox)
        vLayout.addWidget(enableTexture)
        # Create the controller
        modifier = SurfaceGraphModifier(surfaceGraph, labelSelectedItem, self)
        # Connect widget controls to controller
        heightMapModelRB.toggled.connect(modifier.enableHeightMapModel)
        sqrtSinModelRB.toggled.connect(modifier.enableSqrtSinModel)
        texturedModelRB.toggled.connect(modifier.enableTopographyModel)
        modeNoneRB.toggled.connect(modifier.toggleModeNone)
        modeItemRB.toggled.connect(modifier.toggleModeItem)
        modeSliceRowRB.toggled.connect(modifier.toggleModeSliceRow)
        modeSliceColumnRB.toggled.connect(modifier.toggleModeSliceColumn)
        axisMinSliderX.valueChanged.connect(modifier.adjustXMin)
        axisMaxSliderX.valueChanged.connect(modifier.adjustXMax)
        axisMinSliderZ.valueChanged.connect(modifier.adjustZMin)
        axisMaxSliderZ.valueChanged.connect(modifier.adjustZMax)
        # Mode dependent connections
        gradientBtoYPB.pressed.connect(modifier.setBlackToYellowGradient)
        gradientGtoRPB.pressed.connect(modifier.setGreenToRedGradient)
        checkboxShowOilRigOne.toggled.connect(modifier.toggleItemOne)
        checkboxShowOilRigTwo.toggled.connect(modifier.toggleItemTwo)
        checkboxShowRefinery.toggled.connect(modifier.toggleItemThree)
        checkboxVisualsSeeThrough.toggled.connect(modifier.toggleSeeThrough)
        checkboxHighlightOil.toggled.connect(modifier.toggleOilHighlight)
        checkboxShowShadows.toggled.connect(modifier.toggleShadows)
        enableTexture.toggled.connect(modifier.toggleSurfaceTexture)
        # Connections to disable features depending on mode
        sqrtSinModelRB.toggled.connect(colorGroupBox.setVisible)
        heightMapModelRB.toggled.connect(showGroupBox.setVisible)
        heightMapModelRB.toggled.connect(visualsGroupBox.setVisible)
        heightMapModelRB.toggled.connect(labelSelection.setVisible)
        heightMapModelRB.toggled.connect(labelSelectedItem.setVisible)
        texturedModelRB.toggled.connect(enableTexture.setVisible)
        texturedModelRB.toggled.connect(heightMapGroupBox.setVisible)
        modifier.setAxisMinSliderX(axisMinSliderX)
        modifier.setAxisMaxSliderX(axisMaxSliderX)
        modifier.setAxisMinSliderZ(axisMinSliderZ)
        modifier.setAxisMaxSliderZ(axisMaxSliderZ)
        sqrtSinModelRB.setChecked(True)
        modeItemRB.setChecked(True)
        enableTexture.setChecked(True)

    def surfaceWidget(self):
        return self._surfaceWidget
