一维筛选最优传输

这个例子说明了Screenkhorn [26]的计算。

[26] Alaya M. Z., Bérar M., Gasso G., Rakotomamonjy A. (2019). 筛选Sinkhorn算法用于正则化最优传输, 神经信息处理系统进展 33 (NeurIPS).

# Author: Mokhtar Z. Alaya <mokhtarzahdi.alaya@gmail.com>
#
# License: MIT License

import numpy as np
import matplotlib.pylab as pl
import ot.plot
from ot.datasets import make_1D_gauss as gauss
from ot.bregman import screenkhorn

生成数据

n = 100  # nb bins

# bin positions
x = np.arange(n, dtype=np.float64)

# Gaussian distributions
a = gauss(n, m=20, s=5)  # m= mean, s= std
b = gauss(n, m=60, s=10)

# loss matrix
M = ot.dist(x.reshape((n, 1)), x.reshape((n, 1)))
M /= M.max()

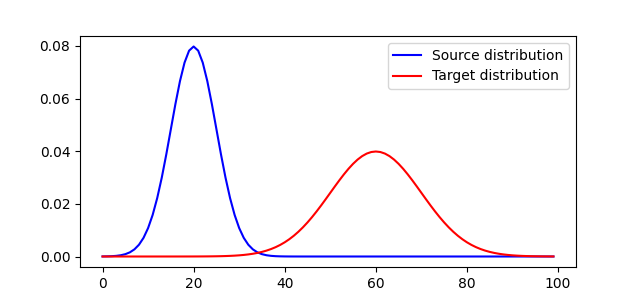

绘制分布和损失矩阵

pl.figure(1, figsize=(6.4, 3))
pl.plot(x, a, 'b', label='Source distribution')
pl.plot(x, b, 'r', label='Target distribution')
pl.legend()

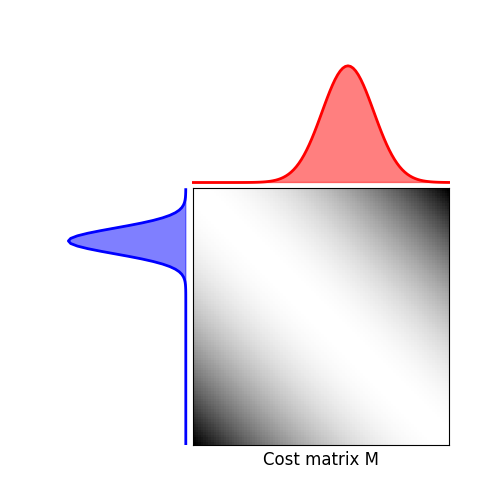

# plot distributions and loss matrix

pl.figure(2, figsize=(5, 5))
ot.plot.plot1D_mat(a, b, M, 'Cost matrix M')

•
•

解决Screenkhorn

# Screenkhorn
lambd = 2e-03  # entropy parameter
ns_budget = 30  # budget number of points to be keeped in the source distribution
nt_budget = 30  # budget number of points to be keeped in the target distribution

G_screen = screenkhorn(a, b, M, lambd, ns_budget, nt_budget, uniform=False, restricted=True, verbose=True)

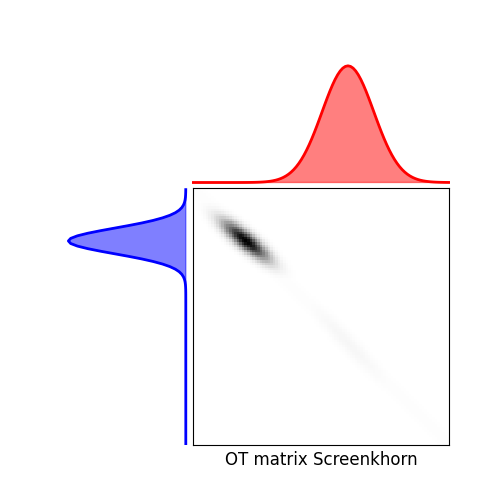

pl.figure(4, figsize=(5, 5))
ot.plot.plot1D_mat(a, b, G_screen, 'OT matrix Screenkhorn')
pl.show()

/home/circleci/project/ot/bregman.py:3318: UserWarning: Bottleneck module is not installed. Install it from https://pypi.org/project/Bottleneck/ for better performance.
  warnings.warn(
epsilon = 0.020986042861303855

kappa = 3.7476531411890917

Cardinality of selected points: |Isel| = 30      |Jsel| = 30
