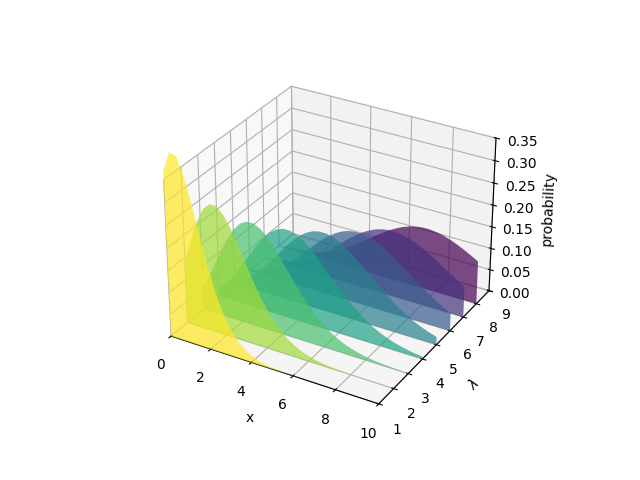

填充在3D折线图下

演示如何创建填充折线图下方空间的图形。在这个例子中，图形是半透明的，产生了一种类似'锯齿状彩色玻璃'的效果。

import math

import matplotlib.pyplot as plt
import numpy as np

gamma = np.vectorize(math.gamma)
N = 31
x = np.linspace(0., 10., N)
lambdas = range(1, 9)

ax = plt.figure().add_subplot(projection='3d')

facecolors = plt.colormaps['viridis_r'](np.linspace(0, 1, len(lambdas)))

for i, l in enumerate(lambdas):
    # Note fill_between can take coordinates as length N vectors, or scalars
    ax.fill_between(x, l, l**x * np.exp(-l) / gamma(x + 1),
                    x, l, 0,
                    facecolors=facecolors[i], alpha=.7)

ax.set(xlim=(0, 10), ylim=(1, 9), zlim=(0, 0.35),
       xlabel='x', ylabel=r'$\lambda$', zlabel='probability')

plt.show()
