Dask

本页介绍如何使用Dask（一个灵活、开源的Python并行计算库）来分布式执行构成Kedro管道的节点。

Dask 提供了默认的单机调度器和更高级的分布式调度器。较新的 dask.distributed 调度器通常是更好的选择，即使在单工作站上也是如此，这也是我们部署指南的重点。有关在不同硬件上设置 Dask 的各种方法，请参阅 官方 Dask 操作指南。

为何要使用Dask？

Dask.distributed 是一个用于Python分布式计算的轻量级库。它补充了现有的PyData分析栈，后者构成了许多Kedro管道的基础。它也是纯Python编写的，这使得安装更加简便并简化了调试过程。关于为什么人们选择采用Dask，特别是dask.distributed的更多动机，请分别参阅Why Dask?和the dask.distributed documentation。

先决条件

除了Kedro流水线已有的要求外，唯一需要额外满足的条件是安装dask.distributed。要查看完整的安装说明（包括如何设置Python虚拟环境），请参阅我们的入门指南。

如何使用Dask分发你的Kedro管道

创建自定义运行器

在您的src文件夹中创建一个新的Python包runner，即kedro_tutorial/src/kedro_tutorial/runner/。确保该位置存在__init__.py文件，并添加另一个名为dask_runner.py的文件，该文件将包含您的自定义运行器DaskRunner的实现。DaskRunner将异步提交和监控任务，并显示执行过程中发生的任何错误。

确保runner文件夹中的__init__.py文件包含以下导入和声明：

from .dask_runner import DaskRunner

__all__ = ["DaskRunner"]

将以下脚本内容复制到 dask_runner.py 文件中：

"""``DaskRunner`` is an ``AbstractRunner`` implementation. It can be
used to distribute execution of ``Node``s in the ``Pipeline`` across
a Dask cluster, taking into account the inter-``Node`` dependencies.
"""

from collections import Counter
from itertools import chain
from typing import Any

from distributed import Client, as_completed, worker_client
from kedro.framework.hooks.manager import (
    _create_hook_manager,
    _register_hooks,
    _register_hooks_entry_points,
)
from kedro.framework.project import settings
from kedro.io import AbstractDataset, CatalogProtocol
from kedro.pipeline import Pipeline
from kedro.pipeline.node import Node
from kedro.runner import AbstractRunner, run_node
from pluggy import PluginManager


class _DaskDataset(AbstractDataset):
    """``_DaskDataset`` publishes/gets named datasets to/from the Dask
    scheduler."""

    def __init__(self, name: str):
        self._name = name

    def _load(self) -> Any:
        try:
            with worker_client() as client:
                return client.get_dataset(self._name)
        except ValueError:
            # Upon successfully executing the pipeline, the runner loads
            # free outputs on the scheduler (as opposed to on a worker).
            Client.current().get_dataset(self._name)

    def _save(self, data: Any) -> None:
        with worker_client() as client:
            client.publish_dataset(data, name=self._name, override=True)

    def _exists(self) -> bool:
        return self._name in Client.current().list_datasets()

    def _release(self) -> None:
        Client.current().unpublish_dataset(self._name)

    def _describe(self) -> dict[str, Any]:
        return dict(name=self._name)


class DaskRunner(AbstractRunner):
    """``DaskRunner`` is an ``AbstractRunner`` implementation. It can be
    used to distribute execution of ``Node``s in the ``Pipeline`` across
    a Dask cluster, taking into account the inter-``Node`` dependencies.
    """

    def __init__(self, client_args: dict[str, Any] = {}, is_async: bool = False):
        """Instantiates the runner by creating a ``distributed.Client``.

        Args:
            client_args: Arguments to pass to the ``distributed.Client``
                constructor.
            is_async: If True, the node inputs and outputs are loaded and saved
                asynchronously with threads. Defaults to False.
        """
        super().__init__(is_async=is_async)
        Client(**client_args)

    def __del__(self):
        Client.current().close()

    def create_default_dataset(self, ds_name: str) -> _DaskDataset:
        """Factory method for creating the default dataset for the runner.

        Args:
            ds_name: Name of the missing dataset.

        Returns:
            An instance of ``_DaskDataset`` to be used for all
            unregistered datasets.
        """
        return _DaskDataset(ds_name)

    @staticmethod
    def _run_node(
        node: Node,
        catalog: CatalogProtocol,
        is_async: bool = False,
        session_id: str | None = None,
        *dependencies: Node,
    ) -> Node:
        """Run a single `Node` with inputs from and outputs to the `catalog`.

        Wraps ``run_node`` to accept the set of ``Node``s that this node
        depends on. When ``dependencies`` are futures, Dask ensures that
        the upstream node futures are completed before running ``node``.

        A ``PluginManager`` instance is created on each worker because the
        ``PluginManager`` can't be serialised.

        Args:
            node: The ``Node`` to run.
            catalog: An implemented instance of ``CatalogProtocol`` from which to fetch data.
            is_async: If True, the node inputs and outputs are loaded and saved
                asynchronously with threads. Defaults to False.
            session_id: The session id of the pipeline run.
            dependencies: The upstream ``Node``s to allow Dask to handle
                dependency tracking. Their values are not actually used.

        Returns:
            The node argument.
        """
        hook_manager = _create_hook_manager()
        _register_hooks(hook_manager, settings.HOOKS)
        _register_hooks_entry_points(hook_manager, settings.DISABLE_HOOKS_FOR_PLUGINS)

        return run_node(node, catalog, hook_manager, is_async, session_id)

    def _run(
        self,
        pipeline: Pipeline,
        catalog: CatalogProtocol,
        hook_manager: PluginManager | None = None,
        session_id: str | None = None,
    ) -> None:
        """Implementation of the abstract interface for running the pipelines.

        Args:
            pipeline: The ``Pipeline`` to run.
            catalog: An implemented instance of ``CatalogProtocol`` from which to fetch data.
            hook_manager: The ``PluginManager`` to activate hooks.
            session_id: The id of the session.
        """

        nodes = pipeline.nodes
        load_counts = Counter(chain.from_iterable(n.inputs for n in nodes))
        node_dependencies = pipeline.node_dependencies
        node_futures = {}

        client = Client.current()
        for node in nodes:
            dependencies = (
                node_futures[dependency] for dependency in node_dependencies[node]
            )
            node_futures[node] = client.submit(
                DaskRunner._run_node,
                node,
                catalog,
                self._is_async,
                session_id,
                *dependencies,
            )

        for i, (_, node) in enumerate(
            as_completed(node_futures.values(), with_results=True)
        ):
            self._logger.info("Completed node: %s", node.name)
            self._logger.info("Completed %d out of %d tasks", i + 1, len(nodes))

            # Decrement load counts, and release any datasets we
            # have finished with. This is particularly important
            # for the shared, default datasets we created above.
            for dataset in node.inputs:
                load_counts[dataset] -= 1
                if load_counts[dataset] < 1 and dataset not in pipeline.inputs():
                    catalog.release(dataset)
            for dataset in node.outputs:
                if load_counts[dataset] < 1 and dataset not in pipeline.outputs():
                    catalog.release(dataset)

    def run_only_missing(
        self, pipeline: Pipeline, catalog: CatalogProtocol, hook_manager: PluginManager
    ) -> dict[str, Any]:
        """Run only the missing outputs from the ``Pipeline`` using the
        datasets provided by ``catalog``, and save results back to the
        same objects.

        Args:
            pipeline: The ``Pipeline`` to run.
            catalog: An implemented instance of ``CatalogProtocol`` from which to fetch data.
            hook_manager: The ``PluginManager`` to activate hooks.
        Raises:
            ValueError: Raised when ``Pipeline`` inputs cannot be
                satisfied.

        Returns:
            Any node outputs that cannot be processed by the
            catalog. These are returned in a dictionary, where
            the keys are defined by the node outputs.
        """
        free_outputs = pipeline.outputs() - set(catalog.list())
        missing = {ds for ds in catalog.list() if not catalog.exists(ds)}
        to_build = free_outputs | missing
        to_rerun = pipeline.only_nodes_with_outputs(*to_build) + pipeline.from_inputs(
            *to_build
        )

        # We also need any missing datasets that are required to run the
        # `to_rerun` pipeline, including any chains of missing datasets.
        unregistered_ds = pipeline.datasets() - set(catalog.list())
        # Some of the unregistered datasets could have been published to
        # the scheduler in a previous run, so we need not recreate them.
        missing_unregistered_ds = {
            ds_name
            for ds_name in unregistered_ds
            if not self.create_default_dataset(ds_name).exists()
        }
        output_to_unregistered = pipeline.only_nodes_with_outputs(
            *missing_unregistered_ds
        )
        input_from_unregistered = to_rerun.inputs() & missing_unregistered_ds
        to_rerun += output_to_unregistered.to_outputs(*input_from_unregistered)

        # We need to add any previously-published, unregistered datasets
        # to the catalog passed to the `run` method, so that it does not
        # think that the `to_rerun` pipeline's inputs are not satisfied.
        catalog = catalog.shallow_copy()
        for ds_name in unregistered_ds - missing_unregistered_ds:
            catalog.add(ds_name, self.create_default_dataset(ds_name))

        return self.run(to_rerun, catalog)

    def _get_executor(self, max_workers):
        # Run sequentially
        return None

更新CLI实现

快完成了！在使用新运行器之前，您需要在与settings.py同级目录下添加一个cli.py文件，使用我们提供的模板。请更新新建的cli.py文件中的run()函数，确保运行器类被正确实例化：

def run(tag, env, ...):
    """Run the pipeline."""
    runner = runner or "SequentialRunner"

    tags = tuple(tags)
    node_names = tuple(node_names)

    with KedroSession.create(env=env, extra_params=params) as session:
        context = session.load_context()
        runner_instance = _instantiate_runner(runner, is_async, context)
        session.run(
            tags=tags,
            runner=runner_instance,
            node_names=node_names,
            from_nodes=from_nodes,
            to_nodes=to_nodes,
            from_inputs=from_inputs,
            to_outputs=to_outputs,
            load_versions=load_versions,
            pipeline_name=pipeline,
        )

其中辅助函数 _instantiate_runner() 的实现如下：

def _instantiate_runner(runner, is_async, project_context):
    runner_class = load_obj(runner, "kedro.runner")
    runner_kwargs = dict(is_async=is_async)

    if runner.endswith("DaskRunner"):
        client_args = project_context.params.get("dask_client") or {}
        runner_kwargs.update(client_args=client_args)

    return runner_class(**runner_kwargs)

部署

你现在可以触发运行了。无需任何额外配置，底层的Dask Client会在后台创建一个LocalCluster并与之连接：

kedro run --runner=kedro_tutorial.runner.DaskRunner

设置Dask及相关配置

要连接到现有的Dask集群，您需要设置运行器将使用的Dask相关配置。创建conf/dask/目录，并在其中添加一个包含以下键的parameters.yml文件：

dask_client:
  address: 127.0.0.1:8786

接下来，在本地计算机上设置调度器和工作进程：

$ dask scheduler --host 127.0.0.1 --port 8786
Scheduler started at 127.0.0.1:8786

$ PYTHONPATH=$PWD/src dask worker 127.0.0.1:8786
$ PYTHONPATH=$PWD/src dask worker 127.0.0.1:8786
$ PYTHONPATH=$PWD/src dask worker 127.0.0.1:8786

注意

上述代码片段假设每个工作进程都是从Kedro项目的根目录启动的，且运行在已安装所有必需依赖项的Python环境中。

如果您正在使用 pip，可能需要通过以下命令安装您的Kedro项目：

pip install -e .

您已准备好再次触发运行。执行以下命令：

kedro run --runner=kedro_tutorial.runner.DaskRunner

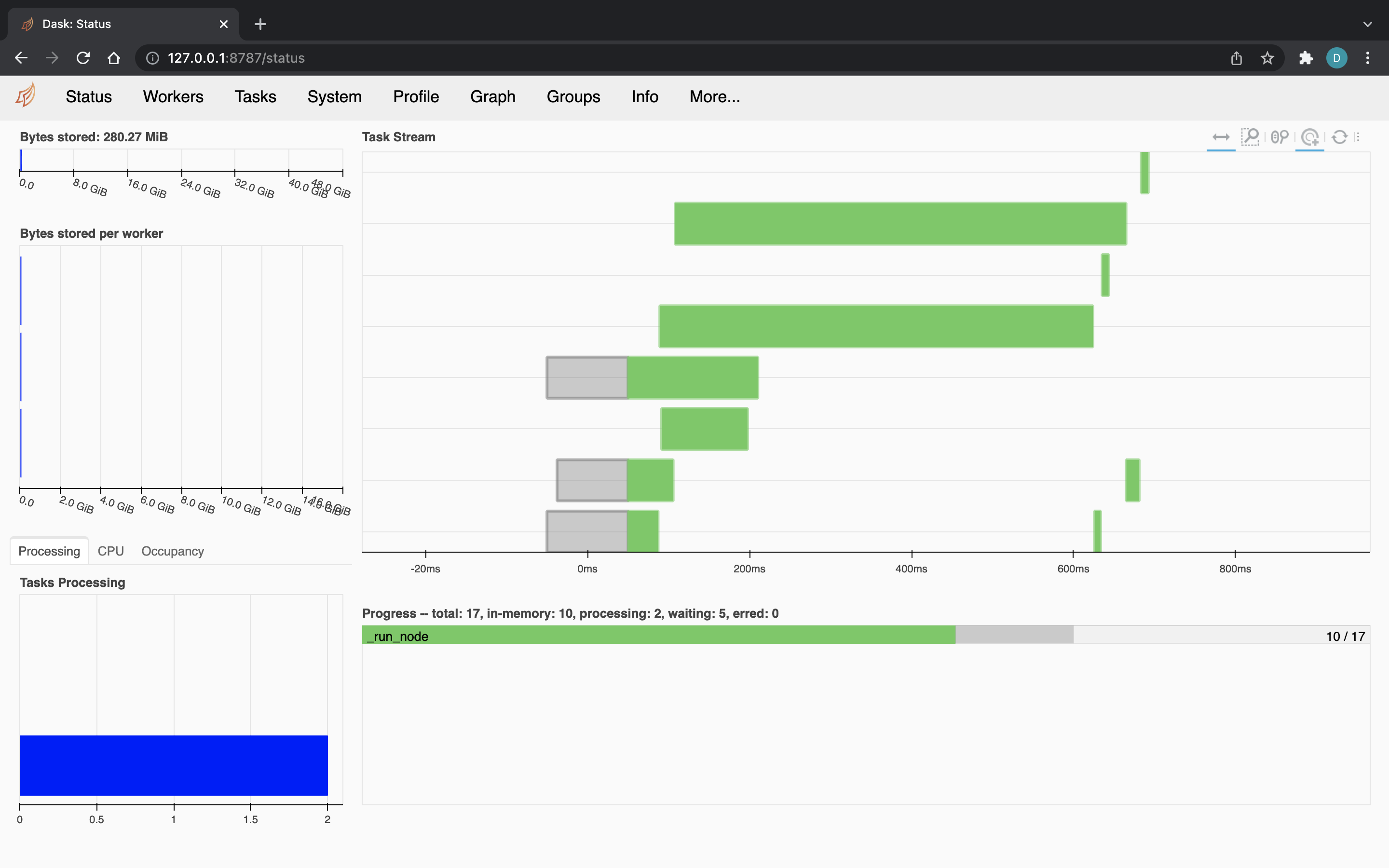

你应该开始看到任务出现在Dask的诊断仪表板上：
