线连接类型

限定名称: manim.constants.LineJointType

class LineJointType(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)[source]

基础：Enum

可用的线条连接类型集合。

请参见下面的示例，以直观地展示不同类型的关节。

示例

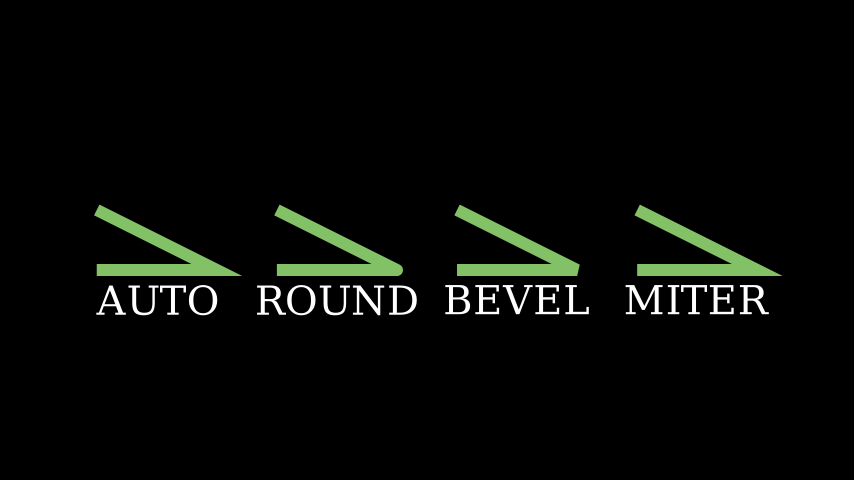

示例：LineJointVariants

../_images/LineJointVariants-1.png
from manim import *

class LineJointVariants(Scene):
    def construct(self):
        mob = VMobject(stroke_width=20, color=GREEN).set_points_as_corners([
            np.array([-2, 0, 0]),
            np.array([0, 0, 0]),
            np.array([-2, 1, 0]),
        ])
        lines = VGroup(*[mob.copy() for _ in range(len(LineJointType))])
        for line, joint_type in zip(lines, LineJointType):
            line.joint_type = joint_type

        lines.arrange(RIGHT, buff=1)
        self.add(lines)
        for line in lines:
            label = Text(line.joint_type.name).next_to(line, DOWN)
            self.add(label)

class LineJointVariants(Scene):
    def construct(self):
        mob = VMobject(stroke_width=20, color=GREEN).set_points_as_corners([
            np.array([-2, 0, 0]),
            np.array([0, 0, 0]),
            np.array([-2, 1, 0]),
        ])
        lines = VGroup(*[mob.copy() for _ in range(len(LineJointType))])
        for line, joint_type in zip(lines, LineJointType):
            line.joint_type = joint_type

        lines.arrange(RIGHT, buff=1)
        self.add(lines)
        for line in lines:
            label = Text(line.joint_type.name).next_to(line, DOWN)
            self.add(label)

属性

AUTO

ROUND

BEVEL

MITER
