样本空间¶

限定名称: manim.mobject.graphing.probability.SampleSpace

class SampleSpace(height=3, width=3, fill_color=ManimColor('#444444'), fill_opacity=1, stroke_width=0.5, stroke_color=ManimColor('#BBBBBB'), default_label_scale_val=1)[来源]¶

基础类: Rectangle

一个表示二维矩形采样空间的mobject。

示例

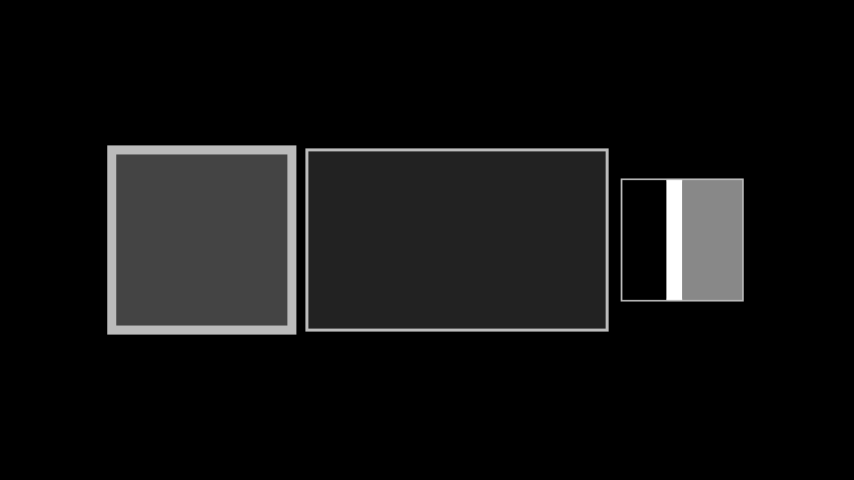

示例：示例样本空间 ¶

from manim import *

class ExampleSampleSpace(Scene):
    def construct(self):
        poly1 = SampleSpace(stroke_width=15, fill_opacity=1)
        poly2 = SampleSpace(width=5, height=3, stroke_width=5, fill_opacity=0.5)
        poly3 = SampleSpace(width=2, height=2, stroke_width=5, fill_opacity=0.1)
        poly3.divide_vertically(p_list=np.array([0.37, 0.13, 0.5]), colors=[BLACK, WHITE, GRAY], vect=RIGHT)
        poly_group = VGroup(poly1, poly2, poly3).arrange()
        self.add(poly_group)

class ExampleSampleSpace(Scene):
    def construct(self):
        poly1 = SampleSpace(stroke_width=15, fill_opacity=1)
        poly2 = SampleSpace(width=5, height=3, stroke_width=5, fill_opacity=0.5)
        poly3 = SampleSpace(width=2, height=2, stroke_width=5, fill_opacity=0.1)
        poly3.divide_vertically(p_list=np.array([0.37, 0.13, 0.5]), colors=[BLACK, WHITE, GRAY], vect=RIGHT)
        poly_group = VGroup(poly1, poly2, poly3).arrange()
        self.add(poly_group)

方法

`add_braces_and_labels`
`add_label`
`add_title`
`complete_p_list`
`divide_horizontally`
`divide_vertically`
`get_bottom_braces_and_labels`
`get_division_along_dimension`
`get_horizontal_division`
`get_side_braces_and_labels`
`get_subdivision_braces_and_labels`
`get_top_braces_and_labels`
`get_vertical_division`

属性

`animate`	用于动画化`self`的任何方法的应用。
`animation_overrides`
`color`
`depth`	mobject的深度。
`fill_color`	如果有多种颜色（用于渐变），则返回第一个颜色
`height`	mobject的高度。
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	mobject的宽度。

_original__init__(height=3, width=3, fill_color=ManimColor('#444444'), fill_opacity=1, stroke_width=0.5, stroke_color=ManimColor('#BBBBBB'), default_label_scale_val=1)¶: 初始化自身。有关准确的签名，请参阅 help(type(self))。
